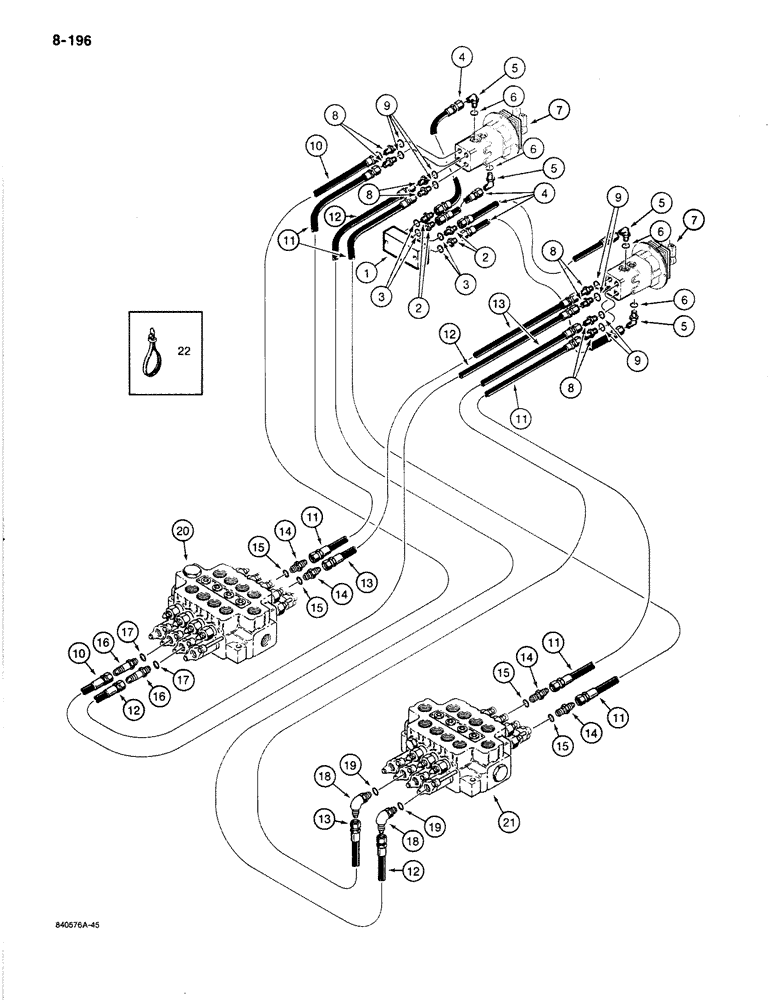

Запчасти Case 1080B (8-196) - HYDRAULIC CIRCUIT FOR CONTROLS, FOOT CONTROL VALVE LINES (08) - HYDRAULICS

1

S236862

BLOCK

MANIFOLD - control circuits, see Fig. 8-194 for manifold lines and attaching hardware

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, manifold ports, Incl. Ref. 3

4шт.

4

S241217

HOSE ASSY.

HOSE - 21" (533 mm) long, to foot control valves

4шт.

5

218-515

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

- 90 degree, at foot control valves, Includes: Ref. 6

4шт.

7

REF

INSTRUCTION

VALVE ASSEMBLY - control, foot pedal, parts list Figure 8-243

2шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, control valve ports, Incl. Ref. 9

8шт.

10

S241219

HOSE ASSY.

HOSE - 50" (1270 mm) long, to main control valves

1шт.

11

S241221

HOSE ASSY.

HOSE - 80" (2032 mm) long, to main control valves

3шт.

12

S241222

HOSE ASSY.

HOSE - 100" (2540 mm) long, to main control valves

2шт.

13

S241220

HOSE ASSY.

HOSE - 70" (1778 mm) long, to main control valves

2шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, main control valves, short, Incl. Ref. 15

4шт.

16

218-5029

HYD CONNECTOR,9/16" - 18 Male JIC x 9/16" - 18 Male ORB

CONNECTOR, HYD, , Adapter, main control valves, long, Includes: Ref. 17 9/16"-18, 37º x 9/16"-18, Pipe

2шт.

18

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, main control valve, Includes: Ref. 19

2шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - control, outside, see Figures 8-231 and 8-233 for correct valve and component parts

1шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - control, inside, see Figure 8-226 for correct valve and component part

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.
