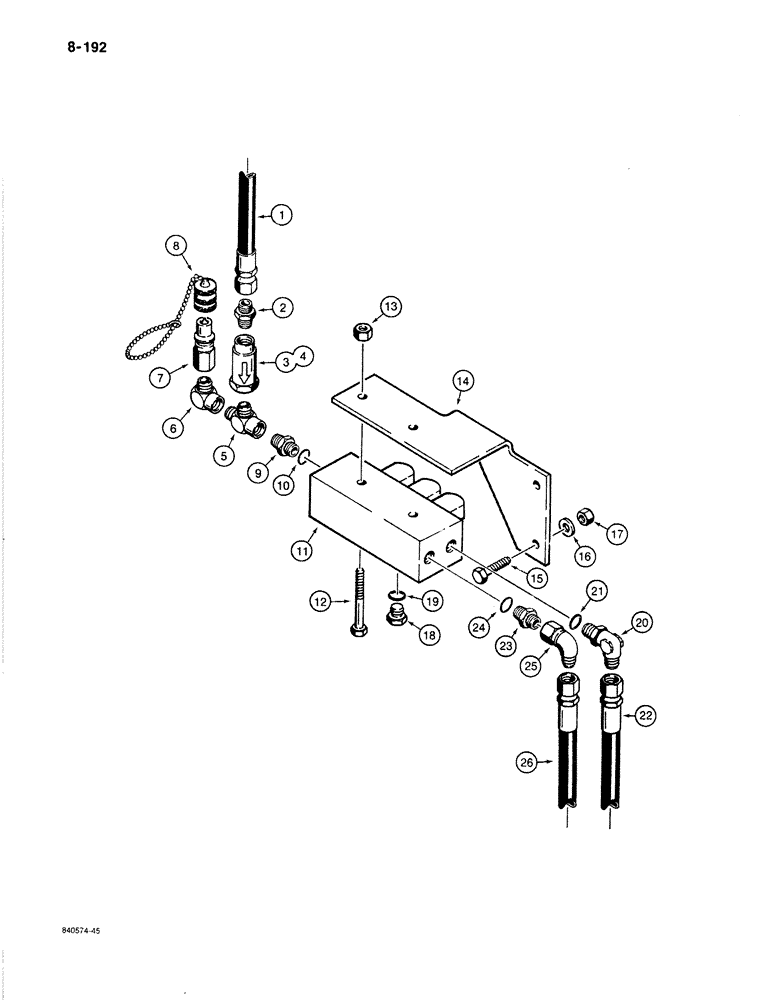

Запчасти Case 1080B (8-192) - HYDRAULIC CIRCUIT FOR CONTROLS, SOLENOID CONTROL VALVE CONNECTING LINES (08) - HYDRAULICS

1

S241222

HOSE ASSY.

HOSE - 100" (2540 mm) long, from pump, if used, see Figure 8-188 for hydraulic pump and lines

1шт.

1

S241220

HOSE ASSY.

HOSE - 70" (1778 mm) long, from pump, if used, see Figure 8-190 for hydraulic pump and lines

1шт.

2

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, hose to screen

1шт.

3

S242548

FILTER ASSY

FILTER - solenoid control valve, includes replacement element, Includes: Ref. 4

1шт.

4

N9426

ELEMENT

- filter screen, 25 micron

1шт.

5

217-1175

TEE,1/8"-27 Male x 1/8"-27 Female Run

- filter outlet

1шт.

6

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

1шт.

7

S206607

DISC

ADAPTER - test, quick disconnect

1шт.

8

S206608

CAP

- dust, with chain

1шт.

9

218-5443

FITTING

ADAPTER - straight, inlet port, Includes: Ref. 10

1шт.

11

S516951

VALVE

ASSEMBLY - control, solenoid, parts list Figure 8-244

1шт.

12

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" 18 NC, plated

2шт.

14

S516661

BRACKET

- valve mounting

1шт.

15

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

16

195-525

WASHER,3/8", SAE

- flat, 3/8", plate

2шт.

17

131-217

LOCK NUT

NUT - hex, self-locking, 3/8" -16 NC, plated

2шт.

18

76349

PLUG,9/16" - 18 ORB

Bottom port, single speed models only, Incl. Ref. 19 Hex Hd, 9/16"-18 ORB

1шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, manifold hose, Includes: Ref. 21

1шт.

22

S241220

HOSE ASSY.

HOSE - 70" (1778 mm) long, solenoid control valve to manifold, see Figure 8-194 for continuation of circuit

1шт.

23

218-5360

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, return port, Includes: Ref. 24

1шт.

25

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Return hose 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

1шт.

26

S8581

HOSE ASSY.

HOSE - 48" (1219 mm) long, to return tube at reservoir, see Figure 8-184 for return tube

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Plug

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.
