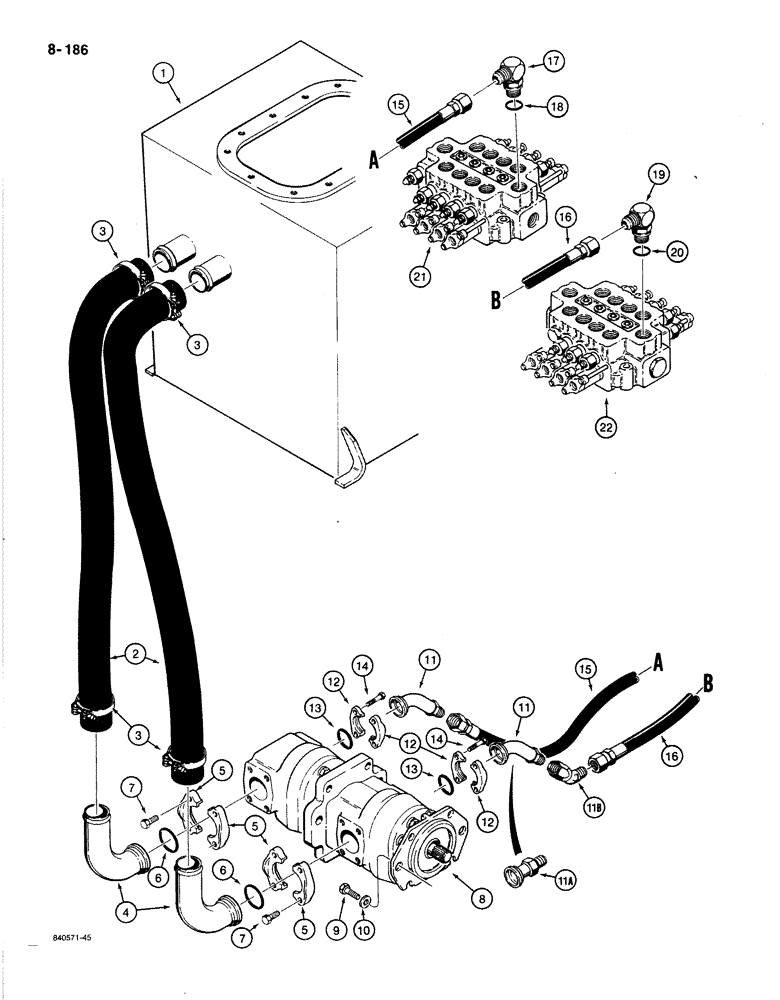

Запчасти Case 1080B (8-186) - MAIN HYDRAULIC PUMP LINES (08) - HYDRAULICS

1

S618054

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil, parts list Figure 8-180

1шт.

2

REF

INSTRUCTION

HOSE - 2" (51 mm) ID x 32" (813 mm) long, models with Case engine, 2" (51 mm) ID x 37" (940 mm) long, models with Detroit Diesel engine, to pump, cut from S120587, see below

2шт.

3

S85430

CLAMP

- hose

4шт.

4

S238798

TUBE,2" OD x 6.8, 4.7" L

- to pump

2шт.

5

A14141

FLANGE

- split, tube

4шт.

6

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- tube

2шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

8

REF

INSTRUCTION

PUMP ASSEMBLY - main hydraulic, see Figures 8-219 - 8-223 for correct pump and component parts

1шт.

9

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

- hex head, 5/8" -11 NC x 1-1/4", plated

2шт.

10

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 5/8", hardened

2шт.

11

S235919

ADAPTER

TUBE - from rear port, all models and from front port on models with Case engine

1-2шт.

11a

S26936

TUBE

- from front port on models with Detroit Diesel engine

1шт.

11b

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree, tube to hose, models with Case engine only

1шт.

12

A12301

CLAMP,Half

- split, tube

4шт.

13

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- tube

2шт.

14

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

8шт.

15

S235936

HOSE

- 49" (1245 mm) long, to outside control valve

1шт.

16

S8628

HOSE

- 36" (914 mm) long, to inside control valve

1шт.

17

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

at outside valve, Incl. Ref. 18 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

19

S113093

ELBOW

- 90 degree, tapped for power sensing line, see figure 8-208, Includes: Ref. 20

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - control, outside, see Figures 8-231 and 8-233 for correct valve and components parts

1шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY - control, inside, see Figures 8-227 and 8-229 for correct valve and component parts

1шт.

S120587

HYDRAULIC HOSE,2.00" ID x 60.00"

- Bulk length, Use to make item 2 2.00" ID x 60.00"

1шт.
