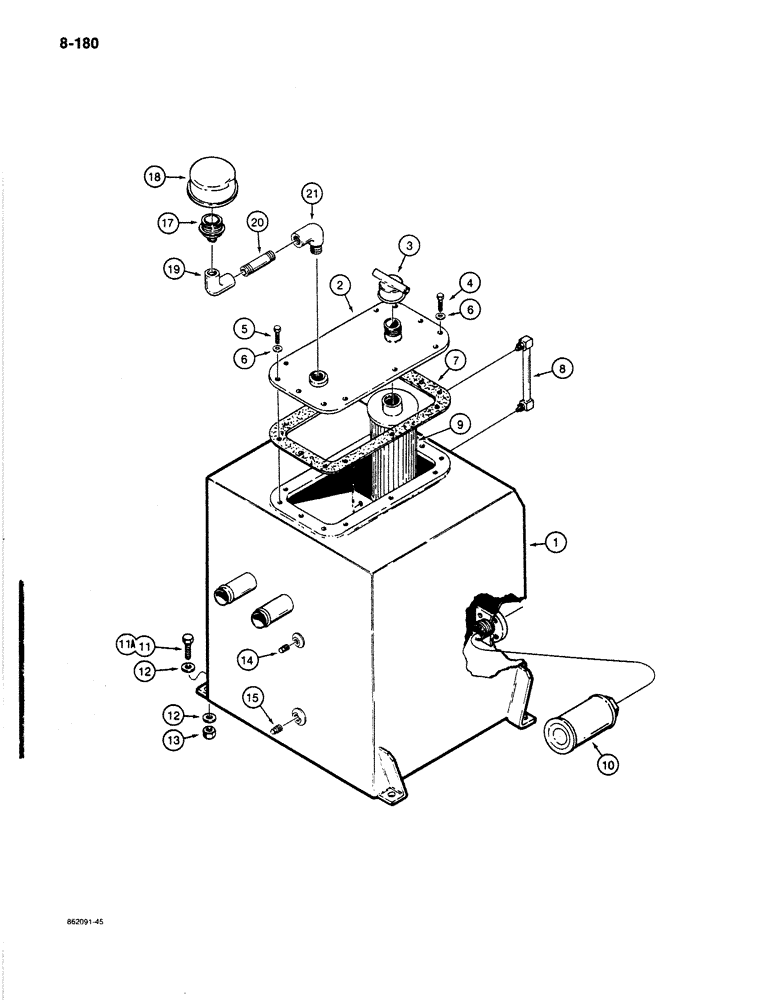

Запчасти Case 1080B (8-180) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

S618054

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic, excavator, Includes: Refs. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic, excavator

1шт.

2

S236359

COVER

- reservoir

1шт.

3

S230688

CAP

- filler

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

5

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

- hex head, 5/16" - 18 NC x 3/4", plated

8шт.

6

195-103

WASHER,5/16"

- flat, , plated 5/16"

12шт.

7

S230621

GASKET

- cover

1шт.

8

S107269

GAUGE

- oil lever

1шт.

9

S514984

FILTER, ENGINE OIL

SCREEN - oil filter

1шт.

10

S117479

FILTER CARTRIDGE

DIFFUSER - return ports

2шт.

11

26-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex head, 3/8" - 16 x 1-3/4", plated

1шт.

11a

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex head, 3/8" - 16 NC x 1-1/2" x 1-1/2", plated

3шт.

12

195-104

WASHER,3/8"

- flat, 7/16", used as shims

1шт.

13

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

14

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket head, 3/8" NPT

1шт.

15

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2" NPT

1шт.

17

S115101

ADAPTER

- breather

1шт.

18

S115102

AIR CLEANER

BREATHER - hydraulic reservoir

1шт.

19

217-1055

ELBOW,3/4" - 14 NPTF Female

- 90 degree, female, 3/4" NPT

1шт.

20

221-1921

PIPE,Nipple, 3/4" NPT x 2", X-Strng

NIPPLE - 3/4" NPT x 2", plated

1шт.

21

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.
