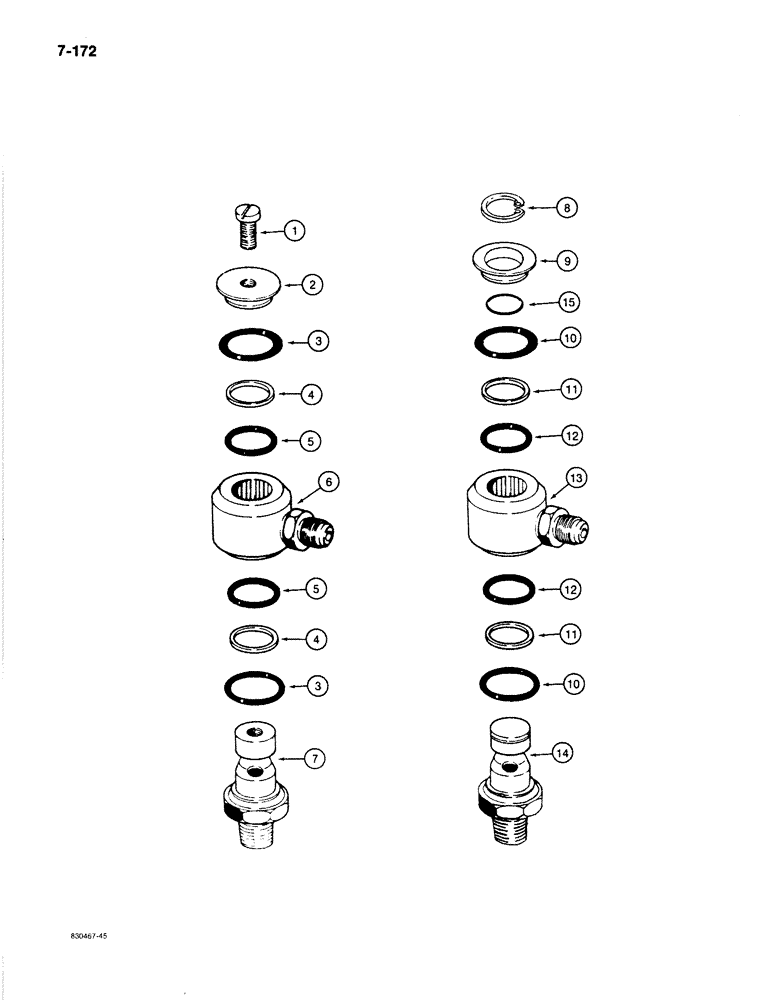

Запчасти Case 1080B (7-172) - S209351 INNER SWIVEL ASSEMBLY - UPPER (07) - BRAKES

S209351

FITTING

SWIVEL ASSEMBLY - inner, upper, Mayson, no longer available order S120653 swivel assembly for service, see Figure 7-174, with screw mounted cap, Includes: Refs. 1-7

1шт.

1

177-95

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

- machine, No. 10 - 32 NF x 3/8", Mayson type - with screw mounted cap

1шт.

2

S7989

CAP

- grit, Mayson type - with screw mounted cap

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- outside, Mayson type - with screw mounted cap

2шт.

4

N8522

WASHER

RING - backup, internal O-ring, Mayson type - with screw mounted cap

2шт.

5

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- internal seal, Mayson type - with screw mounted cap

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - swivel, Mayson type - with screw mounted cap

1шт.

7

NSS

NOT SOLD SEPARAT

STEM - swivel, Mayson type - with screw mounted cap

1шт.

S209351

FITTING

SWIVEL ASSEMBLY - inner, upper, Parker Hannifin, no longer available order S120653 swivel assembly for service, see Figure 7-174, with snap ring, Includes: Refs. 8-15

1шт.

8

F21293

SNAP RING,#59, Ext

RING, Snap, , cap, Parker Hannifin type, with snap ring #59, Ext

1шт.

Part of Seal Kit, P/N S95177

1шт.

9

S110297

CAP

- grit, Parker Hannifin type - with snap ring

1шт.

10

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- outside, Parker Hannifin type - with snap ring

2шт.

Part of Seal Kit, P/N S95177

1шт.

11

N8522

WASHER

RING - backup, internal seal, Parker Hannifin type - with snap ring

2шт.

Part of Seal Kit, P/N S95177

1шт.

12

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- internal seal, Parker Hannifin type - with snap ring

2шт.

Part of Seal Kit, P/N S95177

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - swivel, Parker Hannifin type - with snap ring

1шт.

14

NSS

NOT SOLD SEPARAT

STEM - swivel, Parker Hannifin type - with snap ring

1шт.

15

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

Small, inside cap (Replaces A26265), Parker Hannifin type - with snap ring -015, 90 Duro, .551" ID x .070" Thk

1шт.

Part of Seal Kit, P/N S95177

1шт.

S95177

KIT

SEAL KIT - for Parker Hannifin type fitting only, includes Refs. 8, 10, 11, 12 and 15, with snap ring

1шт.
