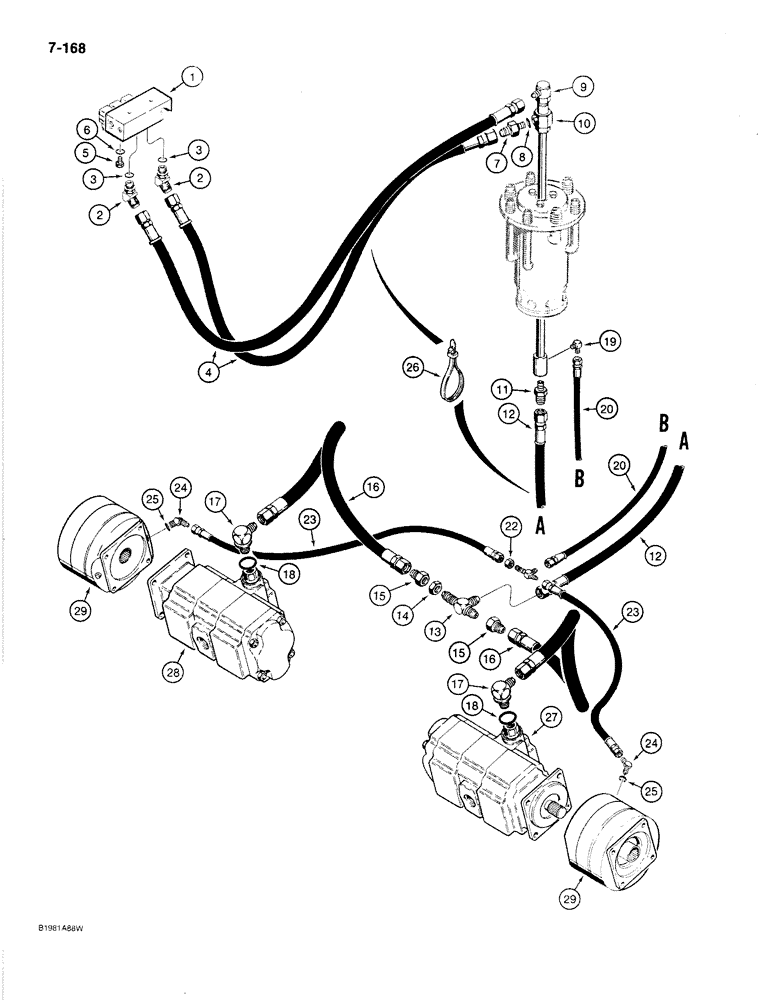

Запчасти Case 1080B (7-168) - DRIVE RANGE AND BRAKE HYDRAULIC LINES, P.I.N. 6271846 AND AFTER (07) - BRAKES

1

S516951

VALVE

ASSEMBLY - control, solenoid, parts list Figure 8-244

1шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, at solenoid control valve, Includes: Ref. 3

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.

4

S241219

HOSE ASSY.

HOSE - to inner swivel, 50" (1270 mm) long

2шт.

5

76349

PLUG,9/16" - 18 ORB

"V" port of solenoid valve, Incl. Ref. 6 Hex Hd, 9/16"-18 ORB

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Plug

1шт.

7

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, at inner swivel, lower port, Includes: Ref. 8

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Adapter

1шт.

9

REF

INSTRUCTION

SWIVEL ASSEMBLY - inner, upper, see Figure 7-172 and 7-174 for correct assembly and component parts

1шт.

10

S242505

SWIVEL ASSEMBLY - inner, parts list Figure 7-170

1шт.

11

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, inner swivel, bottom part

1шт.

12

S11227

HOSE

- 36" (914 mm) long, drive range, from swivel

1шт.

13

218-1236

TEE,3/4"-16, 37 Degree, Blkhd

- bulkhead, drive range hoses

1шт.

14

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

15

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

ADAPTER - straight

2шт.

16

S241217

HOSE ASSY.

HOSE - 21" (533 mm) long, drive range, to drive motors

2шт.

17

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

- 90 degree adjustable, 6/16" -18 NF flare x 7/16" - 20 NF straight thread, at drive motors, Incl. Ref. 18

2шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Elbow

1шт.

19

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, inner swivel, side port

1шт.

20

S77467

HOSE

- 38" (965 mm) long, brake, from swivel

1шт.

21

218-1235

TEE,7/16"-20, 37 Degree, Blkhd

- bulkhead, brake hoses

1шт.

22

218-1252

BHD LOCK NUT,Blkhd, 7/16"-20

NUT - hex, 7/16" -20 NF

1шт.

23

S77467

HOSE

- 38" (965 mm), Serial Range: long,-brake

2шт.

24

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 45 degree, at brakes, Includes: Ref. 25

2шт.

25

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Elbow

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

27

S517083

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, track drive, right-hand, parts list Figure 6-162

1шт.

28

S517084

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, track drive, left-hand, parts list Figure 6-162

1шт.

29

S617727

BRAKE ASSY.

BRAKE ASSEMBLY - track drive, parts list Figure 7-176

2шт.
