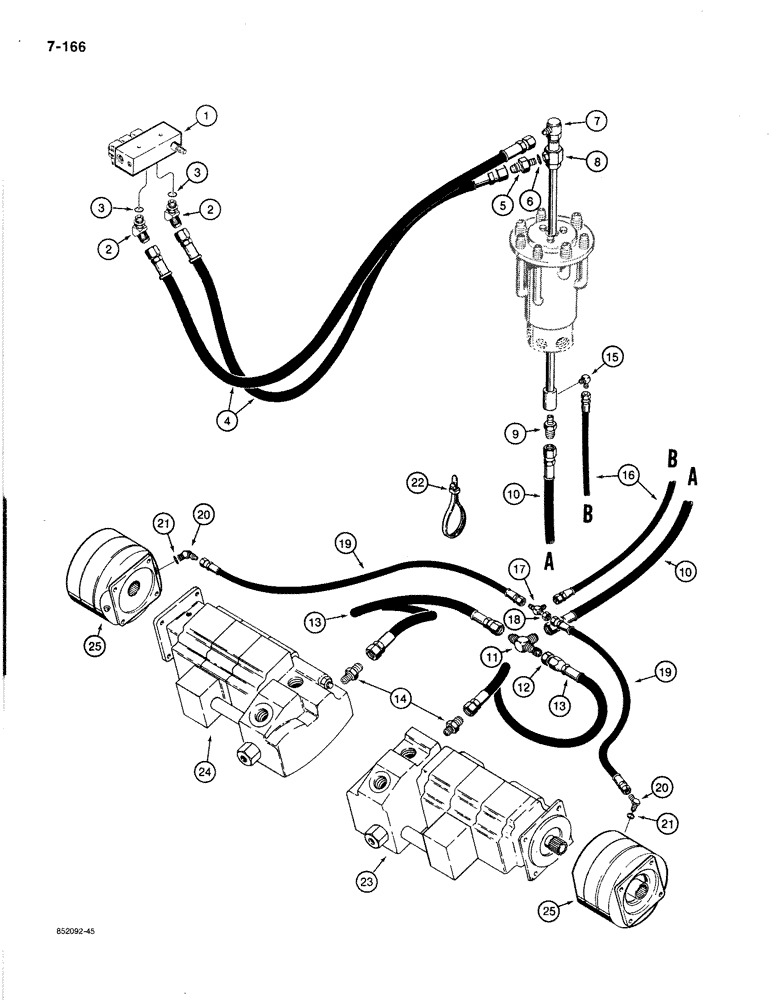

Запчасти Case 1080B (7-166) - DRIVE RANGE AND BRAKE HYDRAULIC LINES, PRIOR TO P.I.N. 6271846 (07) - BRAKES

1

S516951

VALVE

ASSEMBLY - control, solenoid, parts list Figure 8-244, mounting parts Figure 8-192

1шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, at solenoid control valve, Includes: Ref. 3

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.

4

S241219

HOSE ASSY.

HOSE - 50" (1270 mm) long, to inner swivel

2шт.

5

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, at inner swivel, lower port, Includes: Ref. 6

1шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Adapter

1шт.

7

REF

INSTRUCTION

SWIVEL ASSEMBLY - inner, upper, see Figure 7-172 or 7-174 for correct assembly and component parts

1шт.

8

S111313

SLEEVE

SWIVEL - inner, lower, see Figure 7-170 for related parts

1шт.

9

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, inner swivel, bottom port

1шт.

10

S11227

HOSE

- 36" (914 mm) long, drive range, from swivel

1шт.

11

218-1236

TEE,3/4"-16, 37 Degree, Blkhd

- bulkhead, drive range hoses

1шт.

12

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, , Tee Blkhd, 3/4"-16

1шт.

13

S11226

HOSE

- 20" (508 mm) long, drive range, to drive motors

2шт.

14

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, at drive motors

2шт.

15

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, inner swivel, side port

1шт.

16

S77467

HOSE

- 38" (965 mm) long, brake, from swivel

1шт.

17

218-1235

TEE,7/16"-20, 37 Degree, Blkhd

- bulkhead, brake hoses

1шт.

18

218-1252

BHD LOCK NUT,Blkhd, 7/16"-20

NUT - lock, bulkhead tee

1шт.

19

S77467

HOSE

- 38" (965 mm), Serial Range: long,-brakes

2шт.

20

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 45 degree, at brakes, Includes: Ref. 21

2шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Elbow

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

REF

INSTRUCTION

MOTOR ASSEMBLY - track drive, right-hand, see Figures 6-159 - 6-163B for correct motor and components

1шт.

24

REF

INSTRUCTION

MOTOR ASSEMBLY - track drive, left-hand, see Figures 6-159 - 6-163B for correct motor and components

1шт.

25

S617727

BRAKE ASSY.

BRAKE ASSEMBLY - track drive, parts list Figure 7-176

2шт.
