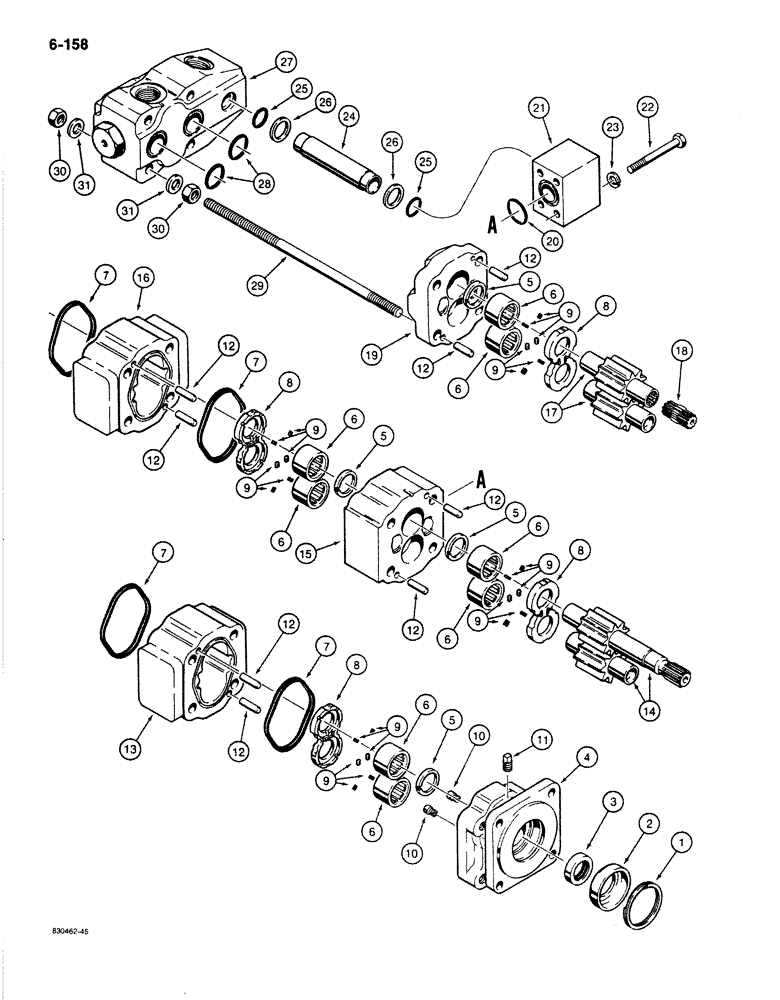

Запчасти Case 1080B (6-158) - TRACK DRIVE HYDRAULIC MOTORS, PRIOR TO P.I.N. 6271846 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
S617341
MOTOR
ASSEMBLY - hydraulic, left-hand
1шт.
S617342
MOTOR
ASSEMBLY - hydraulic, right-hand, Includes: Refs. 1-31
1шт.
1
S88756
SNAP RING,#283, 3.009", Int, Spiral
- end cover
1шт.
2
N8516
RETAINER
- seal
1шт.
3
S94907
SEAL
- shaft, outer
1шт.
4
S114837
COVER
- shaft end
1шт.
5
L32319
SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk
- shaft, inner
4шт.
6
D31942
ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"
BEARING - roller, motor
8шт.
7
D41391
O-RING
SEAL - between housing
4шт.
8
D31955
PLATE
- thrust
4шт.
9
L32099
SEAL
- 13/64" (5 mm) long, thrust plate, cut from E19465, see below
24шт.
10
S61749
VALVE
- check, hydraulic motor
2шт.
11
221-841
PLUG
- shaft end cover, 1/4" NPT
1шт.
12
W16323
DOWEL
PIN - dowel, motor
8шт.
13
N8507
HOUSING
- gear, next to shaft and cover
1шт.
14
N8508
GEAR-SET
GEAR - set, including output shaft
1шт.
15
N8515
CARRIER
- bearing, center, left-hand motor only
1шт.
15
N8509
CARRIER
- bearing, center, right-hand motor only
1шт.
16
N8510
HOUSING
- gear, next to port end cover
1шт.
17
N8511
GEAR-SET
GEAR - set, next to port end cover
1шт.
18
N8512
SHAFT
- connecting
1шт.
19
N8506
VALVE SPRING
COVER - next to port end
1шт.
20
T13224
O-RING,1.484" ID x 1.762" OD x 0.139"
- port block
1шт.
21
N8514
BLOCK
- port
1шт.
22
113-321
BOLT,Hex, 7/16" - 14 x 4", Gr 5
4шт.
23
194-7
WASHER
- lock, 7/16", special
4шт.
24
N8517
PIPE
- block to relief valve
1шт.
25
A27577
O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro
- pipe seal
2шт.
26
T22277
OIL SEAL
RING - backup, pipe seal O-ring
2шт.
27
N8513
VALVE
ASSEMBLY - two speed, parts list figure 6-160
1шт.
28
N8504
SEALING RING
- end cover to valve housing
2шт.
29
N8518
STUD
- motor tie
4шт.
30
129-183
NUT,5/8"-11, G8
8шт.
31
524443R1
WASHER,0.66" ID x 1.25" OD x 0.19" Thk
- special
8шт.
E19465
SEAL
- 3-1/4" (83 mm) long, use to make Ref. 9
1шт.
Выбрано товаров: 35
