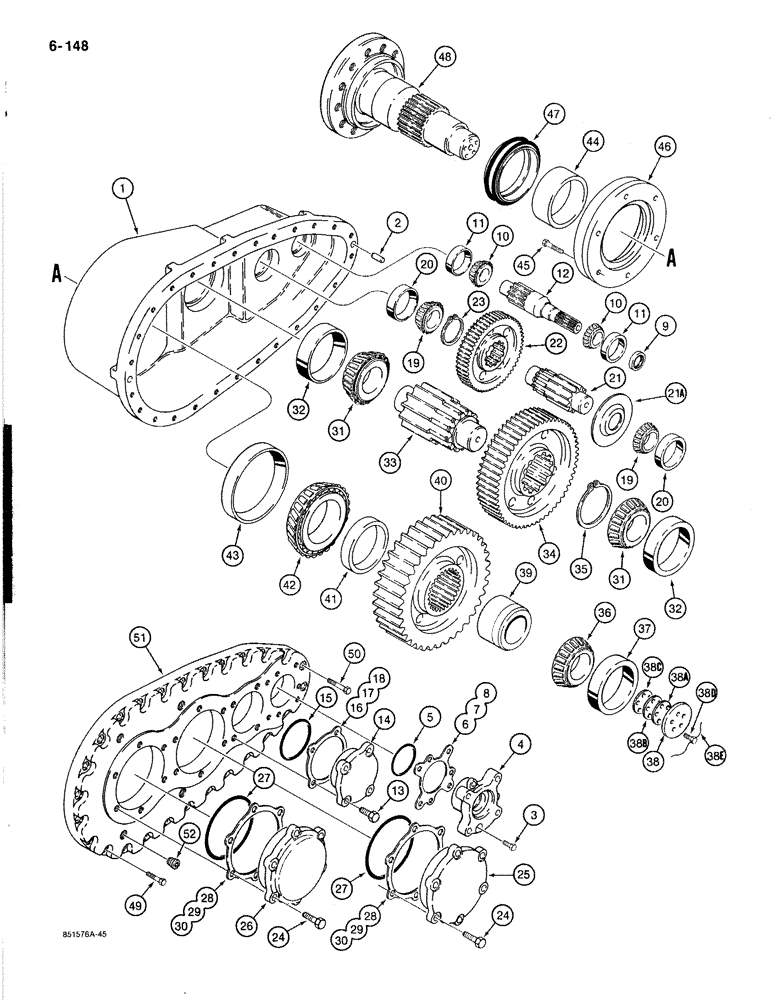

Запчасти Case 1080B (6-148) - FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

S618764

TRANSMISSION

ASSEMBLY - final drive, Includes: Refs. 1-52

2шт.

1

S956526

HOUSING

- gear, final drive

1шт.

Must use Loctite sealing compound

1шт.

2

S65037

DOWEL

PIN - dowel, 5/8" x 1-1/4"

2шт.

3

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 25 mm, plated

3шт.

4

S515461

COVER

- bearing, input shaft

1шт.

5

A30389

O-RING,3.359" ID x 3.637" OD x 0.139"

- cover

1шт.

6

S240543

SHIM,.127mm Thk

Input shaft bearing cover (.005") .127mm Thk

1шт.

7

S240544

SHIM,.177mm Thk

Input shaft bearing cover (.007") .177mm Thk

1шт.

8

S240545

SHIM,.508mm Thk

Input shaft bearing cover (.020") .508mm Thk

1шт.

9

F53634

SEAL

- oil, input shaft

1шт.

10

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

BEARING - tapered roller, input shaft

2шт.

11

A30580

BEARING CUP

CUP - bearing, input shaft

2шт.

12

S616978

SHAFT

- input, final drive

1шт.

13

813-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

4шт.

14

S240356

COVER

- bearing, first intermediate shaft

1шт.

15

S6108

O-RING,4.359" ID x 4.637" OD x 0.139"

- cover

1шт.

16

S240546

SHIM,.127mm Thk

Intermediate shaft bearing (.005) .127mm Thk

1шт.

17

S240547

SHIM,.177mm Thk

Intermediate shaft bearing, (.007") .177mm Thk

1шт.

18

S240548

SHIM,.508mm Thk

Intermediate shaft bearing (.020") .508mm Thk

1шт.

19

A27301

ROLLER BEARING,2" ID x 1.193"

BEARING - tapered roller, first intermediate shaft

2шт.

20

A26678

BEARING CUP,3.6718" OD x 0.9375"

CUP - bearing, first intermediate shaft

2шт.

21

S617089

SHAFT

- gear, first intermediate

1шт.

21a

S120544

PLATE

- oil slinger

1шт.

22

S616857

GEAR

- first intermediate

1шт.

23

A31227

SNAP RING,#275, Ext

RING, Snap, , gear #275, Ext

1шт.

24

813-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

12шт.

25

S515460

COVER

- bearing, second intermediate shaft

1шт.

26

S516871

COVER

- bearing, output shaft

1шт.

27

A40052

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

- bearing covers

2шт.

28

S240540

SHIM,.127mm Thk

Bearing covers (.005") .127mm Thk

1шт.

29

S240541

SHIM,.177mm Thk

Bearing covers (.007") .177mm Thk

1шт.

30

S240542

SHIM,.508mm Thk

Bearing covers, (.020") .508mm Thk

1шт.

B17423

LOCTITE

LOCKTITE - red, 10 cc bottle. Refs.1, 46 and 51 must use Loctite sealing compound

1шт.

31

S118455

ROLLER BEARING,69.85 mm ID x 41.275 mm

BEARING - tapered roller, second intermediate shaft

2шт.

32

S118456

BEARING CUP,146.05 mm OD x 31.75 mm

CUP - bearing, second intermediate shaft

2шт.

33

S616979

SHAFT

- gear, second intermediate

1шт.

34

S616858

GEAR

- second intermediate

1шт.

35

S118688

SNAP RING,#437, Ext

RING, Snap, , gear #437, Ext

1шт.

36

S118459

ROLLER BEARING,69.85 mm ID x 46.672 mm

BEARING - tapered roller, output shaft, cover end

1шт.

37

A34343

BEARING CUP

CUP - bearing, output shaft, cover end

1шт.

38

S242877

COVER

PLATE - retainer

1шт.

38a

S242878

SHIM,.127mm Thk

(.005"), Retainer to bearing .127mm Thk

1шт.

38b

S242879

SHIM

- .007" (.0177 mm) thick, Serial Range: retainer-bearing

1шт.

38c

S242880

SHIM

- .020" (0.508 mm) thick, Serial Range: retainer-bearing

1шт.

38d

S120018

BOLT

- hex head, 12 mm - 1.75 x 25 mm, class 10.9, special

5шт.

38e

S120626

ELECTRICAL WIRE

WIRE - locking, retainer plate bolt, 13/32" (1.04 mm) diameter x 15" (381 mm) long, stainless steel, cut from S120625

1шт.

Cut from locking wire, P/N S120625, see below

1шт.

39

S242881

SPACER

-, Serial Range: locknut-gear

1шт.

40

S617046

GEAR

- output

1шт.

41

S240589

SPACER

-, Serial Range: gear-bearing

1шт.

42

S118457

ROLLER BEARING,120.65 mm ID x 47.625 mm

BEARING - tapered roller, output shaft, seal end

1шт.

43

S118458

BEARING, CUP,206.375 mm OD x 34.925 mm

CUP - bearing, output shaft, seal end

1шт.

44

S240602

SPACER

- output shaft

1шт.

45

814-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 8.8

- hex head, 12 mm - 1.75 x 55 mm, plated

6шт.

46

S617019

COVER

RETAINER - seal

1шт.

Must use Loctite sealing compound

1шт.

47

S240591

OIL SEAL

SEAL - oil, output shaft

1шт.

48

S618763

SHAFT

AND FLANGE - output, drive sprocket

1шт.

49

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 40 mm, plated

24шт.

50

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

- hex head, 12 mm - 1.75 x 60 mm (8.8), plated

2шт.

51

S956521

COVER

- gear, final drive housing

1шт.

Must use Loctite sealing compound

1шт.

52

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket head, 3/4" NPT

4шт.

B17423

LOCTITE

- red, 10 cc bottle. Refs. 1, 46 and 51 must use Loctite sealing compound

1шт.

S120625

ELECTRICAL WIRE

WIRE - locking, bulk package, 1 lb. roll, 13/32" (1.04 mm) diameter, stainless steel

1шт.
