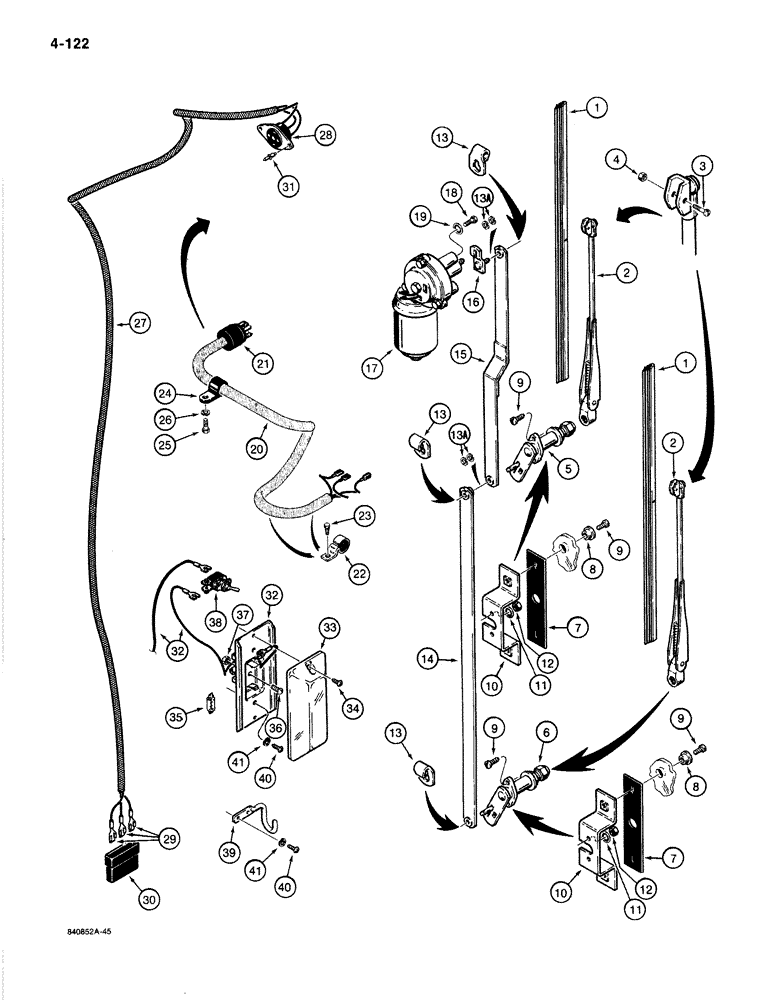

Запчасти Case 1080B (4-122) - WINDSHIELD WIPER AND DOME LAMP (04) - ELECTRICAL SYSTEMS

1

N13102

WIPER BLADE

BLADE - 20" (508 mm) long, wiper arm

2шт.

S241559

WIPER ARM

ARM ASSEMBLY - windshield wiper, Includes: Refs. 2-4

2шт.

2

NSS

NOT SOLD SEPARAT

ARM - windshield wiper

1шт.

3

169-44

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

- machine, Fillister Head, No. 5 - 40 NC 1/2", plated

1шт.

4

131-502

LOCK NUT,#5-40

NUT - hex, self-locking, No. 5 - 40 NC, plated

1шт.

5

S516458

SHAFT

- pivot, upper

1шт.

6

S516847

PIVOT ASSY.

SHAFT - pivot, lower

1шт.

7

S218046

GASKET

- rubber, Serial Range: bracket-glass

2шт.

8

N13091

BUSHING

- nylon, bracket mounting

4шт.

9

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- machine, No. 10 - 24 NC x 5/8", plated

8шт.

10

S241525

BRACKET

- mounting, wiper shaft

2шт.

11

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

4шт.

12

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

13

S240639

CLIP

-, Serial Range: arm-shaft

3шт.

13a

193-96

LOCK WASHER,3/8"

WASHER - lock, , plated, use 2 in each location to replace single lock washer used in production 3/8"

4шт.

14

N13070

UPPER LINK

LINK - connecting, upper to lower shaft

1шт.

15

N13071

LINK ASSY.

LINK - connecting, upper, Serial Range: shaft-motor

1шт.

LINKS ARE TUBULAR

1шт.

16

A36091

ARM

- drive, Serial Range: motor-link

1шт.

17

S118443

WIPER

MOTOR - wiper, 24 volt

1шт.

18

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- hex head, 1/4" - 28 NF x 3/4", plated

3шт.

19

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4", plated

3шт.

20

S242085

HARNESS

- wiring, wiper, Includes: Ref. 21

1шт.

21

S120373

PLUG

- male

1шт.

22

214-1202

CLAMP

- windshield frame

2шт.

23

187-1507

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - hex head, self-tapping, No. 10 - 24 NC x 3/8", plated

2шт.

24

S64985

CLAMP

- cab roof

1шт.

25

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

S239623

HARNESS

ASSEMBLY - cab wiring, Includes: Refs. 28, 29

1шт.

28

S117120

DRAG LINK

SOCKET - female

1шт.

29

223-178

TERMINAL CONNECTOR

TERMINAL - wire ends

3шт.

30

223-172

CONNECTOR, ELEC

RECEPTACLE - wiring

1шт.

31

151-543

RIVET,Pop, 3.17mm OD x 10.16mm L

- pop, 1/8" x 1/4", plated

2шт.

S239624

LIGHT ASSY.

LAMP ASSEMBLY - dome, Includes: Refs. 32-38

1шт.

S117653

COURTESY LIGHT

BODY ASSEMBLY - dome lamp, Includes: Refs. 32-37

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - dome lamp

1шт.

33

N13033

LENS

- dome lamp

1шт.

34

187-1716

SELF-TAP SCREW,Slotted Pan Hd, #6 x 5/8"

SCREW - pan head, self-tapping, No. 6 - 32 NC x 5/8", plated

2шт.

35

F64364

BULB,12V

- dome lamp, No. 561

1шт.

36

182-514

SCREW

- machine, pan head slotted, No. 6 - 32 NC x 1/2", plated

1шт.

37

129-15

NUT,#6-32

1шт.

38

S117668

SWITCH

- toggle, dome lamp

1шт.

39

S61769

HOOK

- coat

1шт.

40

182-526

SCREW,Cross Pan Hd, #10 - 24 x 3/8"

- machine, pan Phillips head, No. 10 - 24 NC x 3/8", plated

4шт.

41

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.
