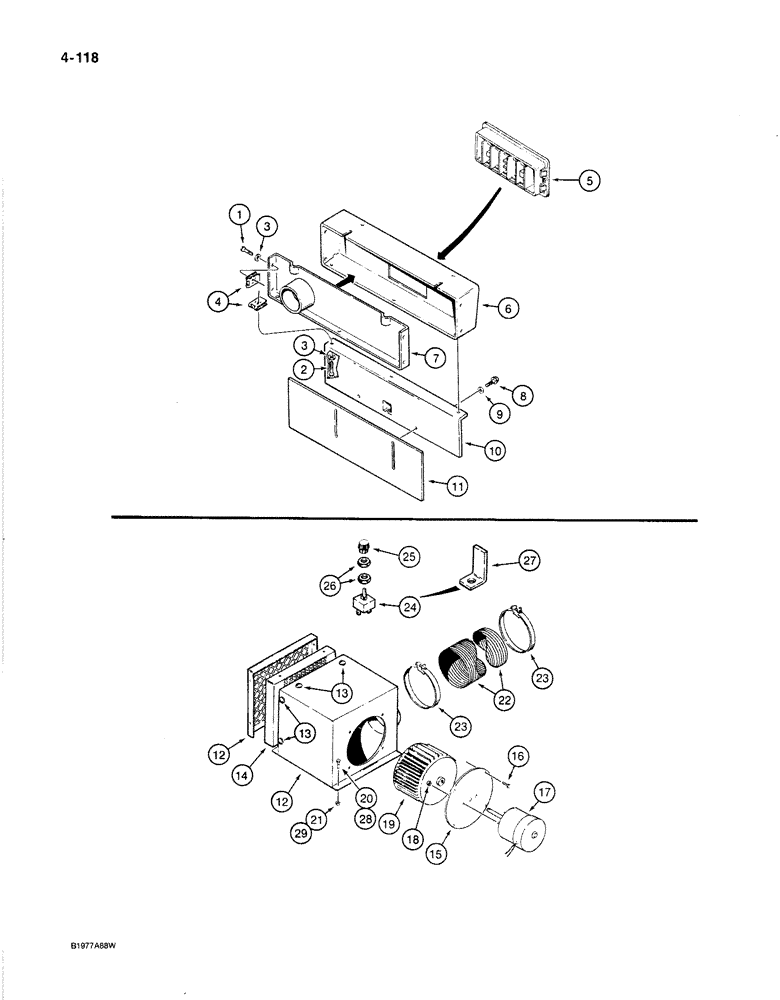

Запчасти Case 1080B (4-118) - HEATER SHROUDING AND HEATER (04) - ELECTRICAL SYSTEMS

1

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, No. 10 - 24 NC x 3/4", Phillips oval head, black, heater shrouding

4шт.

2

179-162

SCREW,Cross Oval Hd, #10 - 24 x 1"

- machine, No. 10 - 24 NC x 1", Phillips oval head, black, heater shrouding

3шт.

3

F64315

WASHER

- No. 10, special trim, heater shrouding

7шт.

4

S117167

CLIP

NUT - U-type, No. 10 - 24 NC, heater shrouding

7шт.

5

F89948

GUARD

LOUVER - heater shroud

1шт.

6

S618291

PANEL

SHROUD - heater, outer

1шт.

7

S618292

PANEL

SHROUD - heater, inner

1шт.

8

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - hex washer head, self-locking, 1/4" -20 NC x 3/4", black, heater shrouding

2шт.

9

195-2251

WASHER,.281" x 1" x .109"

- flat, 1/4", plated, heater shrouding

2шт.

10

S516015

PANEL

- seat, upper, heater shrouding

1шт.

11

S516013

PANEL

- seat, lower, heater shrouding

1шт.

S242826

HEATER

ASSEMBLY - logger cab, Includes: Refs. 12-15

1шт.

12

S118417

HOUSING

- heater

1шт.

13

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, No. 10 - 24 NC x 1/2", heater

10шт.

14

N13154

CORE

- heater

1шт.

15

S118422

PLATE

- motor mounting, heater

1шт.

16

193-515

SCREW,SEMS, But Hd, 1/4"-20 x 1/2"

BOLT - hex head, 1/4" - 20 NC x 1/2", plated, heater

4шт.

17

S118418

MOTOR, ELECTRIC

MOTOR - blower wheel, 24 volt, heater

1шт.

18

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated, heater

2шт.

19

S118423

BLOWER

FAN - blower, heater

1шт.

20

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Not required, see Refs. 28 and 29 for correct hardware, heater Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

21

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, not required, see Refs. 28 and 29 for correct hardware, heater

4шт.

22

S118428

DUCT

-, Serial Range: heater-shroud

1шт.

23

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - heater duct to heater and shroud

2шт.

24

S118430

SWITCH

- heater, rotary

1шт.

25

S118431

KNOB

- heater switch

1шт.

26

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5, Heater

2шт.

27

S120599

BRACKET

- heater switch

1шт.

28

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Heater Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

29

131-96

LOCK NUT,9/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated, heater

4шт.
