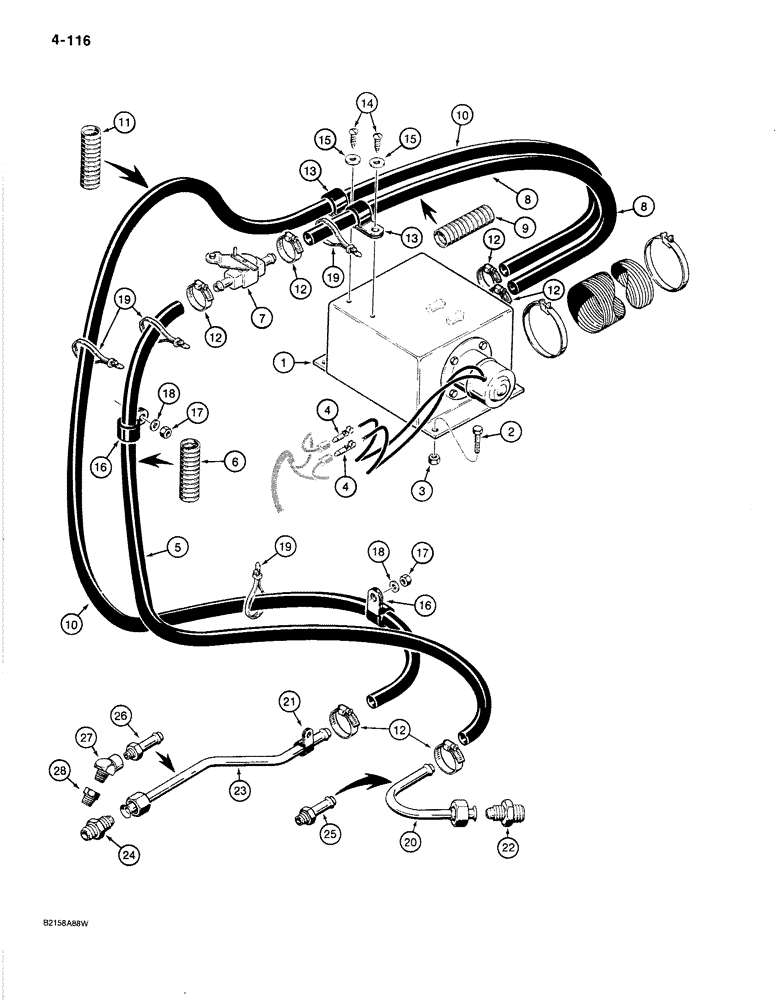

Запчасти Case 1080B (4-116) - HEATER AND HOSES (04) - ELECTRICAL SYSTEMS

1

S242826

HEATER

ASSEMBLY - parts list Figure 4-118

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

3

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

4

223-191

TERMINAL CONNECTOR,14 - 16

CONNECTOR - electrical, female

2шт.

5

REF

INSTRUCTION

HOSE - 5/8" (16 mm) ID x 110" 2794 mm) long, models with Case engine, 5/8" (16 mm) ID x 125" (3175 mm) long, models with Detroit Diesel engine, engine to shutoff valve, cut from A42610, see below

1шт.

6

REF

INSTRUCTION

SLEEVE - 1" (25 mm) ID x 75" (1905 mm) long, hose, models with Case engine, 122" (3099 mm) long, models with Detroit Diesel engine, cut from S119717, see below

1шт.

7

S223937

VALVE

- heater shutoff

1шт.

FIG 7 IS HAND OPERATED. NO CABLE PER ENGINEERING.

1шт.

8

REF

INSTRUCTION

HOSE - 5/8" (16 mm) ID x 24" (610 mm) long, shutoff valve to heater, cut from A42610, see below

1шт.

9

REF

INSTRUCTION

SLEEVE - 1" (25 mm) ID x 22" (560 mm) long, hose, cut from S119717, see below

1шт.

10

REF

INSTRUCTION

HOSE - 5/8" (16 mm) ID x 150" (3810 mm) long, models with Case engine, 157" (3988 mm) long, models with Detroit Diesel engine, heater outlet to engine, cut from A42610, see below

1шт.

11

REF

INSTRUCTION

SLEEVE - 1" (25 mm) ID x 94" (2387 mm) long, hose, models with Case engine, 154" (3912 mm) long, models with Detroit Diesel engine, cut from S119717, see below

1шт.

12

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

6шт.

13

S15544

CLAMP,1 5/16", Insul, 3/8" Bolt

- hoses at top of heater

2шт.

14

187-331

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/4"

SCREW - self-tapping, No. 10 x 3/4", plated

2шт.

15

195-513

WASHER,#10

- flat, No. 10

2шт.

16

R14668

CLAMP

- hoses

2-4шт.

17

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

18

195-525

WASHER,3/8", SAE

- flat, 3/8", if used

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

20

S232219

TUBE,0.62" OD x 3.06, 4.68" L

- engine outlet, Case engine only

1шт.

21

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- S231777 tube, Ref. 23, to throttle cable bracket, special parts used on models with case

1шт.

22

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER - straight, special parts used on models with case engine

1шт.

23

S231777

TUBE,0.62" OD x 3.85, 34.05" L

- return to engine, special parts used on models with case

1шт.

24

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, special parts used on models with case engine

1шт.

25

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

- stem, straight, engine outlet, special parts used on models with detroit diesel

1шт.

26

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

- stem, straight, return to engine, special parts used on models with detroit diesel

1шт.

27

217-1086

45 ELBOW,45 Degree, 1/2"-14 Female x 1/2"-14 Male

- street, 45 degree, 1/2" NPT, special parts used on models with detroit diesel engine

1шт.

28

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

- return to engine, specail parts used on models with detroit diesel

1шт.

A42610

LARGE HOSE

HOSE - 5/8" (16 mm) ID x 50 ft (1524 cm) long, bulk roll, use to make Refs. 5, 8 and 10, specail parts used on models with detroit diesel engine

1шт.

S119717

CONDUIT

SLEEVE - 1" (25 mm) ID x 192" (4878 mm) long, bulk roll, use to make Refs. 6, 9 and 11, special parts used on models with detroit diesel engine

1шт.
