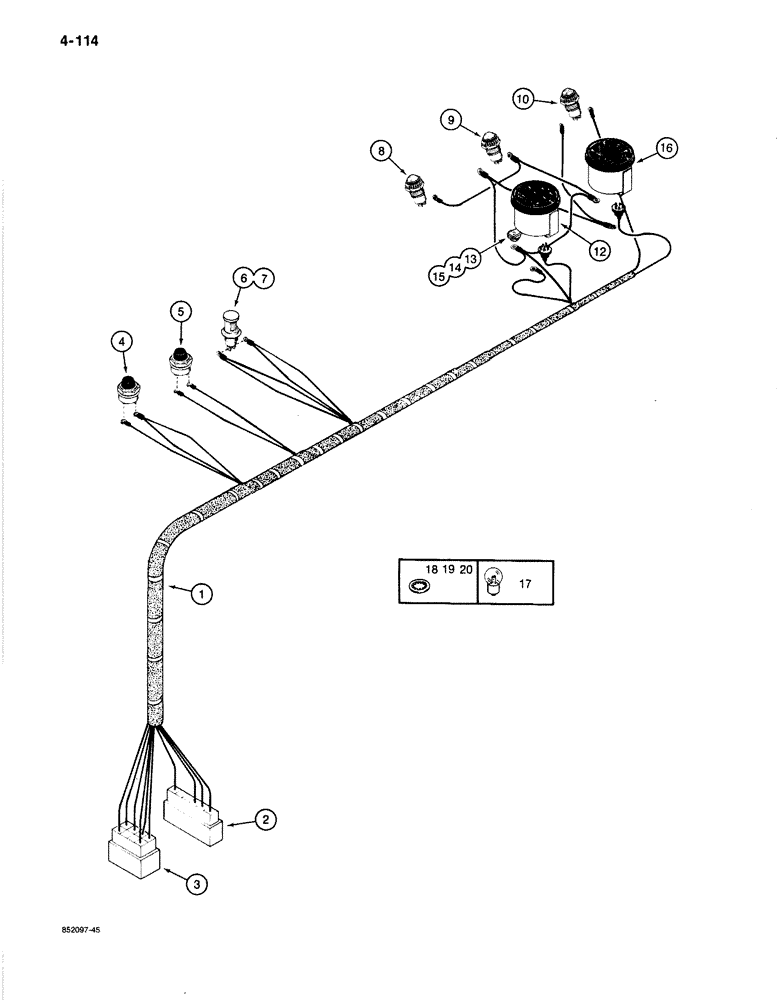

Запчасти Case 1080B (4-114) - ELECTRICAL HARNESS - RIGHT-HAND CONSOLE (04) - ELECTRICAL SYSTEMS

1

S618934

HARNESS

- right-hand console, Includes: Refs. 2 and 3

1шт.

2

223-170

CONNECTOR, ELEC

CONNECTOR - female, 6 terminals

1шт.

3

223-172

CONNECTOR, ELEC

CONNECTOR - female, 8 terminals

1шт.

4

S241920

SWITCH

- cold start button, is used

1шт.

5

S241920

SWITCH

- horn

1шт.

6

S239151

LIGHT

LAMP - panel

1шт.

7

A25258

BULB

- panel lamp

1шт.

8

S239150

LIGHT

LAMP - warning, hydraulic filter

1шт.

9

S242610

LIGHT

LAMP - warning, low oil pressure

1шт.

10

S239148

LAMP

- warning, drive brake on

1шт.

12

S239138

GAUGE

- engine temperature

1шт.

13

S108406

RESISTOR

- engine temperature gauge

1шт.

14

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

15

129-37

NUT,#10-32

1шт.

16

S239336

VOLTMETER

- battery

1шт.

17

S116543

BULB

- temperature guage and voltmeter

2шт.

18

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , Switch and gauge terminals Int Tooth, #10

1шт.

19

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, , Switch and gear terminals Int Tooth, #8

1шт.

20

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, , Switch and gauge terminals Int Tooth, #6

1шт.
