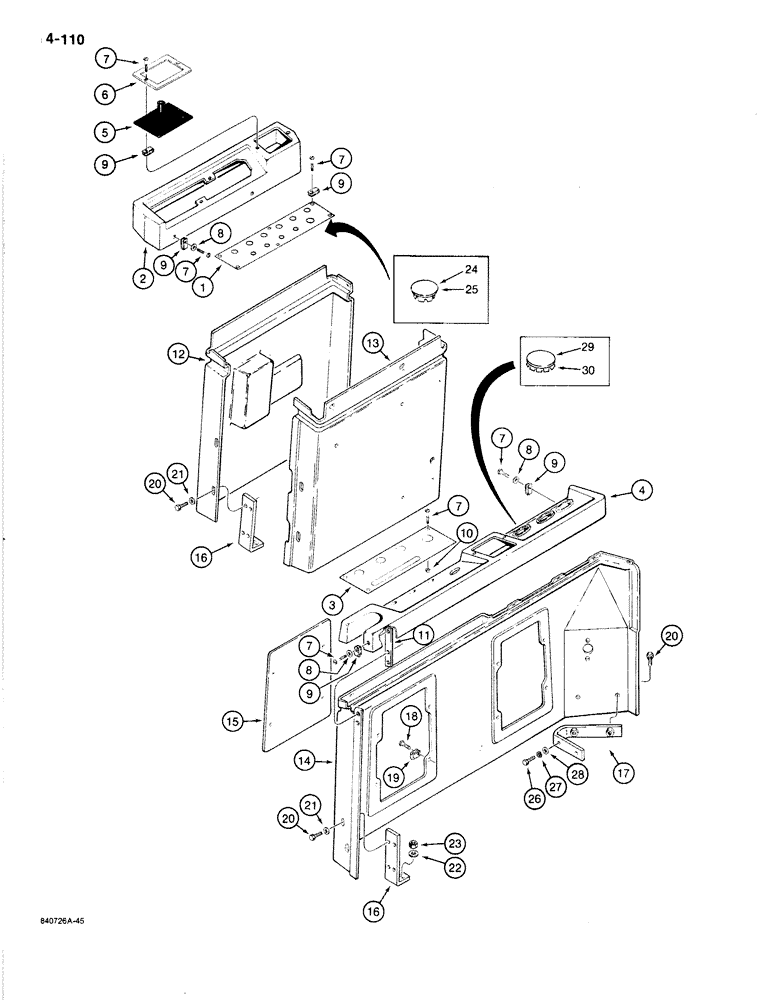

Запчасти Case 1080B (4-110) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

321-6098

PANEL

- instrument, left-hand

1шт.

2

S956663

COVER

- left-hand console

1шт.

3

321-6097

PANEL

DECAL - instrument panel, right-hand console, used on models with CASE engine

1шт.

3

321-6457

DECAL

- instrument panel, right-hand console, used on models with Detroit Diesel engine

1шт.

4

S956661

COVER

- right-hand console

1шт.

5

S615715

BOOT

- control lever

2шт.

6

S239340

FLANGE

- boot retaining

2шт.

7

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, No. 10 - 24 NC x 3/4", plated

31шт.

8

F64315

WASHER

- special finishing, No. 10

13шт.

9

S117167

CLIP

NUT - U-type, No. 10 - 24 NC, plated

23шт.

10

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

11

S118869

BAR

- right-hand, Serial Range: cover-console

1шт.

12

S956664

PANEL

CONSOLE - left-hand, outside

1шт.

13

S956665

PANEL

CONSOLE - left-hand, inside

1шт.

14

S956925

PANEL

CONSOLE - right-hand

1шт.

15

S516014

COVER

- access, right-hand console

2шт.

16

S239381

BRACKET

- console support, rear

2шт.

17

S516665

BRACKET

- console support, right-hand front

1шт.

18

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, No. 10 - 24 NC x 3/4", plated

8шт.

19

S117167

CLIP

NUT - U-type, No. 10 - 24 NC, plated

8шт.

20

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex head, 1/4" - 20 NC x 3/4", plated

16шт.

21

195-2250

WASHER,.266" x 13/16" x .083"

- flat, 3/16" bolt size

6шт.

22

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", plated

2шт.

23

131-52

NUT,3/8"-16, GC

NUT - hex, 3/8" - 16 NC, plated

2шт.

24

353-404

PLUG,Dome, .500" hole, Nylon

(13 mm) Dome, .500" hole, Nylon

1шт.

25

353-402

PLUG,Dome, .375" hole, Nylon

(10 mm) Dome, .375" hole, Nylon

1шт.

26

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

28

195-2250

WASHER,.266" x 13/16" x .083"

- flat, 3/16" bolt size, plated

2шт.

29

353-407

PLUG,Dome, .687" hole, Nylon

- 11/16" (17 mm) diameter hole size

1шт.

30

S242662

PLUG

- special, 2-3/32" (53 mm) diameter hole size

1шт.
