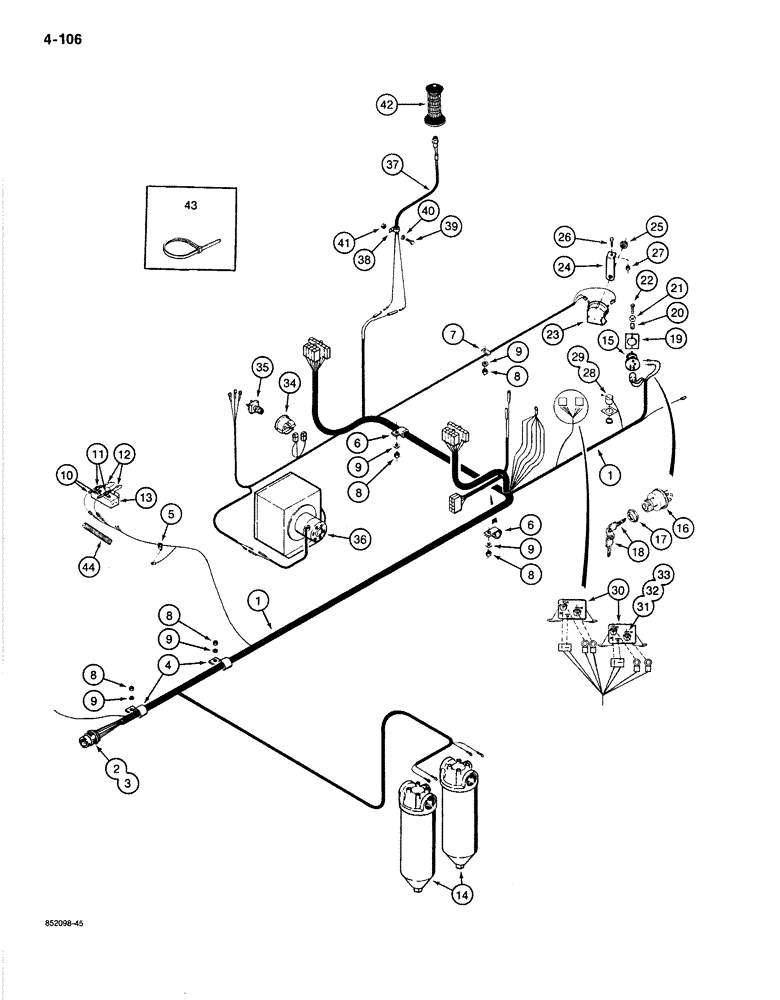

Запчасти Case 1080B (4-106) - ELECTRICAL HARNESS - CAB AND TURNTABLE (04) - ELECTRICAL SYSTEMS

1

S618923

HARNESS

- turntable, Includes: Refs. 2 and 3

1шт.

2

S107264

CONNECTION,ELECTRIC

PLUG - electrical, harness, Includes: Ref. 3

1шт.

FIG 2 FOR A LARGER PLUG TRY S120488-HAS DIFFERENT PIN CONFIGURATION ALSO- 8 IN CIRCLE WITH LARGE HOLE IN MIDDLE

1шт.

3

S99516

CONTACT

PIN - plug, not shown

8шт.

4

S15544

CLAMP,1 5/16", Insul, 3/8" Bolt

- harness, rear

2шт.

5

S77322

CLAMP

- wire to solenoid control valve

1шт.

6

T50103

CLAMP

- harness, front

2шт.

7

A61275

CLIP

CLAMP - horn wire

1шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" -16 NC, plated

5шт.

9

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

5шт.

10

S242833

HARNESS

WIRE - diode

3шт.

11

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- diode wires to solenoid valve

3шт.

12

S117294

ROD, CONNECTING

TERMINAL - solenoid valve wires

3шт.

13

S516951

VALVE

ASSEMBLY - control, solenoid, parts list Figure 8-244, mounting parts Figure 8-192

1шт.

14

S616066

FILTER

ASSEMBLY - hydraulic oil, parts list Figure 8-258

2шт.

15

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - key, electrical system, Includes: Refs. 16-18

1шт.

16

NSS

NOT SOLD SEPARAT

SWITCH - key

1шт.

17

A77314

NUT

- hex, special, key switch mounting

1шт.

18

A77314

NUT

KEYS - set of two; metal without padding

1шт.

19

S242795

PLATE

- switch mounting

1шт.

20

131-143

SPRING NUT,Tinn, U, #10-24

2шт.

21

F64315

WASHER

- special finishing

2шт.

22

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, oval Phillips head, No. 10 - 24 NC x 3/4", black

2шт.

23

D77650

HORN

- electrical

1шт.

24

L73799

BRACKET

- horn mounting

1шт.

25

L30866

LOCK NUT

- horn mounting

1шт.

26

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

27

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

28

S242611

ALARM

BUZZER - low oil pressure

1шт.

29

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, , Used on buzzer terminals Int Tooth, #6

2шт.

30

L115883

RELAY

- electrical

2шт.

31

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

4шт.

32

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

33

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

4шт.

34

S516994

GAUGE

HOURMETER - electric

1шт.

35

REF

INSTRUCTION

SWITCH - heater, if used, supplied with heater, heater parts list figure 4-118

1шт.

36

S242826

HEATER

ASSEMBLY - cab, if used, parts list on figure 4-118

1шт.

37

S242036

SWITCH

AND WIRE - fast hoist

1шт.

38

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- fast hoist switch wire

1шт.

39

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

40

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

41

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

42

S119987

GRIP

- control lever, see Figure 9-275 for hand lever controls

1шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

44

REF

INSTRUCTION

SLEEVE - 20" (508 mm) long, wire, cut from S119717, see below

1шт.

S119717

CONDUIT

SLEEVE - 1" (25 mm) ID x 192" (4878 mm) long, bulk roll, use to make Ref. 44

1шт.
