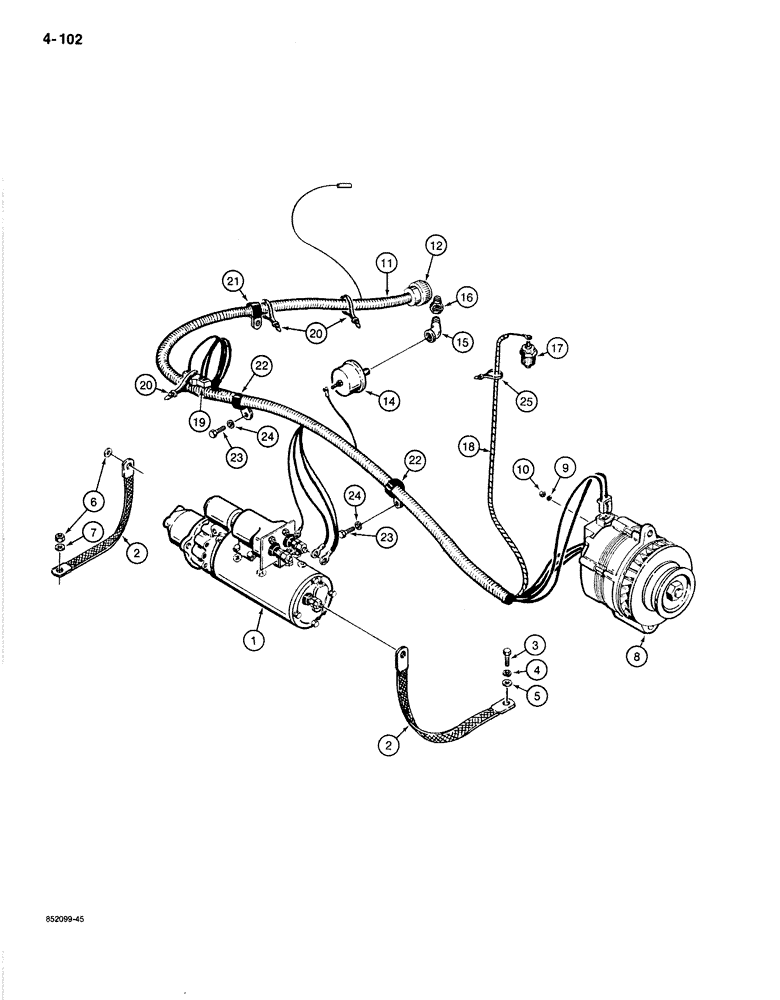

Запчасти Case 1080B (4-102) - ENGINE ELECTRICAL SYSTEM, USED ON MODELS WITH DETROIT DIESEL (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - included with Detroit Diesel engine, for service see an authorized Detroit Diesel Allision service outlet

1шт.

2

S229640

CABLE

STRAP - ground, starter to engine and, Serial Range: engine-turntable

2шт.

3

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

Ground strap to engine Hex, 7/16"-14 x 1", G5, Full Thd

1шт.

4

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Ground strap to engine 7/16"

1шт.

5

195-529

WASHER,7/16", SAE

- flat, 7/16", plated, ground strap to engine

1шт.

6

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, ground strap to engine and turntable

2шт.

7

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking" -16 NC, plated, ground strap to turntable

1шт.

8

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - electrical, parts list Figure 4-086 and 4-088, mounting brackets on Figure 4-099A

1шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Alternator output terminal 1/4"

1шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Alternator output terminal

1шт.

11

S618941

HARNESS

- engine, Includes: Refs. 12 and 13

1шт.

12

S107265

PLUG

CONNECTOR - harness, Includes: Ref. 13

1шт.

13

S99513

CONTACT

- connector, female, not shown

8шт.

14

S242648

SWITCH

SENDER - engine oil pressure

1шт.

15

S120252

PLUG

ELBOW - street, 45 degree, 1/8" NPT (replaces 217-1084)

1шт.

16

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8", at engine

1шт.

17

S108396

SENDER UNIT

SENDER - engine temperature

1шт.

18

REF

INSTRUCTION

LOOM - 21" (533 mm) long, engine temperature sending wire, cut from S118377, see below

1шт.

19

S237284

RESISTOR

- alternator circuit

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

R14668

CLAMP

- harness

1шт.

22

S88820

CLAMP

- harness

2шт.

23

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

24

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

S118377

LOOM

- 240" (6096 mm) long, bulk roll, use to make Ref. 18

1шт.
