Запчасти Case 1080B (4-100) - ENGINE ELECTRICAL SYSTEM, USED ON MODELS WITH CASE ENGINE (04) - ELECTRICAL SYSTEMS

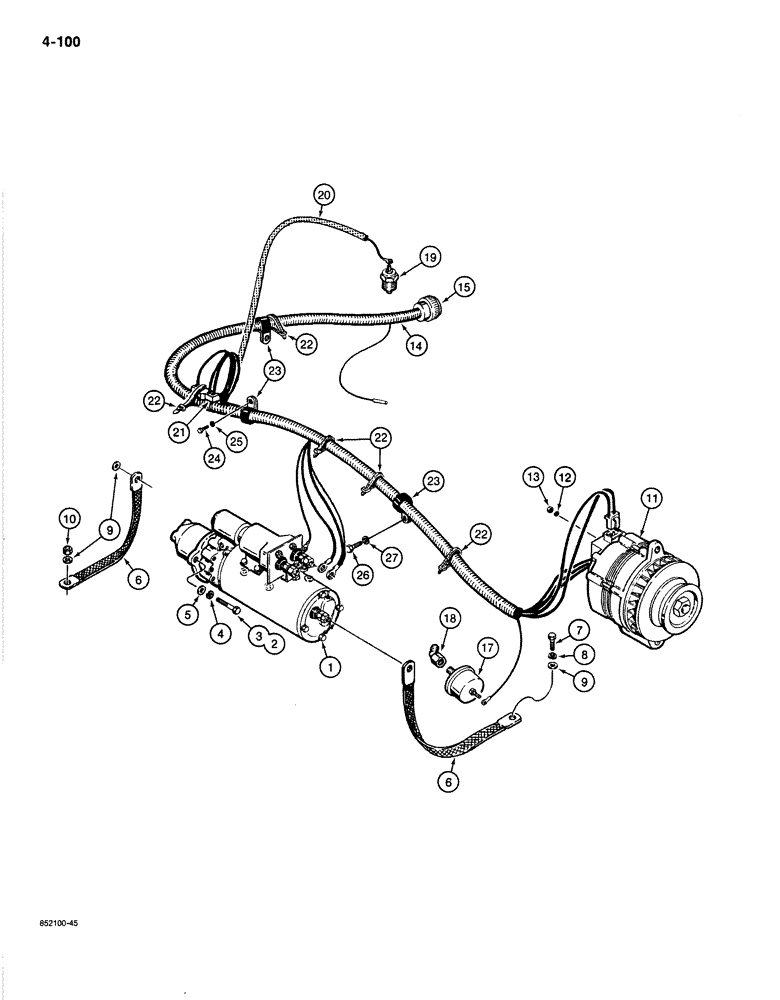

Схема запчастей Case 1080B - (4-100) - ENGINE ELECTRICAL SYSTEM, USED ON MODELS WITH CASE ENGINE (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine, parts list Figures 4-91 - 4-97

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

3

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

5

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", plated

3шт.

6

S229640

CABLE

STRAP - ground, starter to engine and, Serial Range: engine-turntable

2шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Ground strap to engine Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Ground strap to engine 3/8"

1шт.

9

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, ground straps to engine and turntable

3шт.

10

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated, ground strap to turntable

1шт.

11

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - electrical, parts list Figure 4-086 and 4-088, mounting brackets on Figure 4-099A

1шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Alternator output terminal 1/4"

1шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Alternator output terminal

1шт.

14

S618940

HARNESS

- engine, Includes: Refs. 15 and 16

1шт.

15

S120252

PLUG

CONNECTOR - harness (replaces S107265), Includes: Ref. 16

1шт.

16

S99513

CONTACT

- connector, female, not shown

8шт.

17

S242609

SWITCH

SENDER - engine oil pressure

1шт.

18

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

19

S108396

SENDER UNIT

SENDER - engine temperature

1шт.

20

REF

INSTRUCTION

LOOM - 21" (533 mm) long, engine temperature sending wire, cut from S118377, see below

1шт.

21

S237284

RESISTOR

- alternator circuit

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

R14668

CLAMP

- harness

3шт.

24

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

26

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

S118377

LOOM

-240" (6096 mm) long, bulk roll, use to make Ref. 20

1шт.
