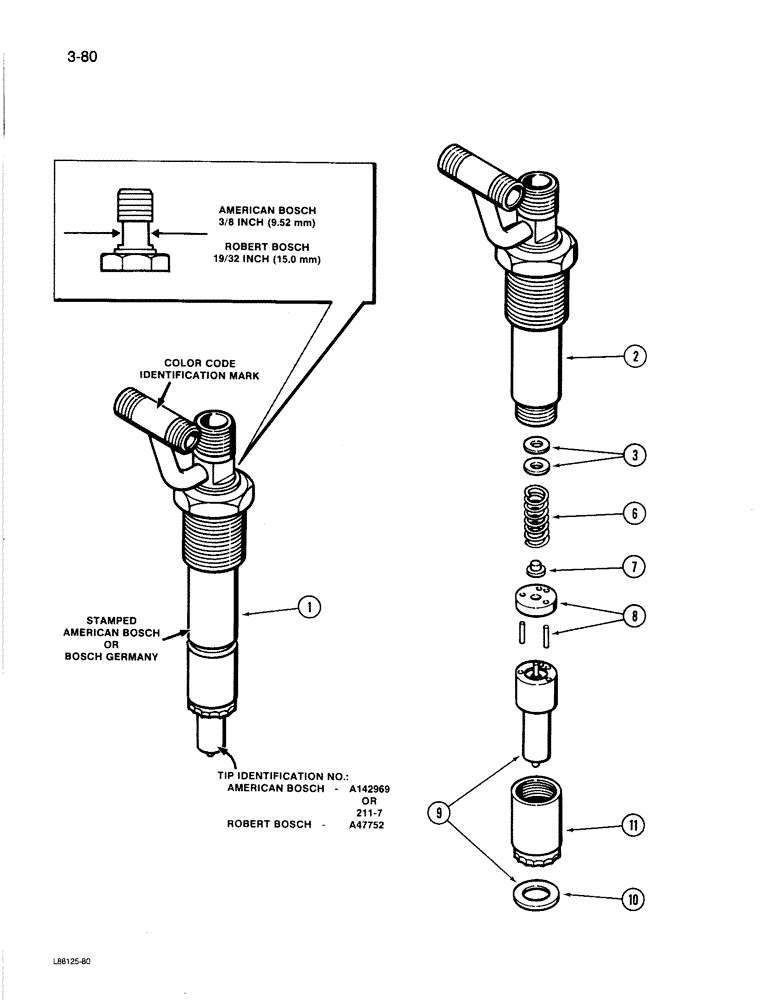

Запчасти Case 1080B (3-80) - FUEL INJECTOR NOZZLE, 504BDT ENGINE, RED COLOR CODE IDENTIFICATION (03) - FUEL SYSTEM

A156327

NOZZLE CAP

NOZZLE ASSEMBLY - fuel injection, Includes: Refs. 1-11

6шт.

A156327R

REMAN-INJECT NOZZLE

1080B

6шт.

A156327C

CORE-NOZZLE, INJECT

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, American Bosch, Includes: Refs. 2-11

1шт.

Internal parts between the American Bosch and Robert Bosch injectors are not interchangable. See illustration for identification.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156327)

1шт.

A44860

SHIM

KIT - shim, nozzle opening pressure (One kit repair six nozzles)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.062 inch (6 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch (80 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch (50 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch (50 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch (20 in kit)

1шт.

6

A44864

SPRING

- nozzle pressure

1шт.

7

A44863

SEAT

- nozzle pressure spring

1шт.

8

A44862

VALVE

STOP - nozzle with pin (Includes dowel pins)

1шт.

9

A142969

NOZZLE CAP

TIP ASSEMBLY - nozzle injector

1шт.

10

1342829C1

GASKET

- nozzle; Replaces A76640

1шт.

When nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.
