Запчасти Case 1080B (3-64) - FUEL TANK AND LINES (03) - FUEL SYSTEM

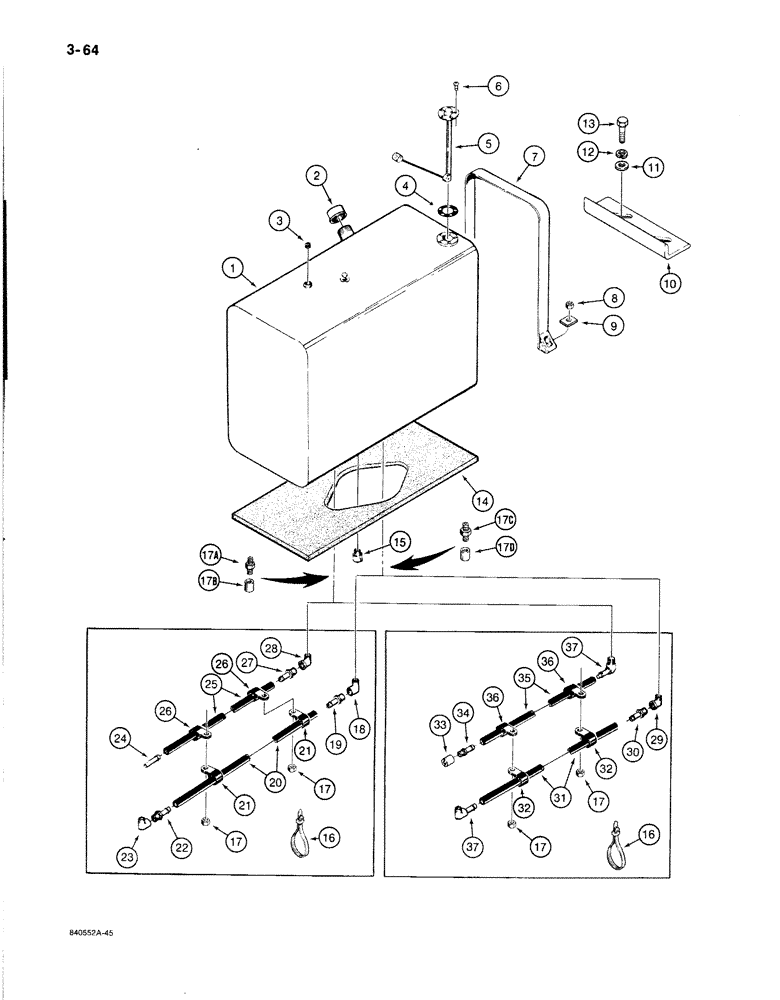

Схема запчастей Case 1080B - (3-64) - FUEL TANK AND LINES (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

1

S514118

FUEL TANK

TANK ASSEMBLY - diesel fuel, Includes: Ref. 2

1шт.

2

S66921

FILLER CAP

CAP - fuel tank

1шт.

3

221-662

PLUG,Hex Hd, 1/4"-18

- hex head, 1/4" NPT

1шт.

4

S49745

GASKET

GASKET - fuel guage

1шт.

5

S239445

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

6

182-147

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

- machine, No. 10 - 32 NF x 3/4", plated

5шт.

7

S93863

STRAP

- mounting, fuel tank

2шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

9

S108148

SPACER

- mounting strap

4шт.

10

S238105

ANGLE

- mounting, fuel tank

1шт.

11

S95569

WASHER

- flat, 1/2", special, plated

1шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

13

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

14

S224325

PAD

- fuel tank

1шт.

15

217-81

VALVE

- tank drain

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

17

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 18 NC, plated

2-3шт.

17a

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE), if used 1/4"-18 NPTF

1шт.

17b

221-336

COUPLING,Pipe, 1/4" NPT

if used Pipe, 1/4" NPT

1шт.

17c

217-1081

HYD CONNECTOR,3/8" - 18 NPTF

NIPPLE - 3/8" NPT, if used

1шт.

17d

221-337

COUPLING,Pipe, 3/8" NPT

- 3/8" NPT, if used

1шт.

18

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- 90 degree, at tank, used on models with case engine

1шт.

19

220-7

FITTING

- barb, straight, at tank, used on models with case engine

1шт.

20

REF

INSTRUCTION

HOSE - 3/8" (10 mm) ID x 96" (2438 mm) long, engine supply, cut from S118400, see below, used on models with case

1шт.

21

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

- hose, used on models with case engine

2шт.

22

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

- barb, straight, at engine, used on models with case

1шт.

23

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree, at engine, used on models with case

1шт.

24

S66490

TUBE

- engine return, used on models with case

1шт.

25

REF

INSTRUCTION

HOSE - 1/4" (6 mm) ID x 96" (2438 mm) long, engine return, cut from S118378, see below, used on models with case

1шт.

26

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose, used on models with case engine

2шт.

27

220-2

FITTING

- barb, straight, at tank, used on models with case engine

1шт.

28

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree, at tank, used on models with case engine

1шт.

29

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- 90 degree, engine supply hose, used on models with detroit diesel

2шт.

30

220-7

FITTING

- barb, straight, engine supply hose, used on models with detroit diesel

2шт.

31

REF

INSTRUCTION

HOSE - 3/8" (10 mm) ID x 135" (3429 mm) long, engine supply, cut from S118400, see below, used on models with detroit diesel

1шт.

32

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose, used on models with detroit diesel engine

3шт.

33

221-336

COUPLING,Pipe, 1/4" NPT

engine return line, used on models with detroit diesel Pipe, 1/4" NPT

1шт.

34

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

- barb, straight, at engine, used on models with detroit diesel

1шт.

35

REF

INSTRUCTION

HOSE - 3/8" (10 mm) ID x 108" (2743 mm) long, engine supply, cut from S118400, see below, used on models with detroit diesel

1шт.

36

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose, used on models with detroit diesel engine

3шт.

37

220-520

ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed

FITTING - barb, 90 degree, at tank, used on models with detroit diesel engine

2шт.

S118400

HOSE,0.38" ID x 300.00"

- Bulk length, Use to make Refs. 20, 31 and 35, Used on models with Detroit diesel engine 0.38" ID x 300.00"

1шт.

S118378

HOSE,0.25" ID BULK, SAE 30R2 Type 3

0.25" ID x 168.00" Bulk, SAE 30R2 Type 3 - Use to make Ref. 25, Used on models with Detroit diesel engine

1шт.
