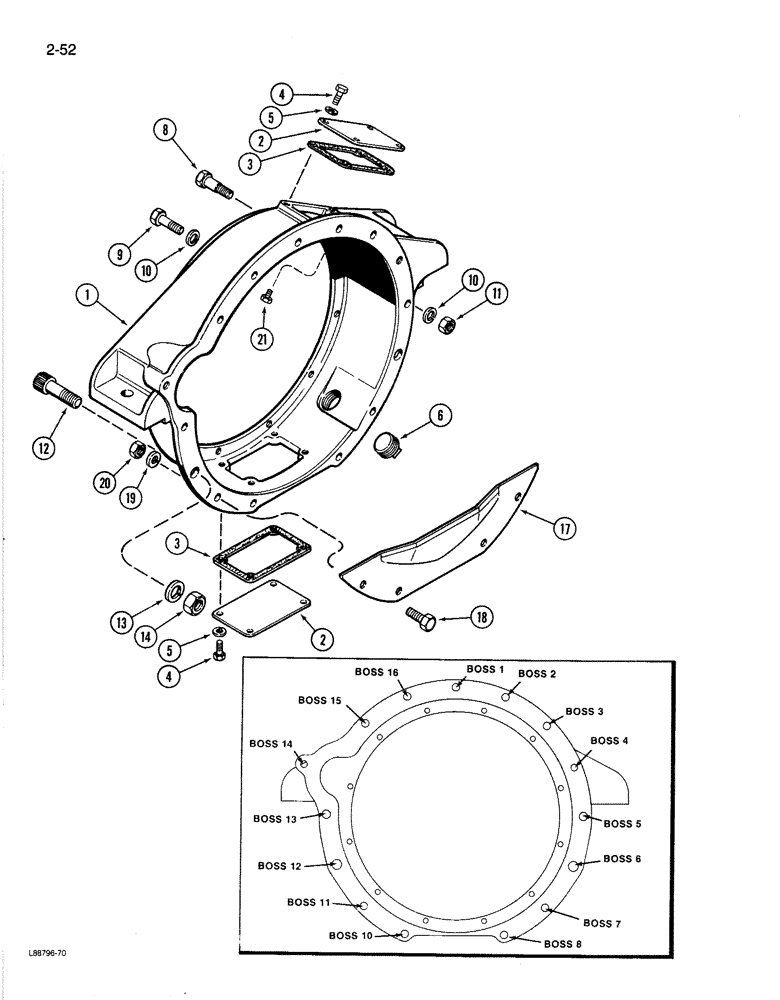

Запчасти Case 1080B (2-52) - FLYWHEEL HOUSING, 504BDT ENGINE (02) - ENGINE

1

A153190

HOUSING

ASSEMBLY - flywheel, Includes: Refs. 2-6

1шт.

2

A22584

COVER

PLATE - cover

2шт.

3

A22585

GASKET

- cover plate

2шт.

4

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

6

221-1017

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - pipe, square head, 1-1/4 inch

1шт.

8

A149765

STEP BOLT

BOLT - dowel, hex, special, 1/2 NC x 2-3/16 inch (Boss 13)

1шт.

8

A149764

STEP BOLT

BOLT - dowel, hex, special, 1/2 NC x 3 inch (Boss 5)

1шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Boss 1, 2 and 16) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

9

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(Boss 14) Hex, 1/2"-13 x 1 3/4", G5

1шт.

9

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch (Boss 3 and 15)

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

12

27846R1

12 PT SCREW,Flg, 3/4"-10 x 3"

BOLT - socket head, 3/4 NC x 3 inch, Grade 8 (Boss 6 and 12)

2шт.

13

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

14

129-137

NUT,3/4"-10, G5

2шт.

17

A58931

GUARD

SHIELD - dust, flywheel

1шт.

18

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Boss 7, 8, 10 and 11) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

21

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.
