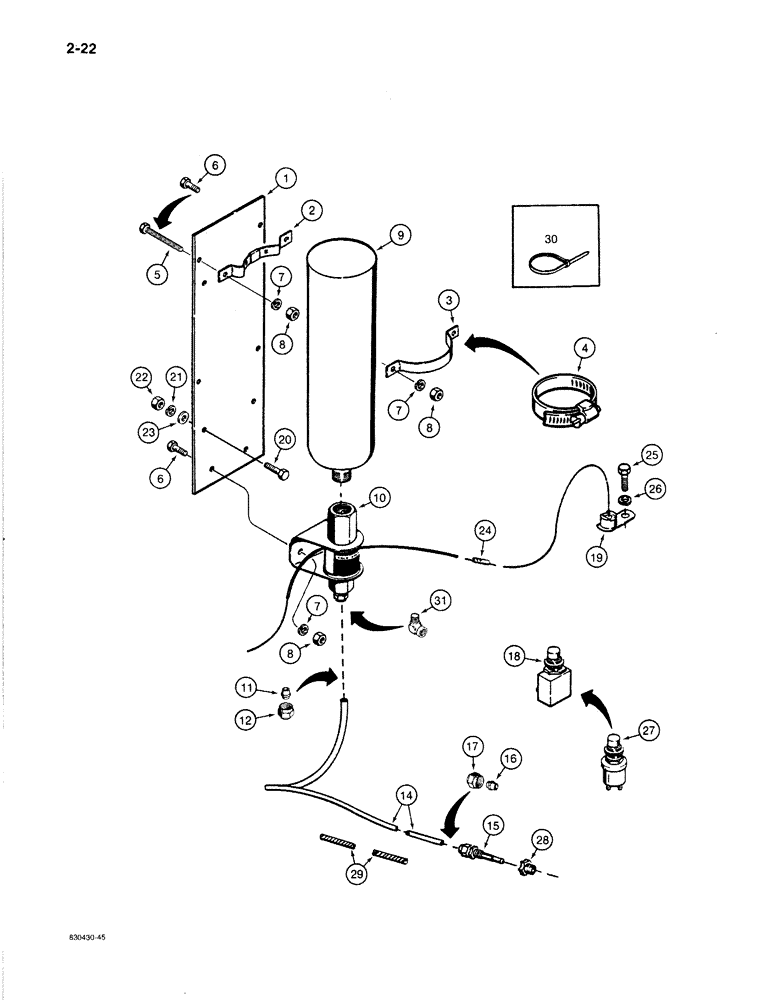

Запчасти Case 1080B (2-22) - COLD WEATHER STARTING SYSTEM (02) - ENGINE

S205216

THERMOSTART

KIT - cold weather starting, Includes: Refs. 1-22

1шт.

1

S116433

PLATE

- cylinder mounting

1шт.

2

L35279

BRACKET

- cylinder

2шт.

3

NSS

NOT SOLD SEPARAT

CLAMP - cylinder, order service clamp, Ref. 4, and two bolts, Ref. 6

2шт.

4

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - worn screw type, service replacement

2шт.

5

113-75

BOLT,Hex, 1/4" - 20 x 3", Gr 5, Full Thd

- hex head, 1/4" - 20 NC x 3", plated, if used

4шт.

6

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2-6шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

10шт.

8

129-141

JAM NUT,Jam, 1/4"-20, G5

10шт.

9

D55767

CYLINDER

- starting fluid

1шт.

S96079

VALVE

ASSEMBLY - starting fluid injection, Includes: Refs. 10-13

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - starting fluid injection

1шт.

11

222-650

SLEEVE,1/8" Tube, Comp

NPT, Brass 1/8" Tube, Comp

1шт.

12

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" NPT, brass 5/16"-24, 45º Fl, Comp

1шт.

13

L35283

PACKAGE, REPAIR

KIT - seal, valve repair, not shown

1шт.

14

REF

INSTRUCTION

TUBE - 1/8" OD x 60" (1524 mm) long, nylon, cut from S118583, see below

1шт.

D55946

JET

NOZZLE ASSEMBLY - cold start, Includes: Refs. 15-17

1шт.

15

NSS

NOT SOLD SEPARAT

NOZZLE - cold start

1шт.

16

222-650

SLEEVE,1/8" Tube, Comp

NPT, Brass 1/8" Tube, Comp

1шт.

17

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" NPT, brass 5/16"-24, 45º Fl, Comp

1шт.

18

NSS

NOT SOLD SEPARAT

SWITCH - push button, not used, order D34924, Ref. 27

1шт.

19

S116438

CASE

THERMOSTAT - circuit breaking

1шт.

20

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

22

9635082

NUT,5/16" - 18, Gr 5

4шт.

23

195-103

WASHER,5/16"

- flat, , plated, used as spacer 5/16"

1шт.

24

223-250

ROD, CONNECTING

CONNECTOR - electrical, female

1шт.

25

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

if used Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

1шт.

27

D34924

SWITCH

- push button, cold start

1шт.

28

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- nozzle to Detroit Diesel engine, if used

1шт.

29

REF

INSTRUCTION

LOOM - tube protection, 80" (2032 mm) long, cut from S118377, see below

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

31

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street, added to end of valve to change tube direction 90º, 1/8"-27 Female x 1/8"-27 Male

1шт.

S118583

LARGE HOSE

TUBE - 1/8" (3 mm) OD x 300" (7620 mm) long, nylon, use to make Ref. 14

1шт.

S118377

LOOM

- 240" (6096 mm) long, bulk roll, use to make Ref. 29

1шт.
