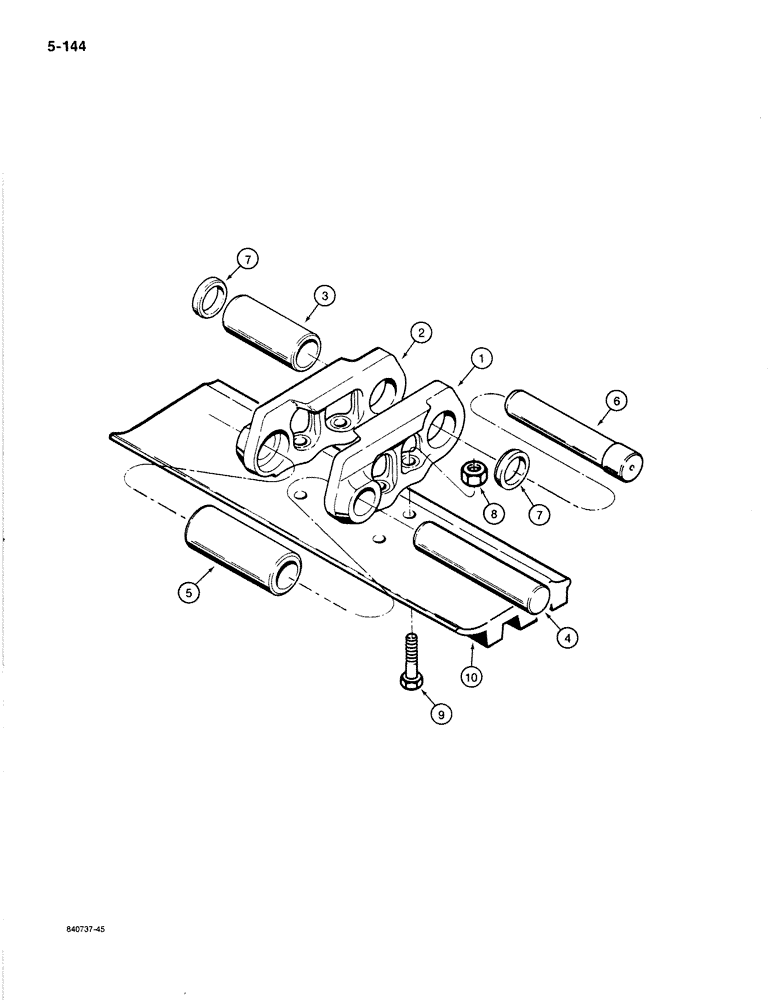

Запчасти Case 1080B (5-144) - TRACK SHOES, LINKS, AND PINS (11) - TRACKS/STEERING

S516384

TRACK ASSEMBLY - excavator, with 23-5/8" (600 mm) long track shoes, not available as a complete assembly, order component parts listed below

2шт.

S516385

TRACK ASSEMBLY - excavator, with 29-17/32" (750 mm) long track shoes, not available as a complete assembly, order component parts listed below, Includes: Refs. N13562 CHAIN ASSEMBLY and Refs. 1-10

2шт.

N13562

CHAIN (CE)

CHAIN ASSEMBLY - track, with 49 links, Includes: Refs. 1-7

1шт.

1

S105786

LINK ASSY.

LINK - track, right-hand

49шт.

2

S105787

LINK ASSY.

LINK - track, left-hand

49шт.

3

S105788

BUSHING

- master

1шт.

4

S105789

PIN

- standard

48шт.

5

S105790

BUSHING

- standard

48шт.

6

S105792

AXLE PIN

PIN - master

1шт.

7

S105791

COLLAR

SPACER - master bushing

2шт.

8

R25688

SQUARE NUT

- track shoe, special

196шт.

9

S89251

BOLT

- track shoe, special

196шт.

10

S105793

SHOE

- track, 23-5/8" (600 mm) long, triple grouser

49шт.

10

S115589

SHOE

- track, 29-17/32" (750 mm) long, triple grouser

49шт.
