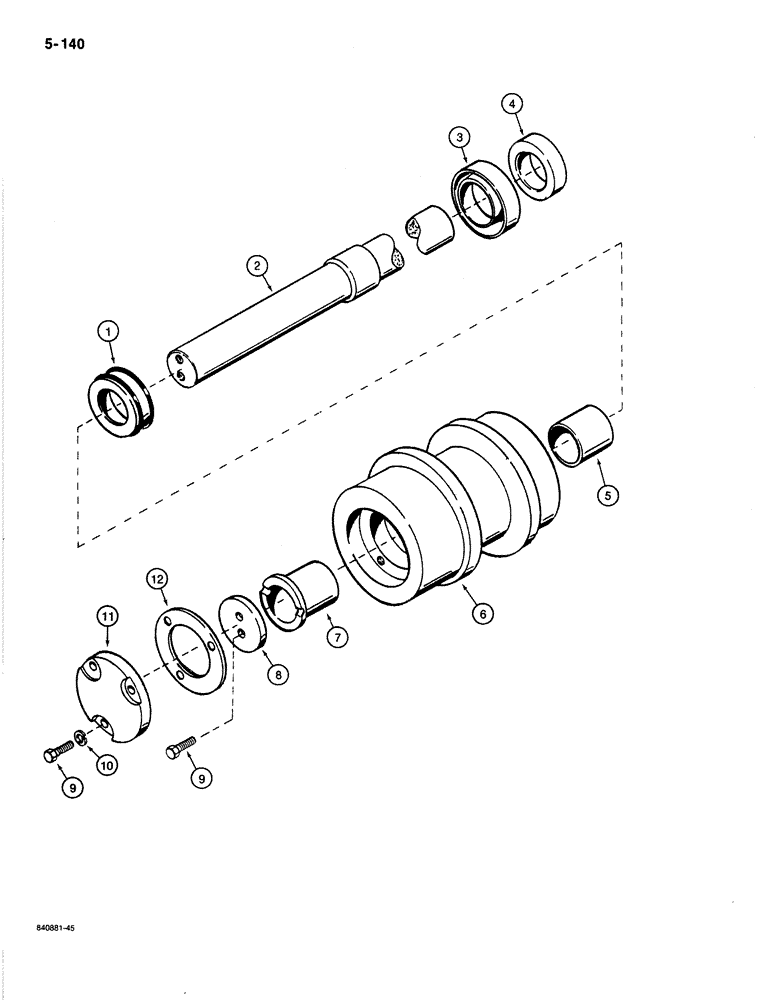

Запчасти Case 1080B (5-140) - TRACK CARRIER ROLLER, *TYPE 1 (11) - TRACKS/STEERING

S233033

ROLLER

CARRIER ASSEMBLY - roller, track, Includes: Refs. 1-12

4шт.

1

R33607

SEAL

- roller

1шт.

S115319

SHAFT

ASSEMBLY - roller, Includes: Refs. 2 and 3

1шт.

2

S115320

SHAFT

- roller

1шт.

3

R33962

RETAINER

SLEEVE - shaft

1шт.

4

S115322

SPACER

- inner

1шт.

S115317

ROLLER

SHELL ASSEMBLY - roller, Includes: Refs. 5-7

1шт.

5

R33958

BUSHING

- inner

1шт.

6

S115318

SHELL

- roller

1шт.

7

R33951

BUSHING

- outer

1шт.

8

R33960

PLATE

WASHER - thrust, roller

1шт.

9

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

5шт.

10

D32117

COPPER WASHER

WASHER, COPPER, Special

3шт.

11

R33959

CYLINDER END CAP

COVER - outer

1шт.

12

R33964

GASKET

- cover

1шт.

TYPE I = INTERTRACK SEE COMMENTS ON FIGURE 5-138

1шт.
