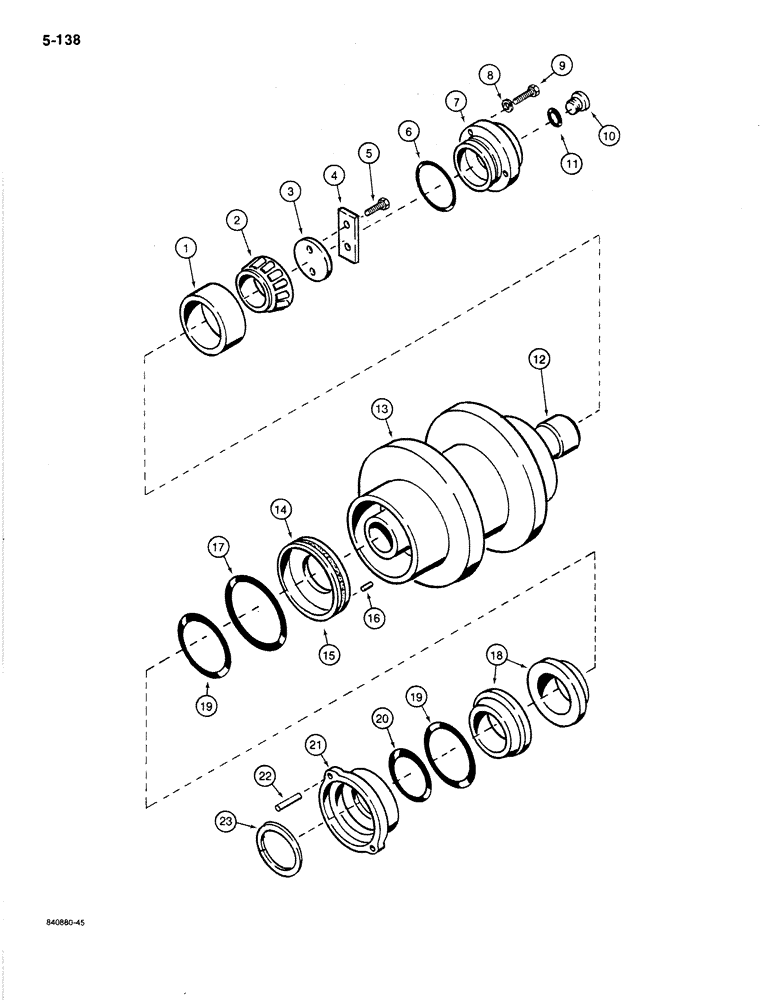

Запчасти Case 1080B (5-138) - TRACK CARRIER ROLLER, *TYPE C (11) - TRACKS/STEERING

S233033

ROLLER

CARRIER ASSEMBLY - roller, track, Includes: Refs. 1-23

4шт.

1

S115336

ROLLER BEARING

CUP - bearing

2шт.

2

S115335

BEARING, ROLLER

BEARING - tapered roller, roller

2шт.

3

S115326

PLATE

- retainer

1шт.

4

S115325

LOCK

PLATE - lock

1шт.

5

28-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8, Full Thd

BOLT - hex head, 3/8" -24 NF x 7/8", grade 8

2шт.

6

S115324

SEAL

O-RING - cover

1шт.

7

S115323

SPACER

COVER - outer

1шт.

8

192-161

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- hex head, 3/8" -16 NC x 7/8", grade 8

3шт.

10

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Cover, Incl Ref 11 Hex Soc, 3/4"-16 ORB

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

12

S115327

SHAFT

- roller

1шт.

13

S115328

ROLLER

CARRIER - roller, track

1шт.

14

S115337

CORK

- inner

1шт.

S115329

SUPPORT

ASSEMBLY - inner, Includes: Refs. 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

SUPPORT - inner

1шт.

16

S115330

DOWEL

PIN - dowel, support

2шт.

17

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- inner, large

1шт.

S95098

SEAL

KIT - oil seal, roller, Includes: Refs. 18, 19

1шт.

18

NSS

NOT SOLD SEPARAT

RETAINER - seal

2шт.

19

S97896

RING

SEAL - oil, rubber

2шт.

20

S115334

SEAL,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- collar

1шт.

S115332

COLLAR

ASSEMBLY - roller, Includes: Refs. 21, 22

1шт.

21

NSS

NOT SOLD SEPARAT

COLLAR - roller

1шт.

22

S115333

DOWEL

PIN - dowel, collar

2шт.

23

S115331

RING

- inner

1шт.

TO IDENTIFY TYPE OF TRACK HAVE DEALER OPERATOR CHECK TRACK BLADE NEXT TO UNIT S/N PLATE. S233033 IS TOTALLY INTERCHANGEABLE AS ON ASSEMBLY REGARDLESS OF MANUFACTURER.

1шт.

TYPE C IS CAT (TOP OF FIGURE UNDER TRACK) CARRIER ROLLER

1шт.
