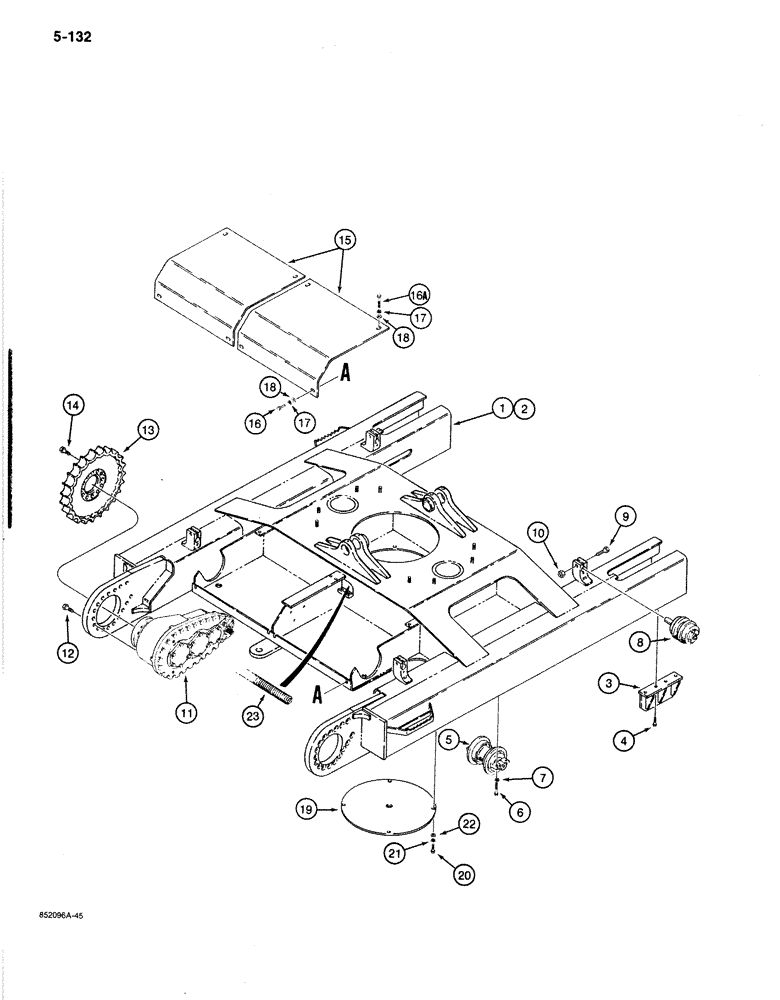

Запчасти Case 1080B (5-132) - TRACK FRAMES AND UNDERCARRIAGE (11) - TRACKS/STEERING

1

S956791

FRAME

AND UNDERCARRIAGE - track, models without leveler

1шт.

2

S956786

FRAME

AND UNDERCARRIAGE ASSEMBLY - track, models with leveler, parts list Figure 9-292

1шт.

3

S241924

GUIDE

- track chain

4шт.

4

813-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

16шт.

5

S227591

ROLLER

ASSEMBLY - track, lower, parts list Figure 5-142

16шт.

6

813-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

- hex head, 16 mm - 2 x 90 mm, plated, if used

64шт.

7

892-1016

LOCK WASHER,M16

WASHER - lock, 16 mm

64шт.

8

S233033

ROLLER

CARRIAGE ASSEMBLY - roller, upper, parts list Figure 5-138 and 5-140

4шт.

9

814-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8

- hex head, 20 mm - 2.5 mm, plated

4шт.

10

825-1120

NUT,M20, Cl 8

- hex, 20 mm - 2.5

4шт.

BRACKET WHERE 9 & 10 GO IN IS S241922-NSS- SEND PRINT TO DEALER TO MAKE UP LOCALLY

1шт.

11

S618764

TRANSMISSION

ASSEMBLY - final drive, parts list Figure 6-148

2шт.

12

826-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9

- hex head, 20 mm - 2.5 x 65 mm, class 10.9, plated

34шт.

13

S956758

SPROCKET ASSY.

SPROCKET - track, drive

2шт.

14

826-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

- hex head, 20 mm - 2.5 x 50 mm, class 10.9, plated

24шт.

15

S516382

COVER

- transmission drive motors

2шт.

16

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 30 mm, plated

4шт.

16a

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex head, 12 mm - 1.75 x 45 mm, plated

4шт.

17

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

8шт.

18

895-15012

WASHER,M12 x 28 x 2.5

- flat, 12 mm, 28 mm OD

8шт.

19

S516387

COVER

- lower swivel guard

1шт.

20

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

21

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

4шт.

22

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

23

REF

INSTRUCTION

CONDUIT - 1" (25 mm) ID x 60" (1524 mm) long, edge guard, cut from S118481, see below

1шт.

S118481

PACKAGE

CONDUIT - 1" (25 mm) ID x 60" (1524 mm) long, edge guard, bulk length, use to make Ref. 23

1шт.
