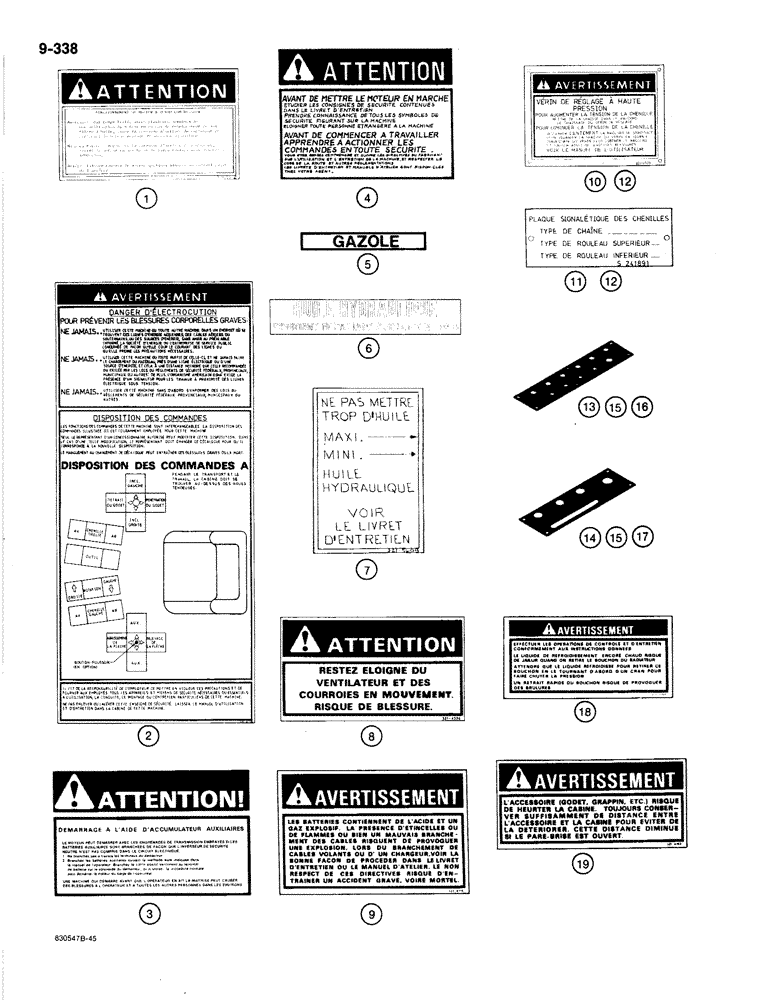

Запчасти Case 1080B (9-338) - DECALS, SPECIAL FRENCH LANGUAGE DECAL (09) - CHASSIS

1

321-5712

PRODUCT GRAPHIC

DECAL - turbocharger operating precautions

1шт.

Part of French Decal Kit, P/N S618734

1шт.

2

321-6712

DECAL

- Control Pattern A, standard

1шт.

Part of French Decal Kit, P/N S618734

1шт.

3

321-5581

DECAL

- Warning, starting precautions

1шт.

Part of French Decal Kit, P/N S618734

1шт.

4

321-4020

DECAL

- Warning, safe operation

1шт.

Part of French Decal Kit, P/N S618734

1шт.

5

321-6146

DECAL

- diesel fuel

1шт.

Part of French Decal Kit, P/N S618734

1шт.

6

321-5152

DECAL

- hydraulic oil filter

1шт.

Part of French Decal Kit, P/N S618734

1шт.

7

321-5608

DECAL

- hydraulic oil level

1шт.

Part of French Decal Kit, P/N S618734

1шт.

8

321-4324

DECAL

- Warning, engine fan

3шт.

Part of French Decal Kit, P/N S618734

1шт.

9

321-6719

DECAL

- Warning, battery

1шт.

Part of French Decal Kit, P/N S618734

1шт.

10

321-6509

DECAL

- Warning, track adjustment cylinder

2шт.

11

S241891

PLATE

DECAL - Identification, track type

1шт.

12

S23395

SCREW

- drive, No. 7 - 32 NC x 5/16", not shown

10шт.

13

321-6098

PANEL

DECAL - instrument panel, left-hand console

1шт.

14

321-6097

PANEL

DECAL - instrument panel, right-hand console

1шт.

14

321-6457

DECAL

- instrument panel, right-hand console, Detroit Diesel engine only

1шт.

15

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, No. 10 - 24 NC x 3/4", black, not shown

10шт.

16

S117167

CLIP

NUT - U-type, No. 10 - 24 NC, not shown

6шт.

17

86632551

NUT,#10-24, GB

NUT, LOCK, , Not shown #10-24, GB

4шт.

18

321-6701

DECAL

- Warning, cooling system

1шт.

19

321-6702

DECAL

- Warning, cab

1шт.

S618734

KIT

- decal, French, includes Refs. 1 - 9, also includes Refs. on Figure 9-332

1шт.
