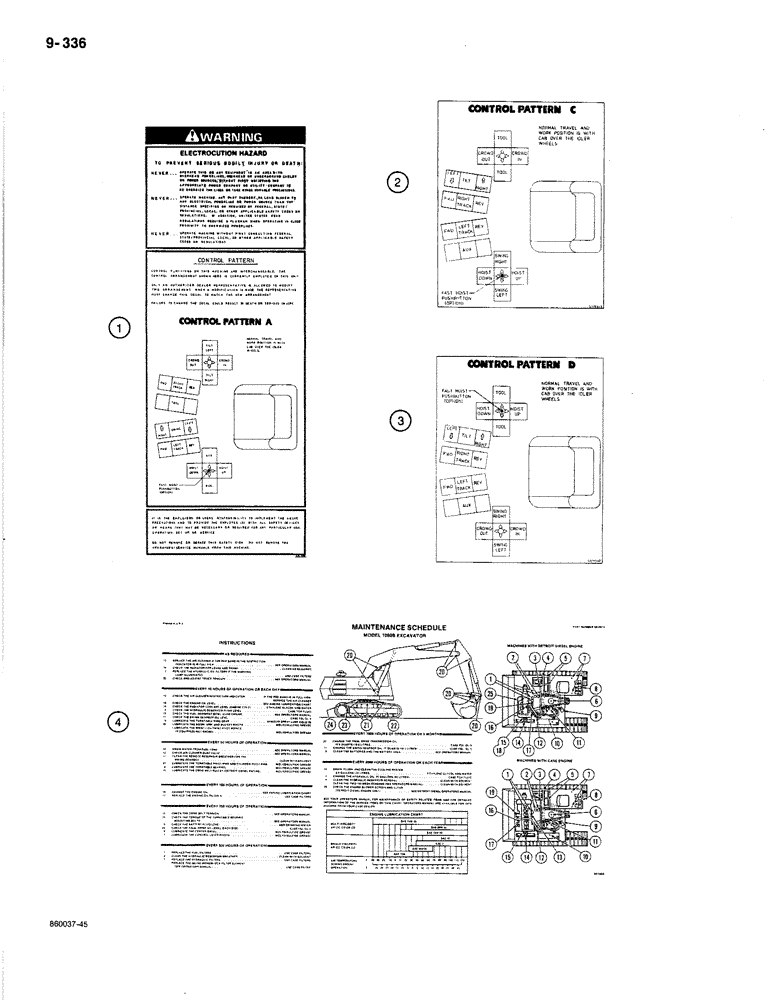

Запчасти Case 1080B (9-336) - DECALS (09) - CHASSIS

1

321-6711

DECAL

- control pattern A, standard, includes warning messages, Includes: Ref. 1A

1шт.

Part of English Decal Kit, P/N S618733

1шт.

1a

S516975

DECAL

- control pattern A, standard, lever pattern portion only, not shown separtely

1шт.

S618149

KIT - decal, Control Pattern C, optional, Includes: Ref. 2

1шт.

2

S516949

DECAL

- Control Pattern C, optional

1шт.

NSS

NOT SOLD SEPARAT

INSTRUTION SHEET - Kit

1шт.

S618150

KIT - decal, Control Pattern D, optional, Includes: Ref. 3

1шт.

3

S516950

DECAL

- Control Pattern D, optional

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTION SHEET - Kit

1шт.

4

S619012

DECAL

- maintenance schedule

1шт.

S618733

KIT

- decal, English, includes Ref. 1, also includes Refs. on Figure 9-332 and 9-334

1шт.
