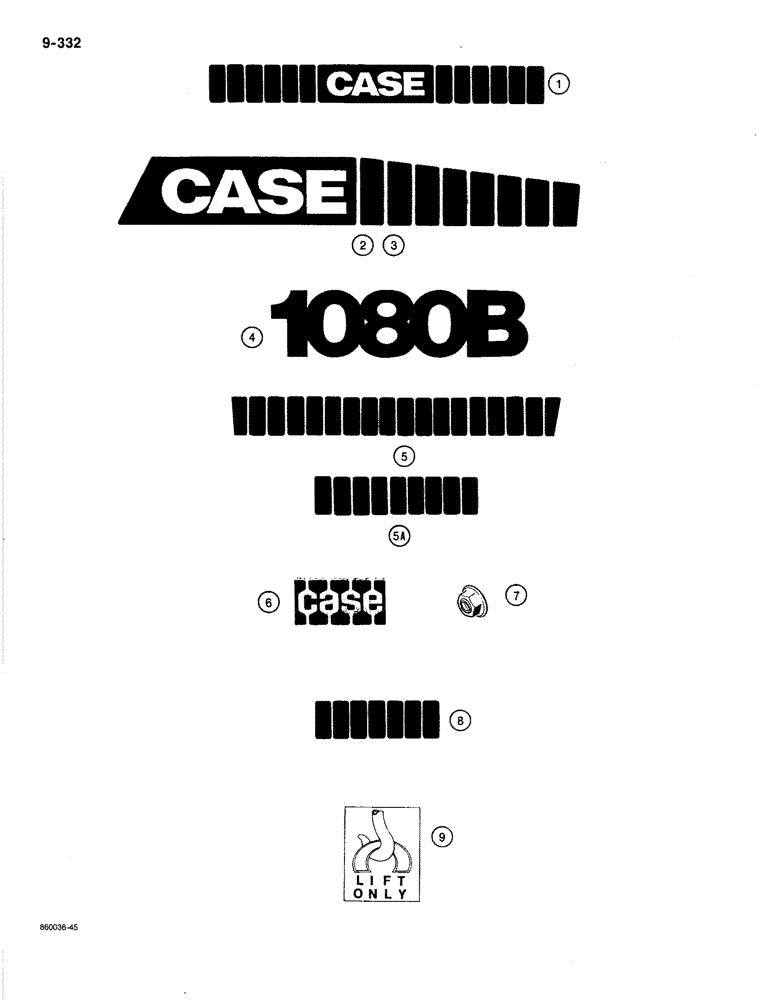

Запчасти Case 1080B (9-332) - DECALS (09) - CHASSIS

1

S515844

DECAL

- Case, with treads, rear

1шт.

Part of French Decal Kit, P/N S618734

1шт.

Part of English Decal Kit, P/N S618733

1шт.

2

S618719

PRODUCT GRAPHIC

DECAL - Case, with treads, right-hand side of boom

1шт.

Part of French Decal Kit, P/N S618734

1шт.

Part of English Decal Kit, P/N S618733

1шт.

3

S618718

PRODUCT GRAPHIC

DECAL - Case, with treads, left-hand of boom

1шт.

Part of French Decal Kit, P/N S618734

1шт.

Part of English Decal Kit, P/N S618733

1шт.

4

S516429

PRODUCT GRAPHIC

DECAL - 1080B, right-hand and left-hand sides

2шт.

Part of French Decal Kit, P/N S618734

1шт.

Part of English Decal Kit, P/N S618733

1шт.

5

S516085

DECAL

- treads, right-hand side

1шт.

Part of French Decal Kit, P/N S618734

1шт.

Part of English Decal Kit, P/N S618733

1шт.

5a

S516993

DECAL

- traeds, left-hand side

1шт.

Part of French Decal Kit, P/N S618734

1шт.

Part of English Decal Kit, P/N S618733

1шт.

6

321-4739

EMBLEM

- Case, medallion, metal

1шт.

7

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push, attaches emblem to cab

2шт.

8

S241197

DECAL

- treads, right front shroud

1шт.

Part of French Decal Kit, P/N S618734

1шт.

Part of English Decal Kit, P/N S618733

1шт.

9

321-3587

DECAL

- lift only

4шт.

Part of French Decal Kit, P/N S618734

1шт.

Part of English Decal Kit, P/N S618733

1шт.

S618733

KIT

- decal, English, includes Refs. 1, 2, 3, 4, 5, 5A, 8 and 9 also includes Refs. on Figure 9-334 and 9-336

1шт.

S618734

KIT

- decal, French, includes Refs. 1, 2, 3, 4, 5, 5A, 8 and 9 also includes Refs. on Figure 9-338

1шт.
