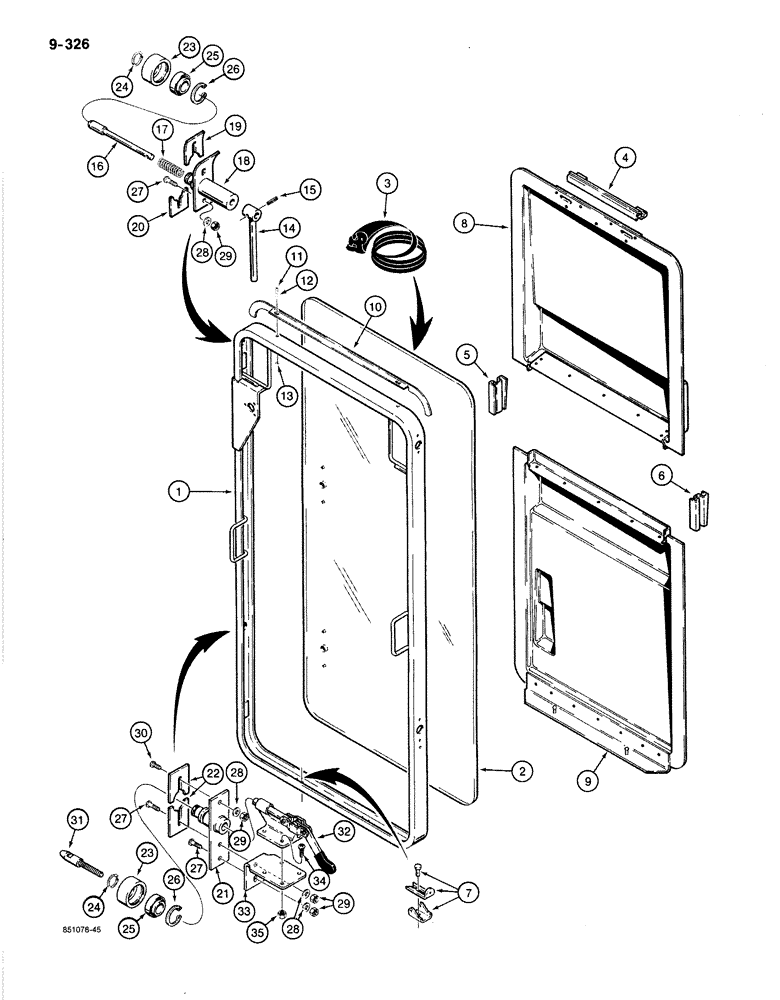

Запчасти Case 1080B (9-326) - CAB WINDSHIELD (09) - CHASSIS

S619252

CAB

ASSEMBLY - operator's, includes parts list Figure 9-322 - 9-330, Includes: Refs. 1-36

1шт.

1

N13089

FRAME

- windshield

1шт.

2

S617808

GLASS,CAB

GLASS - windshield

1шт.

FIGURE 2 28.3 WIDE 61.5 LONG

1шт.

3

S118478

SEAL

- glass, windshiels, 180" (4572 mm) long

1шт.

4

N60101

RETAINER

- vandal guard, upper

1шт.

5

N60287

RETAINER

- vandal guard, left-hand

1шт.

6

N60288

RETAINER

- vandal guard, right-hand

1шт.

7

N60093

RETAINER

- vandal guard, lower

2шт.

8

S616525

GUARD

- vandal, upper

1шт.

9

S616524

GUARD

- vandal, lower

1шт.

10

N13111

RETAINER

SUPPORT - windshield glass seal, upper

1шт.

11

182-526

SCREW,Cross Pan Hd, #10 - 24 x 3/8"

- machine, pan Phillips head, No. 10 - 24 NC x 3/8", plated

2шт.

12

195-513

WASHER,#10

- flat, No. 10, plated

2шт.

13

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

14

S239621

HANDLE

- windshield lock, upper

2шт.

15

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.

16

S239677

PIN

- roller, upper, windshield lock

2шт.

17

A58271

SPRING

- lock pin, upper

2шт.

18

N13093

SHAFT

BRACKET - support, upper roller

2шт.

19

S118726

SHIM

- upper roller bracket, curved

1шт.

20

S118727

SHIM

- upper roller bracket, straight

1шт.

21

N13092

SHAFT

BRACKET - support, lower roller

2шт.

22

S118725

SHIM

- lower roller bracket

1шт.

23

N13090

ROLLER

- windshield track

4шт.

24

T25683

SNAP RING,#75, Ext

RING, Snap, , roller #75, Ext

4шт.

25

N13107

BEARING, BALL,0.754" ID x 1.38" OD x 0.375"

BEARING - ball, roller

4шт.

26

R22120

SNAP RING,1.312", Int, #131

Ring, Snap, , ball brg 1.312", Int, #131

4шт.

27

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

- machine, pan head slotted, 1/4" -20 NC x 3/4", plated

8шт.

28

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

10шт.

29

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

10шт.

30

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

- machine, pan head slotted, 1/4" -20 NC x 5/8", plated, lower roller, upper shim mounting

1шт.

31

N13108

PIN

- lower roller

2шт.

32

N13109

LEVER

- bracket, lower roller, pin release

2шт.

33

N13110

BRACKET

- lower lever to windshield frame

2шт.

34

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- machine, pan Phillips head, No. 10 - 24 NC x 5/8", plated

8шт.

35

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

8шт.

36

REF

INSTRUCTION

SEAL - windshield frame to cab, 63" (1600 mm) long, cut from S118480, see below

1шт.

S118480

SEAL

SEAL - windshield bulk, 50 ft. (15.24 mm) long

1шт.
