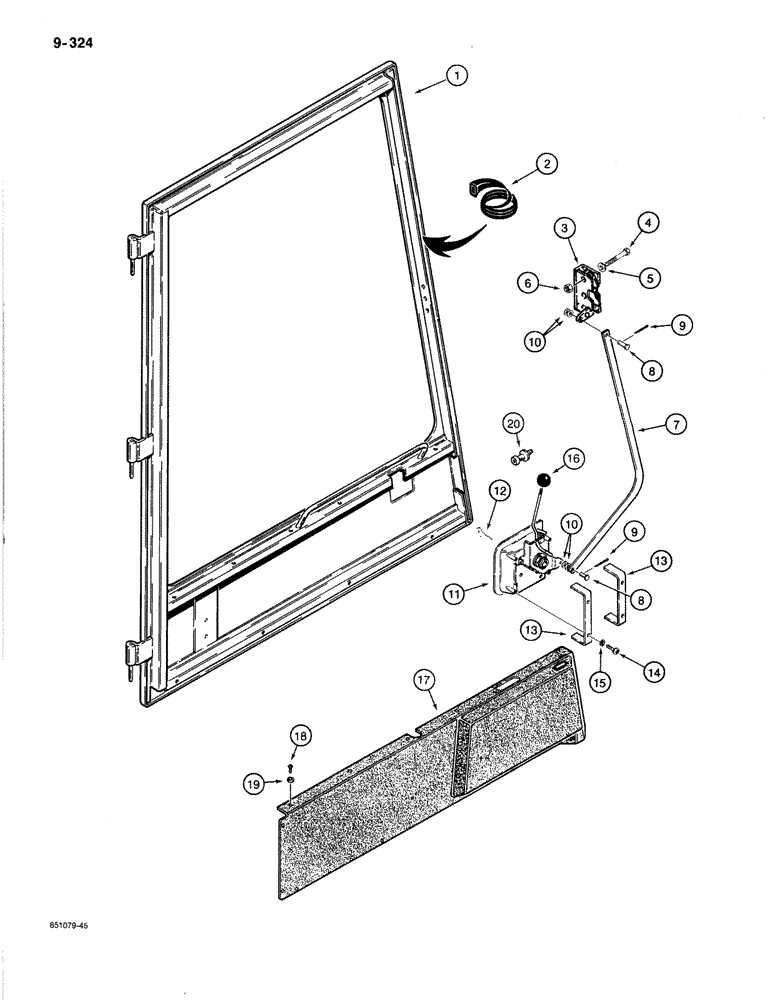

Запчасти Case 1080B (9-324) - CAB DOOR ASSEMBLY (09) - CHASSIS

S619252

CAB

ASSEMBLY - operator's, includes parts on Figure 9-322 - 9-330

1шт.

N13073

DOOR ASSY.

DOOR ASSEMBLY - cab, also includes Refs. 1 and 4 on Figure 9-322, Includes: Refs. 1-19

1шт.

1

N13094

DOOR

- cab

1шт.

2

S119612

DOOR SEAL

- 202" (5131 mm) long, door edge

1шт.

3

N60267

LATCH

- door, uper, rotary

1шт.

4

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

5

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

3шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

3шт.

7

N13097

ROD ASSY.

ROD - latch, release

1шт.

8

K912968

PIN

- clevis, rod

2шт.

9

136-158

COTTER PIN,Int, 9/64" x .054"

PIN - hair, 1-1/8" long, plated

2шт.

10

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

4шт.

11

N13098

HANDLE

LATCH ASSEMBLY - door, includes one key, Includes: Ref. 12

1шт.

12

N13118

KEY

- door latch

1шт.

13

N13099

RETAINER

- door latch

2шт.

14

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

- machine, oval Phillips head, No. 10 - 24 NC x 5/8", plated

4шт.

15

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

16

D60437

KNOB

- door latch

1шт.

17

N13096

PANEL

COVER - door latch, lower door

1шт.

18

179-153

SCREW,Cross Oval Hd, #10 - 24 x 1/2"

- machine, oval Phillips head, No. 10 - 24 NC x 1/2", plated

12шт.

19

F63765

WASHER

- shoulder

12шт.

20

S119611

PLATE

STRIKER - door latch

1шт.
