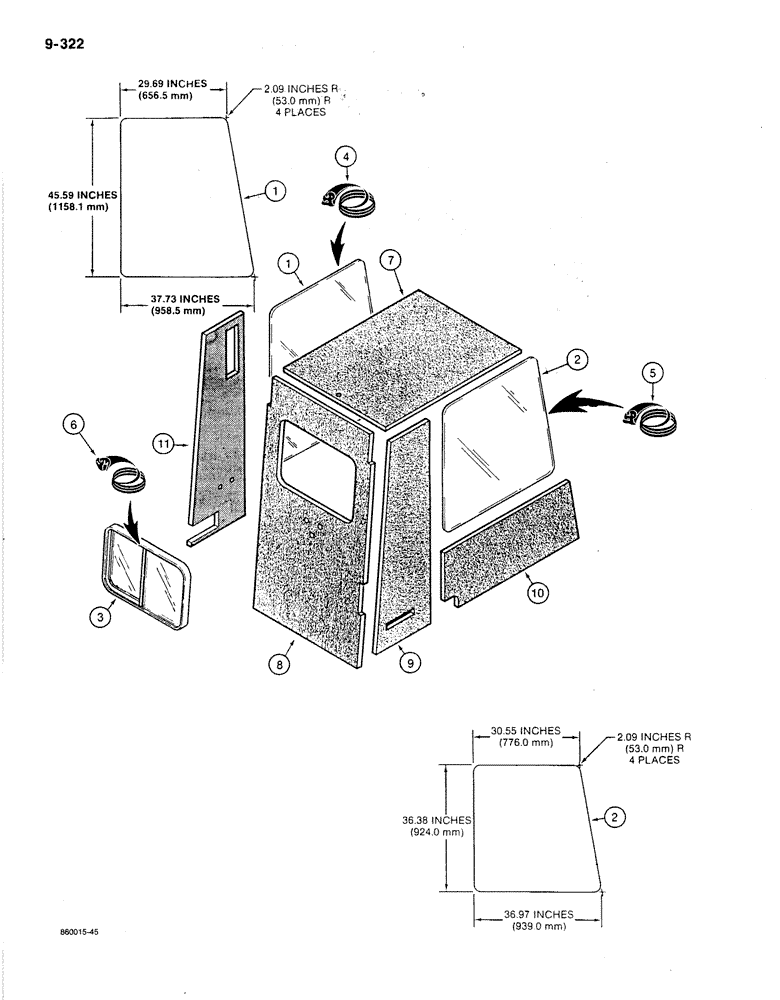

Запчасти Case 1080B (9-322) - CAB WIBNDOWS, SEALS, AND INSULATION (09) - CHASSIS

S619252

CAB

ASSEMBLY - operator's, includes parts on Figure 9-330, Includes: Refs. 1-11

1шт.

1

REF

INSTRUCTION

GLASS - window, in door

1шт.

2

REF

INSTRUCTION

GLASS - window, right-hand

1шт.

3

S516738

WINDOW

- sliding, rear

1шт.

4

REF

INSTRUCTION

SEAL - window glass, used with cab door window, 157-5/8" (4003 mm) long, cut from S118468, see below

1шт.

5

REF

INSTRUCTION

SEAL - window glass, used with right-hand cab window, 137-3/16" (3485 mm) long, cut from S118468, see below

1шт.

6

REF

INSTRUCTION

SEAL - window glass, used with rear sliding window, 84-11/16" (2151 mm) long, cut from N6492, see below

1шт.

7

S241506

INSULATOR

INSULATION - cab, top

1шт.

Ref. 7 THIS CAB ROOF LINER SHOULD HAVE A CUT OUT FOR A SUN ROOF PER THE VENDOR'S PRINT. THE LINER WITHOUT SUN ROOF CUT OUT IS 122813A1 PER BOB TUSZKA - WAUSAU ENGINEERING 12-11-92.

1шт.

8

N13078

INSULATOR

INSULATION - cab. rear

1шт.

9

N13077

INSULATOR

INSULATION - cab, right-hand, rear

1шт.

10

S241505

INSULATOR

INSULATION - cab, right-hand, front

1шт.

11

N13080

INSULATOR

INSULATION - cab, left-hand, rear

1шт.

S118468

SEAL

- 50 ft. (1524 cm) long, window glass, use to make Refs. 4 and 5

1шт.

N6492

GASKET

- 50 ft. (1524 cm) long, bulk, use to make Ref. 6

1шт.
