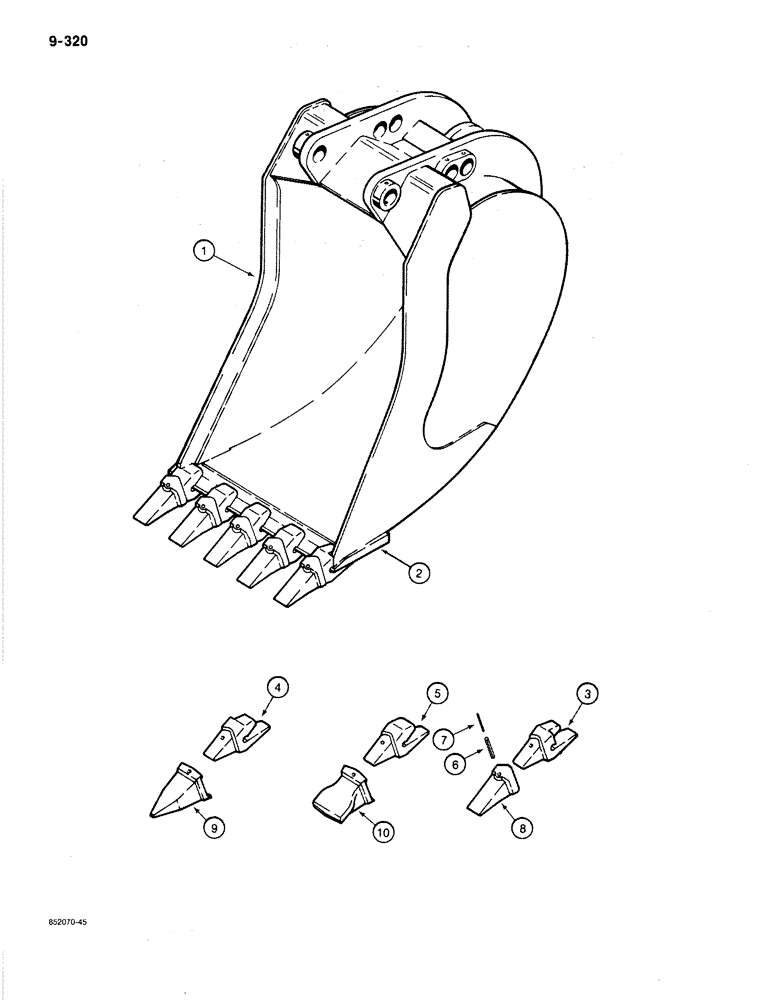

Запчасти Case 1080B (9-320) - BACKHOE BUCKETS, HIGH CAPACITY (09) - CHASSIS

1

S618698

BUCKET ASSEMBLY - 36" (914 mm) wide, high capicity, machinery item, order from Machinery Price List, Includes: Refs. 2-10

1шт.

2

S239201

EDGE

PLATE - cutting edge, 36" (914 mm) wide, high capacity bucket

1шт.

3

S615006

SHANK, BUCKET TOOTH

SHANK - tooth, right-hand

1шт.

4

S615007

SHANK, BUCKET TOOTH

SHANK - tooth, left-hand

1шт.

5

S615005

SHANK, BUCKET TOOTH

SHANK - tooth, center

3шт.

S239749

ROLL PIN

PIN ASSEMBLY - roll, tooth point, Includes: Refs. 6 and 7

5шт.

6

138-214

LOCK PIN,1/2" x 4", Slotted

PIN - roll, 7/16" x 4", plated

1шт.

7

REF

INSTRUCTION

PLUG - 4" (102 mm) long, rubber, cut from S119223, see below

1шт.

8

S615004

POINT

- tooth, standard

5шт.

9

S615023

POINT

- tooth, rock, optional

5шт.

10

S615022

POINT

- tooth, spade, optional

5шт.

S119223

RUBBER

PLUG - 48" (1219 mm) long strip, rubber, use to make Ref. 7

1шт.
