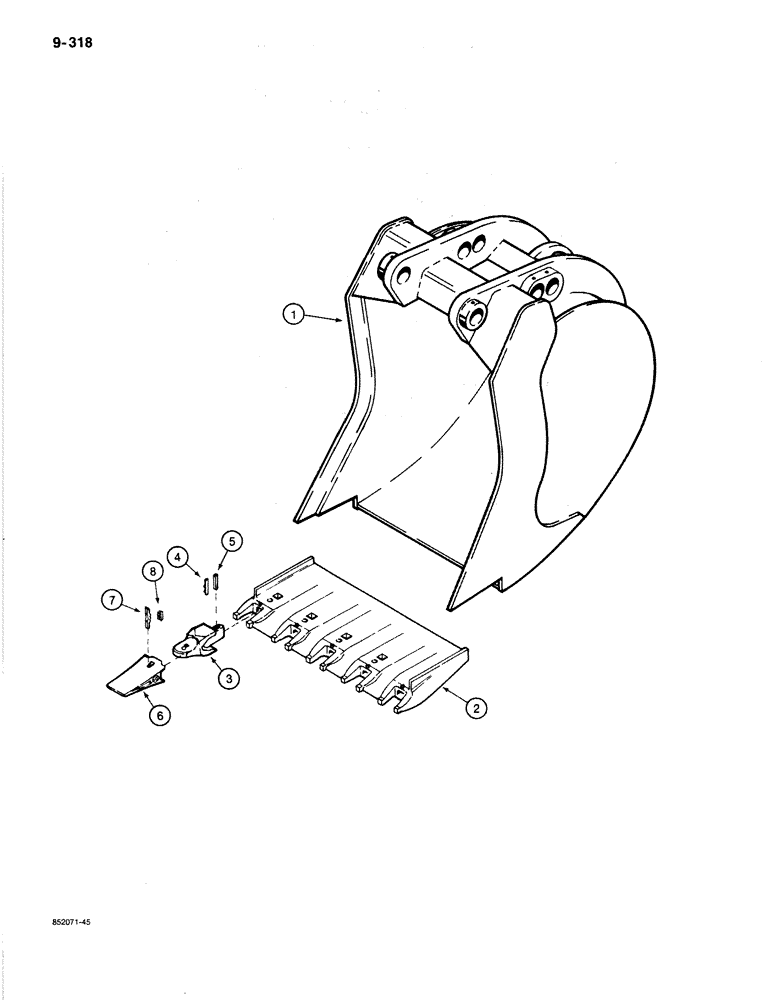

Запчасти Case 1080B (9-318) - BACKHOE BUCKETS, SEVERE DUTY (09) - CHASSIS

1

S618699

BUCKET ASSEMBLY - 25" (635 mm) wide, severe duty, machinery item, order from Machinery Price List

1шт.

1

S618700

BUCKET ASSEMBLY - 36" (914 mm) wide, severe duty, machinery item, order from Machinery Price List, Includes: Refs. 2 (P/N S98400), 2 (P/N S98402), and 3-8

1шт.

IF CUSTOMER HAS BUCKET S956736 REFER TO PRINT S241776 FOR TEETH #5

1шт.

2

S98400

EDGE

PLATE - cutting edge, 25" (635 mm) wide, severe duty bucket

1шт.

2

S98402

LIP

PLATE - cutting edge, 36" (914 mm) wide, severe duty bucket

1шт.

3

S96432

NIPPLE, LUBE

SHANK - tooth

1шт.

4

S110285

WEDGE

- tooth shank

1шт.

5

S110286

SPOOL

- tooth shank

1шт.

6

S96431

POINT

- tooth

1шт.

7

S96434

PIN

- retainer, tooth point

1шт.

8

S96433

LOCK

- retainer pin

1шт.
