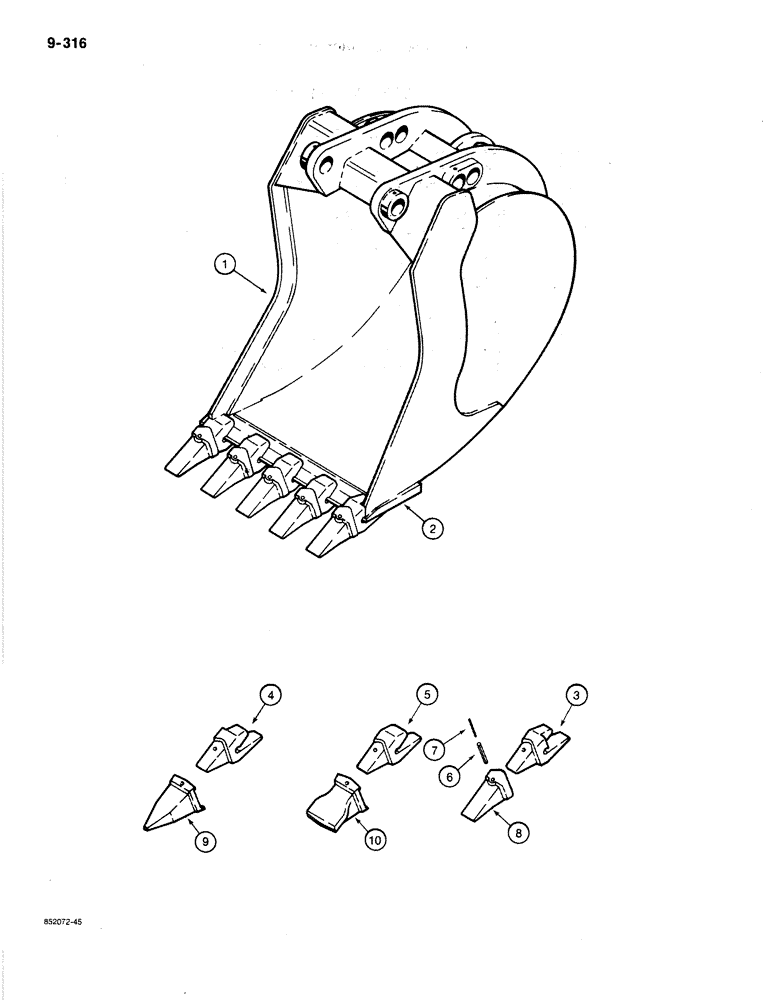

Запчасти Case 1080B (9-316) - BACKHOE BUCKETS, GENERAL PURCHASE (09) - CHASSIS

1

S618694

BUCKET ASSEMBLY - 25" (635 mm) wide, general purpose, machinery item, order from Machinery Price List

1шт.

1

S618695

BUCKET ASSEMBLY - 30" (762 mm) wide, general purpose, machinery item, order from Machinery Price List

1шт.

1

S618696

BUCKET ASSEMBLY - 36" (914 mm) wide, general purpose, machinery item, order from Machinery Price List, Includes: Refs. all 2s and 3-8

1шт.

2

S239195

EDGE

PLATE - cutting edge, 25" (635 mm) wide, general purpose bucket

1шт.

2

S239196

EDGE

PLATE - cutting edge, 30" (762 mm) wide, general purpose bucket

1шт.

2

S239197

EDGE

PLATE - cutting edge, 36" (914 mm) wide, general purpose bucket

1шт.

2

S239198

PLATE - cutting edge, 42" (1066 mm) wide, general purpose bucket

1шт.

3

S615010

SHANK

- tooth, right-hand

1шт.

4

S615011

SHANK

- tooth, left-hand

1шт.

5

S615009

SHANK

- tooth, center

1шт.

S239750

ROLL PIN

PIN ASSEMBLY - roll, tooth point, Includes: Refs. 6 and 7

1шт.

6

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, 1/2" x 3", Slotted

1шт.

7

REF

INSTRUCTION

PLUG - 3" (76 mm) long, rubber, cut from S119223, see below

1шт.

8

S615008

POINT

- tooth, standard

1шт.

9

S615025

POINT

- tooth, rock, optional

1шт.

10

S615024

POINT

- tooth, spade, optional

1шт.

S119223

RUBBER

PLUG - 48" (1219 mm) long strip, rubber, use to make Ref. 7

1шт.
