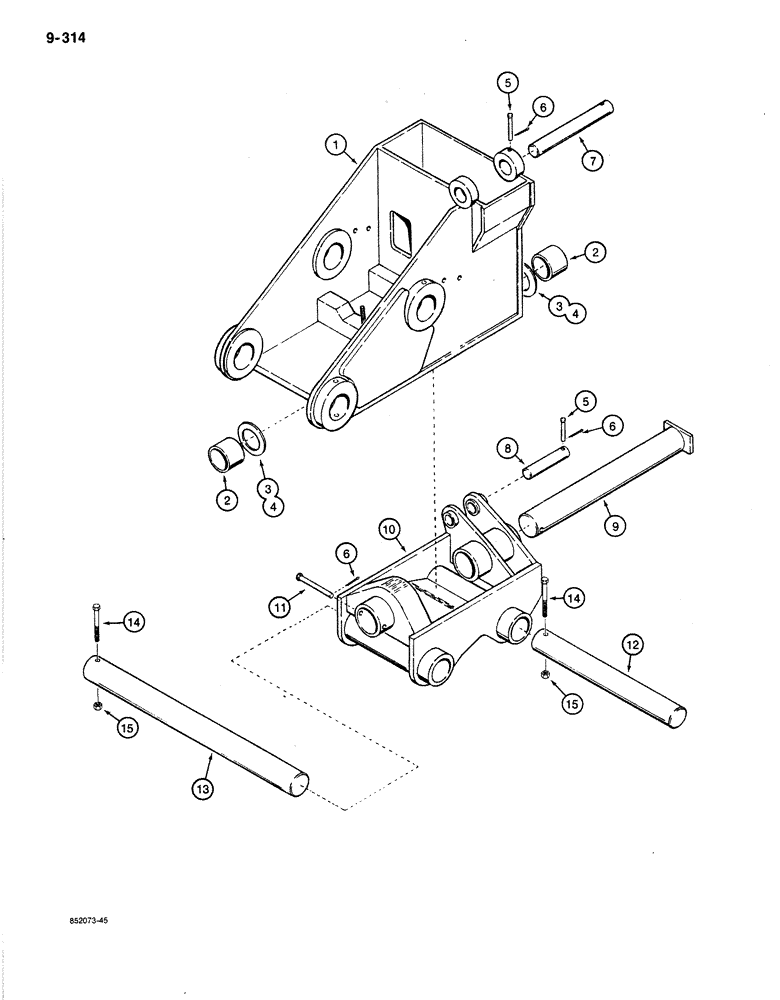

Запчасти Case 1080B (9-314) - WRIST-O-TWIST (09) - CHASSIS

1

S618160

FRAME

- upper, Includes: Ref. 2

1шт.

2

S202163

BUSHING

- frame

2шт.

3

S88993

WASHER

- shim, .09" (2.3 mm) thick

1шт.

4

S88992

WASHER

- shim, .06" (1.5 mm) thick

1шт.

5

S61970

PIN

- clevis, 1/2" x 2-1/2" long

2шт.

6

132-69

COTTER PIN,5/32" x 1"

PIN, Split (Cotter), 5/32" x 1"

3шт.

7

S74766

PIN

- cylinder base, Serial Range: end-frame

1шт.

8

S75299

PIN

- cylinder rod, Serial Range: end-hinge

1шт.

9

S229745

PIN ASSY.

PIN -, Serial Range: frame-hinge

1шт.

10

S618112

HINGE

- lower

1шт.

11

S61976

CLEVIS PIN

PIN - clevis, 5/8" x 4-1/2" long

1шт.

12

S242546

PIN

-, Serial Range: bucket-hinge

1шт.

13

S242543

PIN

-, Serial Range: bucket-hinge

1шт.

14

826-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

BOLT - hex head, 12 mm - 1.75 x 150 mm, class 10.9

2шт.

15

S118774

NUT

- hex, self-locking, 12 mm - 1.75, special

2шт.
