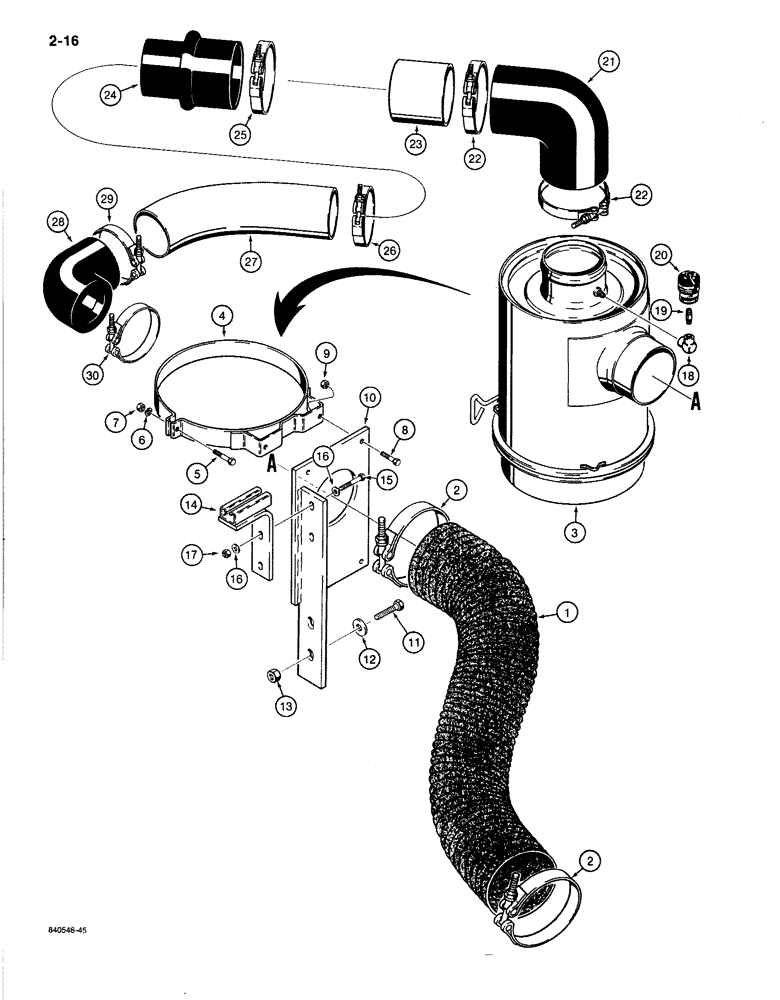

Запчасти Case 1080B (2-16) - AIR CLEANER AND AIR INTAKE MOUNTING, USED ON MODELS WITH CASE ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HOSE - 5" (127 mm) ID x 36" (914 mm) long, air cleaner inlet cut from S118593, see below

1шт.

2

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - inlet hose

2шт.

3

REF

INSTRUCTION

CLEANER ASSEMBLY - air, parts list Figure 2-20

1шт.

4

A56089

SUPPORT

BAND - air cleaner, replaces hardware with Refs. 5 - 7 below

2шт.

5

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

9

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" -16 NC, plated

4шт.

10

S241396

BRACKET

- air cleaner mounting

1шт.

11

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

12

S95569

WASHER

- flat, 1/2", hardened

2шт.

13

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

14

S241397

BRACKET

- 90 degree, upper, tube clamp support

1шт.

15

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

16

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

17

131-52

NUT,3/8"-16, GC

NUT - hex, 3/8" - 16 NC, plated

2шт.

18

217-1050

90 ELBOW,1/8" - 27 NPTF Female

- 90 degree, indicator line

1шт.

19

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE - 1/8" NPT x 1-1/4", restriction indicator line

1шт.

20

A59569

INDICATOR

- restriction, air cleaner

1шт.

21

S115133

ELBOW

- 90 degree, rubber, air cleaner outlet

1шт.

22

214-363

CLAMP,#140, 5.25"-5.56", T-Bolt

- elbow

2шт.

23

S115136

TUBE,5" OD x 3" L

- from air cleaner

1шт.

24

S106022

REDUCER

- rubber

1шт.

25

214-363

CLAMP,#140, 5.25"-5.56", T-Bolt

- reducer, large end

1шт.

26

214-361

CLAMP,#108, 4.25"-4.56", T-Bolt

- reducer, small end

1шт.

27

S119433

TUBE,4" OD x 8" L

- reducer to elbow

1шт.

28

S112515

ELBOW

- 90 degree, rubber, at turbocharger

1шт.

29

214-361

CLAMP,#108, 4.25"-4.56", T-Bolt

- at pipe

1шт.

30

214-379

CLAMP,#84, 3.50"-3.81", T-Bolt

- at turbocharger

1шт.

S118593

HOSE,5.00" ID x 60.00"

Use to make Ref. 1 5.00" ID x 60.00"

1шт.
