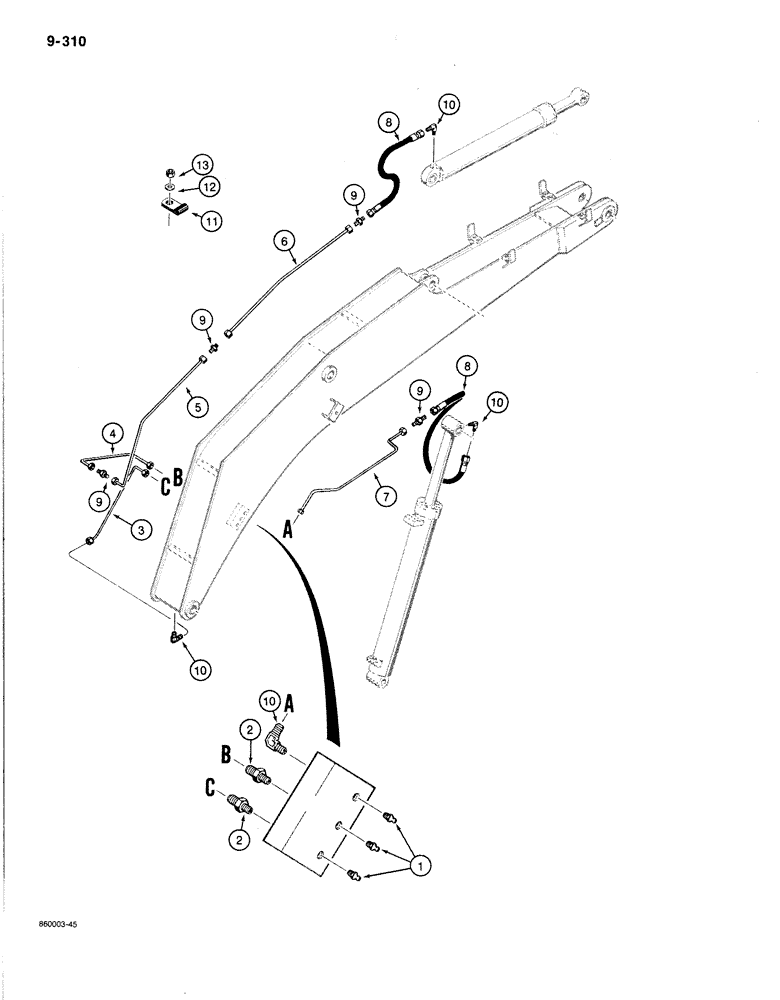

Запчасти Case 1080B (9-310) - BOOM LUBRICATION LINES (09) - CHASSIS

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

3шт.

2

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, male

2шт.

3

S241465

TUBE,0.25" OD

- lubrication, boom at turntable

1шт.

4

S241464

TUBE,0.25" OD x 26.69, 12.60" L

- lubrication, arm cylinder at closed end, rear section

1шт.

5

S241762

TUBE,0.25" OD

- lubrication, arm cylinder at closed end, center section

1шт.

6

S241763

TUBE,0.25" OD x 46.06, 9.45" L

- lubrication, arm cylinder at closed end, front section

1шт.

7

S242292

TUBE,25" OD

- lubrication, boom cylinder at rod end

1шт.

8

S77467

HOSE

- 38" (965 mm) long, lubrication, closed end of arm cylinder and rod end of boom cylinder

2шт.

9

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR - straight, male

4шт.

10

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, male

4шт.

11

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- lubrication tube

7шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

13

S118773

LOCK NUT

NUT - hex, self-locking, 10 mm - 1.5, special

7шт.
