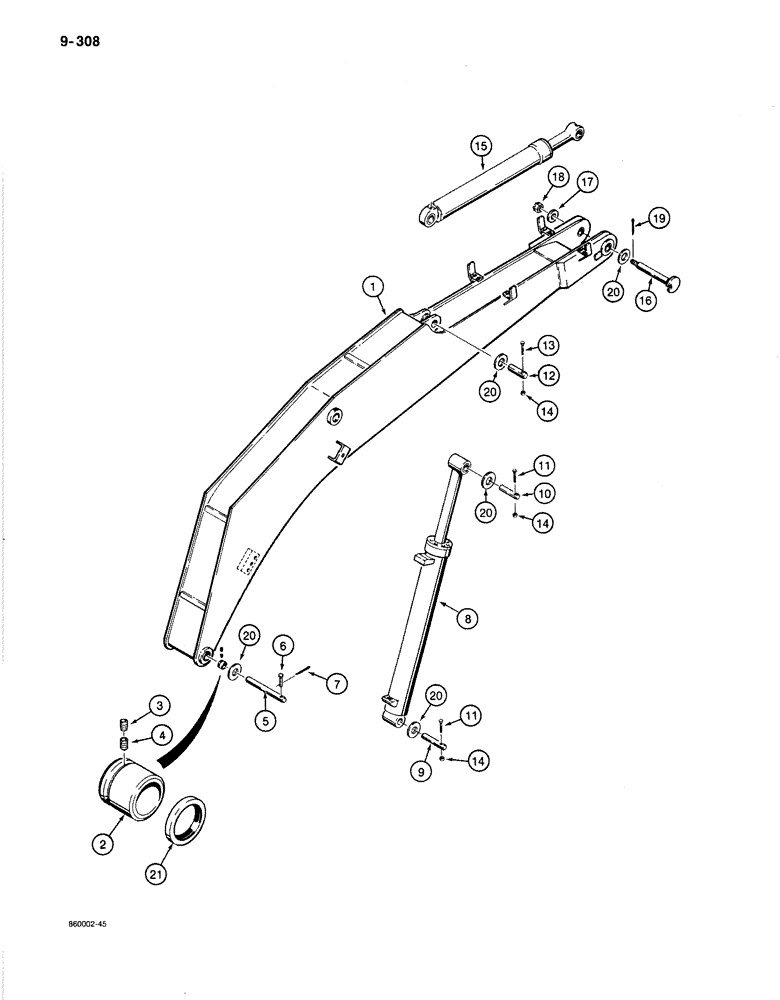

Запчасти Case 1080B (9-308) - BOOM AND PINS (09) - CHASSIS

1

S956719

BOOM

ASSEMBLY - excavator, Includes: Refs. 2-4

1шт.

2

S241666

BUSHING

- boom mounting, at turntable

2шт.

3

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8" - 16 NC x 3/8", cup point, top

2шт.

4

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8" - 16 NC x 3/8", cone point, bottom

2шт.

5

S241744

PIN

-, Serial Range: boom-turntable

1шт.

6

S87319

PIN

- retainer, S241744 pin

1шт.

7

132-73

COTTER PIN,5/32" x 1 1/2"

PIN - cotter, 5/8" x 1-1/2", plated

1шт.

8

S956693

CYLINDER

ASSEMBLY - hydraulic, boom, parts list figure 9-260

1шт.

9

S241748

PIN

- boom, Serial Range: cylinder-turntable

1шт.

10

S241671

PIN

- boom, Serial Range: cylinder-boom

1шт.

11

826-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 10.9

- hex head, 12 mm - 1.75 x 130 mm, plated

2шт.

12

S241745

PIN

- arm, Serial Range: cylinder-boom

1шт.

13

826-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

BOLT - hex head, 12 mm - 1.75 x 150 mm, plated

1шт.

14

S118774

NUT

- hex, self-locking, 12 mm - 1.75

3шт.

15

S956692

CYLINDER

ASSEMBLY - arm, parts list figure 9-262

1шт.

16

S241750

PIN

-, Serial Range: boom-arm

1шт.

17

S110511

WASHER

- flat, special

1шт.

18

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT - hex, slotted, 2" - 4-1/2" NC, plated

1шт.

19

132-208

COTTER PIN,3/8" x 4"

Pin, Split (Cotter), 3/8" x 4"

1шт.

20

S119409

SHIM,3mm Thk

(1/8") 3mm Thk

1шт.

21

S241665

SEAL

- grease

2шт.
