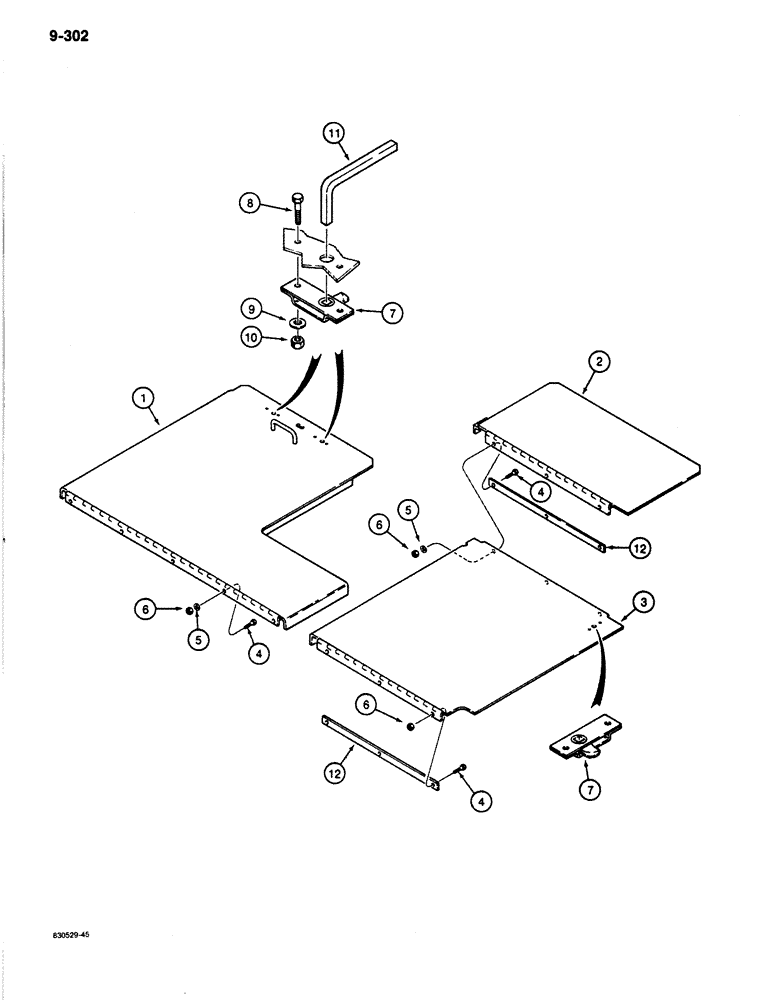

1
S617917
DOOR
- upper left, valve area
1шт.
2
S516114
DOOR
- upper right front, fuel tank area
1шт.
3
S516113
DOOR
- upper right rear, battery area
1шт.
4
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
11шт.
5
195-5
WASHER
- flat, 3/8", hardened, plated
8шт.
6
131-52
NUT,3/8"-16, GC
NUT - hex, self-locking, 3/8" - 16 NC, plated
11шт.
7
S110414
LOCK
- door, security
3шт.
8
113-4
BOLT,Hex, 1/4" - 20 x 1", Gr 5
6шт.
9
195-103
WASHER,5/16"
- flat, , plated 5/16"
6шт.
10
131-461
LOCK NUT,1/4"-20
NUT - hex, self-locking, 1/4" - 20 NC, plated
6шт.
11
S115083
KEY
- lock, security
1шт.
12
S238704
STRIP
- reinforcement, used with S516113 and S516113 doors, Refs. 2 and 3
2шт.
