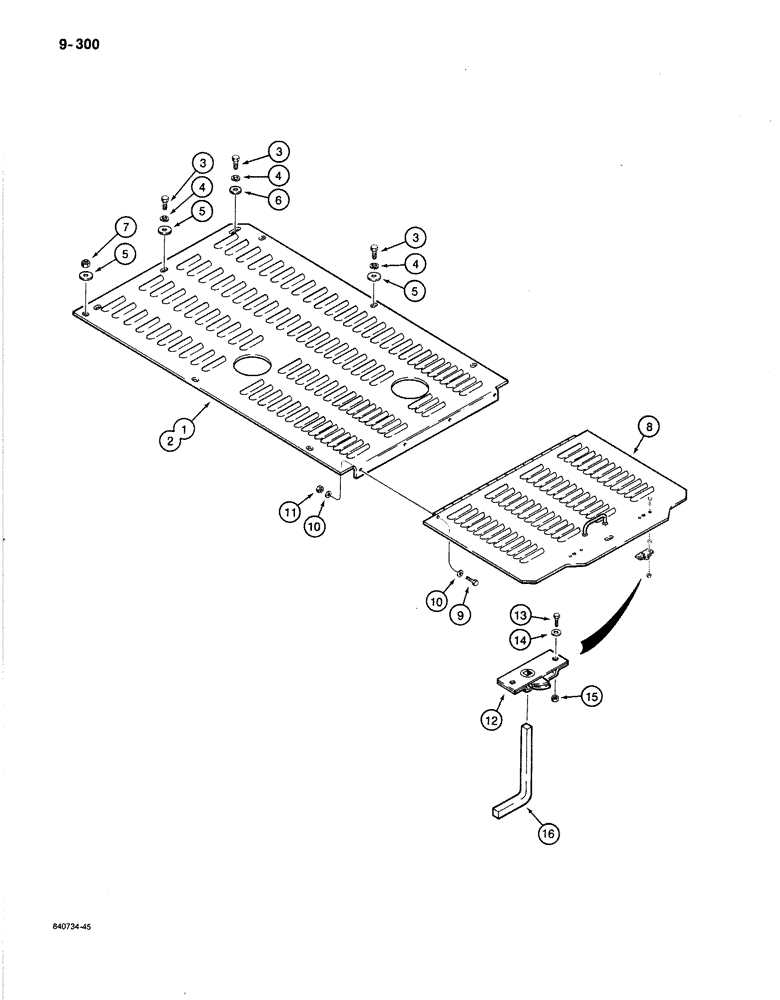

Запчасти Case 1080B (9-300) - ENGINE TOP COVERS (09) - CHASSIS

1

S617901

SHROUD

COVER - engine, top, used with Case engine

1шт.

2

S617905

SHROUD

COVER - engine, top, used with Detroit Diesel engine, not shown

1шт.

3

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

7шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

7шт.

5

S95569

WASHER

- flat, 1/2", hardened, plated, special

8шт.

6

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened, plated

2шт.

7

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

3шт.

8

S516099

DOOR ASSY.

DOOR - engine access, top 1

1шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

10

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened, plated

8шт.

11

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" -16 NC, plated

4шт.

12

S110414

LOCK

- engine access door

2шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

14

195-103

WASHER,5/16"

- flat, , plated 5/16"

4шт.

15

131-461

LOCK NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC, plated

4шт.

16

S115083

KEY

- lock, engine access door

1шт.
