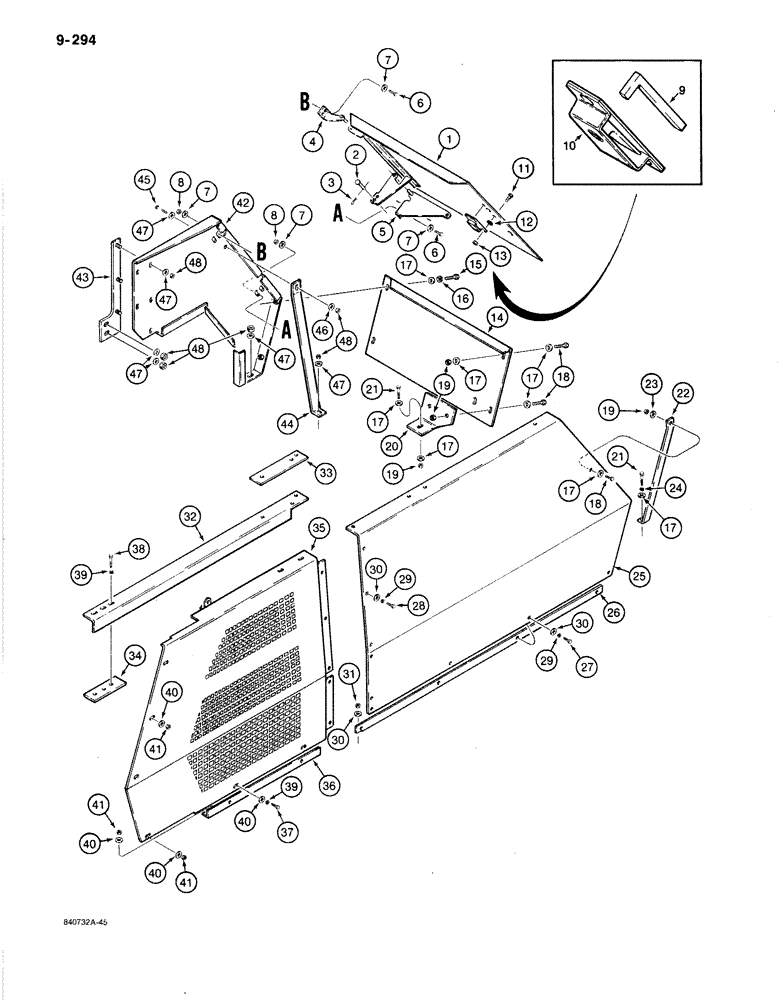

Запчасти Case 1080B (9-294) - RIGHT-HAND SIDE PANELS (09) - CHASSIS

1

S617752

DOOR ASSY.

DOOR - access, front

1шт.

2

S10810

CLEVIS PIN

PIN - clevis, door holder

1шт.

3

S120261

PIN

- cotter, retainer, clevis pin

1шт.

4

S221455

BRACKET

HINGE - access door, top

1шт.

5

S221453

BRACKET

HINGE - access door, bottom

1шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

7

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened, plated

8шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" -16 NC, plated

4шт.

9

S115083

KEY

- lock, access door

1шт.

10

S110414

LOCK

- access door

1шт.

11

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

12

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

13

131-461

LOCK NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC, plated

2шт.

14

S219991

SHEET

COVER - front, lower

1шт.

15

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

S95569

WASHER

- flat, 1/2", hardened

10шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

19

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" -13 NC, plated

5шт.

20

S241983

BRACE

- front lower cover

1шт.

21

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

22

S240494

BAR

BRACE - right-hand side panel, front

1шт.

23

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", plated

1шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

25

S618087

SHROUD ASSY.

PANEL - side, right-hand, front

1шт.

26

S516734

ANGLE

- lower, front, side panel support

1шт.

27

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

28

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

5шт.

29

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

9шт.

30

S95569

WASHER

- flat, hardened, 1/2", plated

14шт.

31

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

5шт.

32

S516468

BRACE

BRACKET - upper, rear, side panel support

1шт.

33

S119625

BAR

PLATE - bracket support, front, for mounting hardware see Figure 9-299

1шт.

34

S241981

BRACKET

PLATE - bracket support, rear

1шт.

35

S618136

SHROUD

PANEL - side, right-hand, rear

1шт.

36

S241845

ANGLE

BRACKET - lower, rear, side panel support

1шт.

37

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

38

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex head, 1/2" -13 NC x 1-3/4", grade 8

3шт.

39

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

40

S95569

WASHER

- flat, hardened, 1/2", plated

8шт.

41

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" -13 NC, plated

6шт.

42

S617759

SHROUD

PANEL - side, front, left-hand

1шт.

43

S242607

BRACKET

- panel support, rear

1шт.

44

S241486

BRACE

- panel support, front

1шт.

45

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

46

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", plated

1шт.

47

S95569

WASHER

- flat, 1/2", hardened, plated

8шт.

48

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" -13 NC, plated

8шт.
