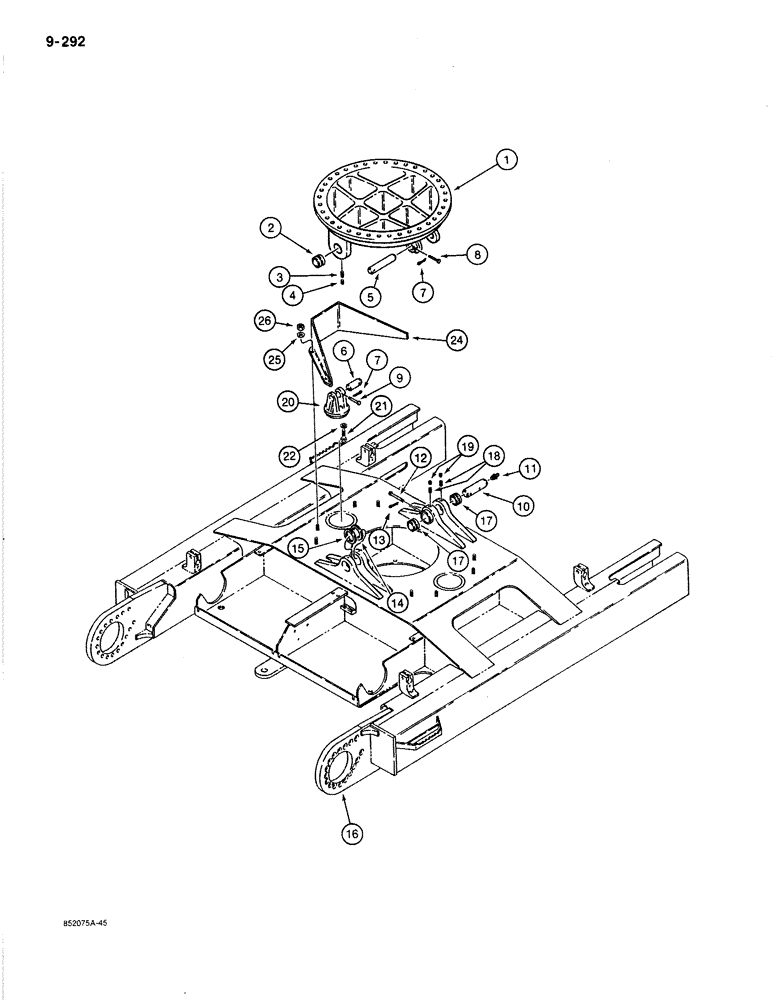

Запчасти Case 1080B (9-292) - TURNTABLE LEVELER (09) - CHASSIS

1

S956818

FRAME

LEVELER - turntable, Includes: Refs. 2-4

1шт.

2

S242358

BUSHING

- leveler

2шт.

3

178-57

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW - set, hex socket head, 3/8" -16 NC x 3/4", cone point

2шт.

4

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket head, 3/8" -16 NC x 3/8", cup point

2шт.

5

S242532

PIN

- leveler cylinder to turntable leveler

2шт.

6

S112635

PIN

- leveler cylinder to cylinder bracket

2шт.

7

132-69

COTTER PIN,5/32" x 1"

PIN, Split (Cotter), 5/32" x 1"

4шт.

8

S61975

PIN,20.62mm OD x 106.76mm L

- clevis, 5/8" x 3-3/4", upper cylinder pins

2шт.

9

S61973

AXLE PIN

PIN - clevis, 1/2" x 3-3/4", lower cylinder pins

2шт.

10

S241595

PIN ASSY.

PIN ASSEMBLY - turntable leveler to undercarriage, Includes: Ref. 11

2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

12

S87319

PIN

- clevis, used with S241595 pin

2шт.

13

132-71

COTTER PIN,5/32" x 1 1/4"

PIN, Split (Cotter), 5/32" x 1 1/4"

2шт.

14

S111775

WASHER

- spacer, 1/8" (3 mm) thick

1шт.

15

S111777

WASHER

- spacer, 1/16" (2 mm) thick

1шт.

16

S956786

FRAME

AND UNDERCARRIAGE ASSEMBLY - track, models with leveler, Includes: Refs. 17-19

1шт.

17

S202162

BUSHING

- leveler at undercarriage

4шт.

18

178-57

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW - set, hex socket head, 3/8" -16 NC x 3/4", cone point

4шт.

19

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket head, 3/8" -16 NC x 3/8", cup point

4шт.

20

S619251

BRACKET

- leveler, Serial Range: cylinder-undercarriage

2шт.

21

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

22

S95569

WASHER

- flat, 1/2", hardened

2шт.

24

S517061

GUARD

- dirt, leveler cylinder

2шт.

25

S95569

WASHER

- flat, 1/2", hardened

8шт.

26

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" -13 NC, plated

8шт.
