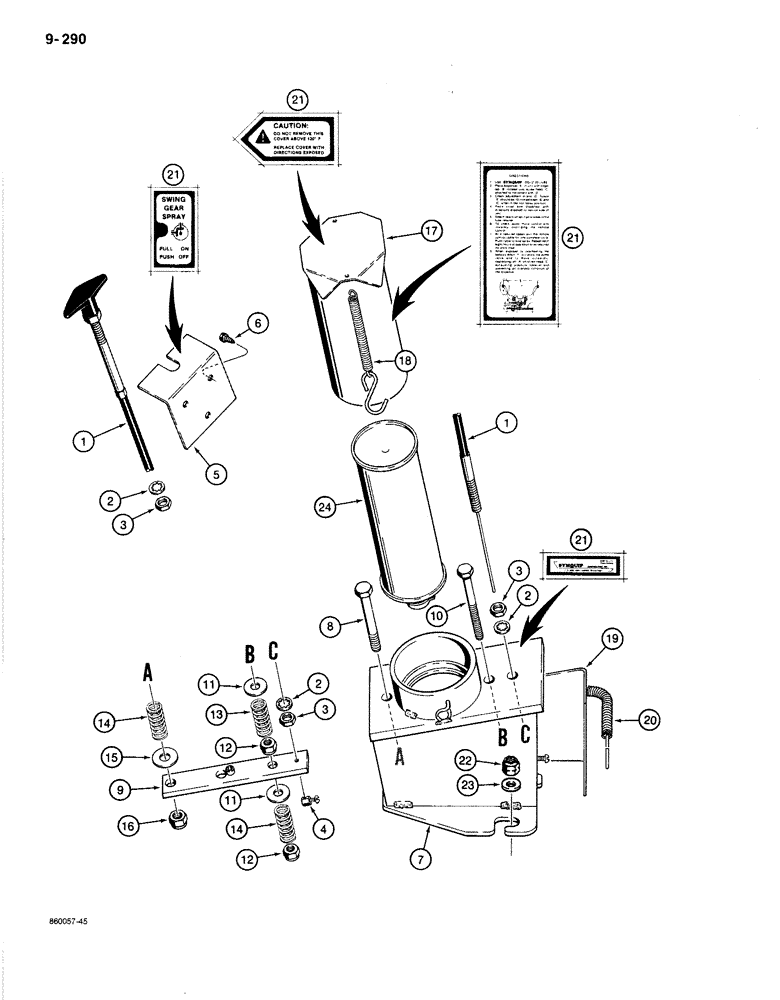

Запчасти Case 1080B (9-290) - SWING GEAR SPRAY LUBRICATOR (09) - CHASSIS

1

N9488

CABLE ASSY.

CABLE ASSEMBLY - remote control, Includes: Refs. 2-4

1шт.

2

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

3

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex jam, 3/8" -24 NF, plated

3шт.

4

N9489

STOP

COLLAR - cable stop

1шт.

5

N9490

BRACKET

- cable mounting

1шт.

6

187-1513

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex head, self-tapping, 1/4" -20 NC x 1/2", plated

3шт.

7

NSS

NOT SOLD SEPARAT

FRAME - lubricator

1шт.

8

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Welds to frame Hex, 3/8"-16 x 3", G5

1шт.

9

N9491

ARM

- spray control

1шт.

10

113-116

BOLT,Hex, 5/16" - 18 x 3-1/2", SST

- hex head, 5/16" -18 NC x 3-1/2", plated

1шт.

11

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

12

131-462

NUT,5/16"-18

NUT - hex, self-locking, 5/16" -18 NC, plated

2шт.

13

N9492

SPRING

- heavy

1шт.

14

N9493

SPRING

- light

2шт.

15

195-104

WASHER,3/8"

- flat, , plated 3/8"

1шт.

16

131-463

NUT,3/8"-16

NUT - hex, self-locking, NC, plated 3/8"-16

1шт.

17

N9494

HOUSING

TUBE - spray can container

1шт.

18

N9495

SPRING

AND HOOK - tube lid

2шт.

19

N9496

DOOR

- lower frame

1шт.

20

N9497

SPRING

AND HOOK - door

1шт.

21

N9498

KIT

- decal, swing gear spray lubricator, includes four decals

1шт.

22

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" -16 NC, plated

2шт.

23

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened

2шт.

24

331-437

LUBRICANT

- swing gear, 20 oz. (291 ml) spray can

1шт.
