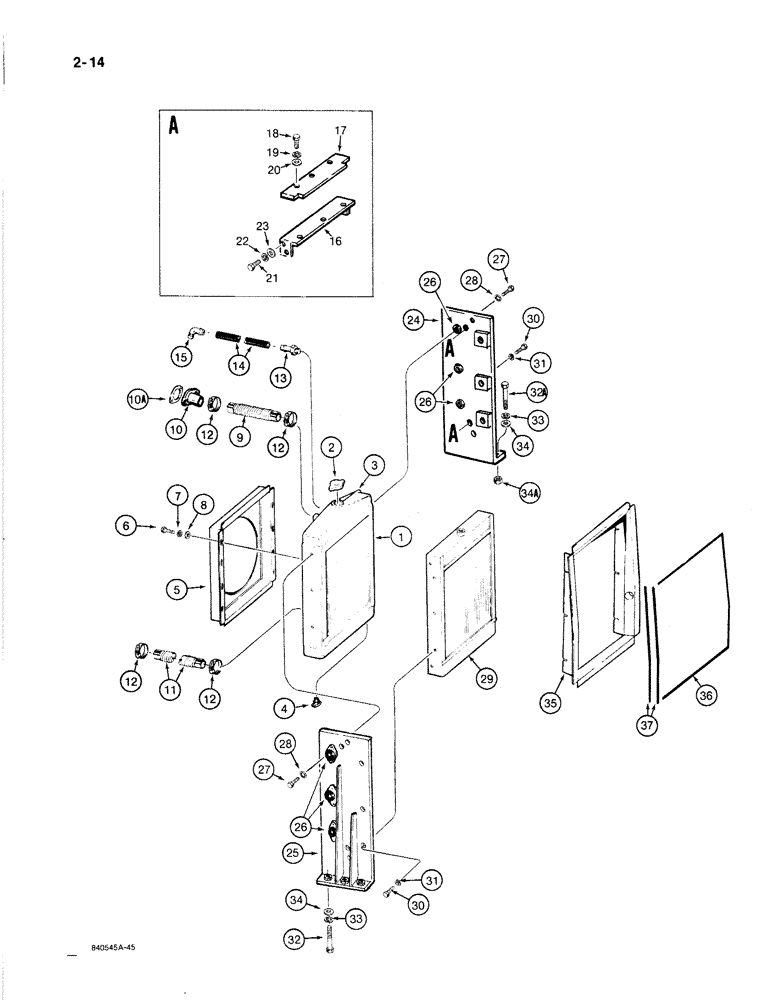

Запчасти Case 1080B (2-14) - RADIATOR, OIL COOLER, AND HOSES, USED ON MODELS WITH DETROIT ENGINE (02) - ENGINE

1

S612782

RADIATOR

ASSEMBLY - engine cooling, Includes: Refs. 2 and 3

1шт.

2

D25826

CAP

- radiator

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - overflow, purchase locally

1шт.

4

A23656

COCK, DRAIN

VALVE - radiator drain

1шт.

5

S602534

SHROUD

- fan

1шт.

6

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex head, 1/4" - 20 NC x 1/2", plated

8шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

8

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

8шт.

9

S81005

HOSE

Radiator, Upper

1шт.

10

S235727

TUBE

FLANGE - upper radiator hose

1шт.

10a

S119630

GASKET

- flange

1шт.

11

S64061

HOSE,120.00 mm

RADIATOR HOSE, , Lower 120.00 mm

1шт.

12

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

13

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

- barb, straight

1шт.

14

REF

INSTRUCTION

HOSE - 3/8" (10 mm) ID x 12" (305 mm) long, low pressure, cut from S118400, see below

1шт.

15

220-520

ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed

FITTING - barb, 90 degree

1шт.

16

S237246

BRACKET

- mounting, radiator, upper and lower

2шт.

17

S237248

STRIP

- mounting bracket

2шт.

18

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

6шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

20

195-101

WASHER,3/16"

- flat, 1/4", plated

6шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

23

195-102

WASHER,1/4"

- flat, 5/16", plated

8шт.

24

S516108

BRACKET

- front, includes Ref. 26

1шт.

25

S516109

BRACKET

- rear, includes Ref. 26

1шт.

26

S222918

SHOCK ABSORBER

MOUNT - insulating

3шт.

27

S76819

STEP BOLT

BOLT - shoulder, 5/16" - 18 NC x 1", plated

6шт.

28

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 5/16", plated

6шт.

29

S613672

COOLER, OIL

COOLER - hydraulic oil

1шт.

30

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

32

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

32a

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

33

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

34

S95569

WASHER

- flat, 1/2", plated

6шт.

34a

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

3шт.

35

S617916

TUBE,1.5" OD

SHROUD - air intake

1шт.

36

REF

INSTRUCTION

MOULDING - 112" (2845 mm) long, shroud, cut from S118475, see below

1шт.

37

REF

INSTRUCTION

MOULDING - 46" (1168 mm) long, shroud, cut from S118475, see below

2шт.

S118400

HOSE,0.38" ID x 300.00"

- Bulk length, Use to make Ref. 14 0.38" ID x 300.00"

1шт.

S118475

SEAL

MOULDING - 120" (3048 mm) long, shroud, bulk length, use to make Refs. 36 and 37

1шт.
