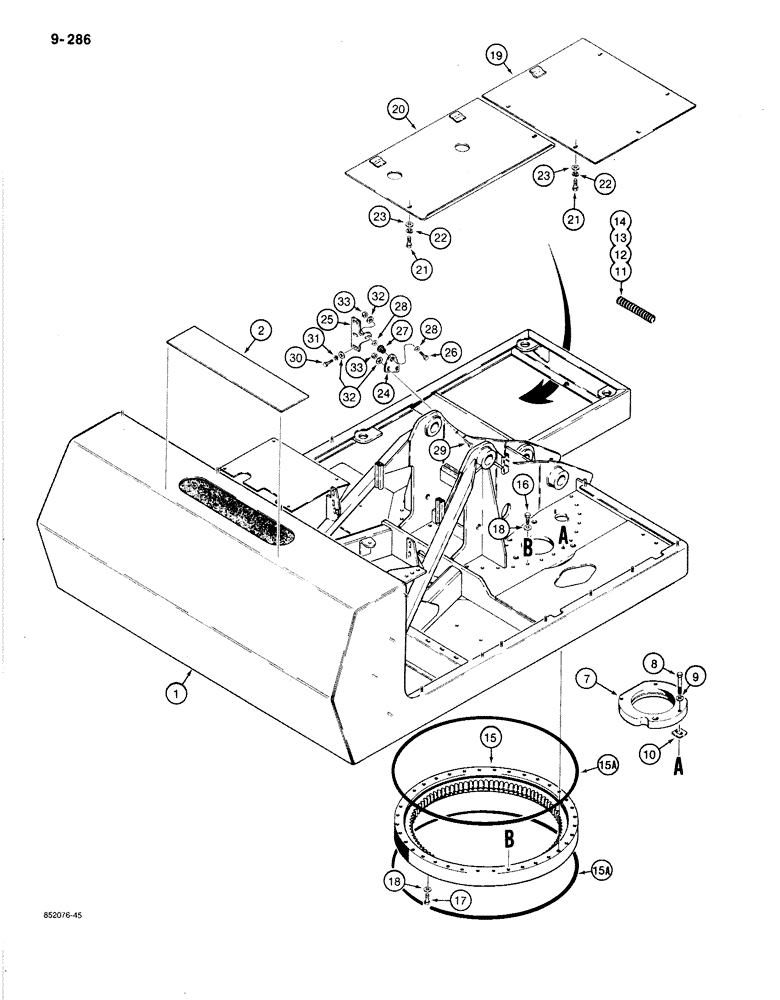

Запчасти Case 1080B (9-286) - TURNTABLE AND BEARING (09) - CHASSIS

1

S956939

BASE

TURNTABLE - must have counterweight material of 7500 lb. (3402 kg) or 9500 lb. (4310 kg) added at the time of insullation, contact representatives of the J.I.Case Company for details

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - cover, Serial Range: welds-turntable

1шт.

7

S516544

SUPPORT

PLATE - swing gearbox mounting, welds to turntable, prior to P.I.N., Serial Range: -JAK0031501

1шт.

7

S517317

PLATE

- swing gearbox mounting, welds to turntable, P.I.N. and after, Start Serial: JAK0031501

1шт.

FIGURE 7 ...AND AFTER SERIAL NUMBER JAK0031501 USE 26-1648 (MOUNTING BOLT) & S120727 (WASHER) 3 EACH. BOLT MAY ALSO BE 828-20070 (20X 70mm 10.8) FOR THE METRIC VERSION (WITH THE THICKER MTG. FLANGE.)

1шт.

8

826-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

- hex head, 20 mm - 2.5 x 55 mm, class 10.9 mm, swing gearbox to mounting plate, prior to P.I.N., Serial Range: -JAK0031501

3шт.

FIGURE 8 ...THE 826-20055 BOLT IS FOR THE NOTED SERIAL NUMBER RANGE. THE BOLT USED AT AND AFTER P.I.N. JAK0031501 IS PART NUMBER 26-1648 (1.0 X 8 UNC X 3.0" GRADE 8)....3 USED.

1шт.

9

S118818

WASHER

- flat, hardened, special

3шт.

FIGURE 9 ...S118818 FLAT WASHER IS ONLY USED PRIOR TO P.I.N. JAK0031501. THE WASHER USED AT AND AFTER THAT SERIAL NUMBER IS S120727 WASHER...3 USED.

1шт.

10

S84889

SHIM,.003" Thk

(.0762 mm), Swing gearbox mounting to turntable .003" Thk

1шт.

10

S77916

SHIM,.005" Thk

(.1270 mm), Swing gearbox mounting to turntable .005" Thk

1шт.

10

S84890

SHIM,.007" Thk

(.1778 mm), Swing gearbox mounting to turntable .007" Thk

1шт.

10

S77917

SHIM,.010" Thk

(.2540 mm), Swing gearbox mounting to turntable .010" Thk

1шт.

10

S77918

SHIM,.015" Thk

(.3810 mm), Swing gearbox mounting to turntable .015" Thk

1шт.

10

S77919

SHIM,.030" Thk

(.7620 mm), Swing gearbox mounting to turntable .030" Thk

1шт.

10

S77920

SHIM,.060" Thk

(1.524 mm), Swing gearbox mounting to turntable .060" Thk

1шт.

11

REF

INSTRUCTION

CONDUIT - 9" (229 mm) thick, edge guard, cut from S118481 bulk, see below

1шт.

12

REF

INSTRUCTION

CONDUIT - 11" (279 mm) thick, long, edge guard, cut from S118481 bulk, see below

1шт.

13

REF

INSTRUCTION

CONDUIT - 17" (432 mm) thick, long, edge guard, cut from S118481 bulk, see below

1шт.

14

REF

INSTRUCTION

CONDUIT - 8" (203 mm) thick, long, edge guard, cut from S118481 bulk, see below

1шт.

15

S508669

BEARING ASSY

BEARING - turntable, Includes: Ref.15A

1шт.

15a

S105067

SEAL

- bearing, 156" (3962 mm) thick, long, cut to correct length when installing

2шт.

GLUE FOR REF. 15A IS 3M-EC1300 OR ECCO BOND 45LU 15LU. PURCHASE LOCALLY.

1шт.

16

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

- hex, 3/4" - 11 NC x 2-1/4", G8, upper

33шт.

17

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

lower Hex, 3/4"-10 x 2", G8

36шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, hardened, special

69шт.

19

S517067

GUARD

- under turntable, front

1шт.

20

S517066

GUARD

- under turntable, rear

1шт.

21

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

7шт.

22

192-165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

23

195-41

WASHER,5/8"

- flat, , plated 5/8"

7шт.

24

S241979

BRACKET

- cab mounting, at turntable frame

1шт.

25

S514820

BRACKET

- cab mounting, at cab

1шт.

26

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

1шт.

27

S110886

MOUNTING PARTS

MOUNT - rubber, cab bracket

1шт.

28

196-10

WASHER,.521" x 2" x .134", HDN

- flat, 1/2", hardened

2шт.

29

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

30

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

31

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

32

S95569

WASHER

- flat, 1/2", plated

6шт.

33

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" -13 NC, plated

3шт.

S118481

PACKAGE

CONDUIT - 60" (1524 mm) thick, long, bulk length use to make Refs. 11 - 14

1шт.

REFER TO INSTALLATION DRAWING S619010 TO VIEW BOLT AND WASHER INSTALLATION FOR P.I.N. JAK0031501 AND AFTER.

1шт.
