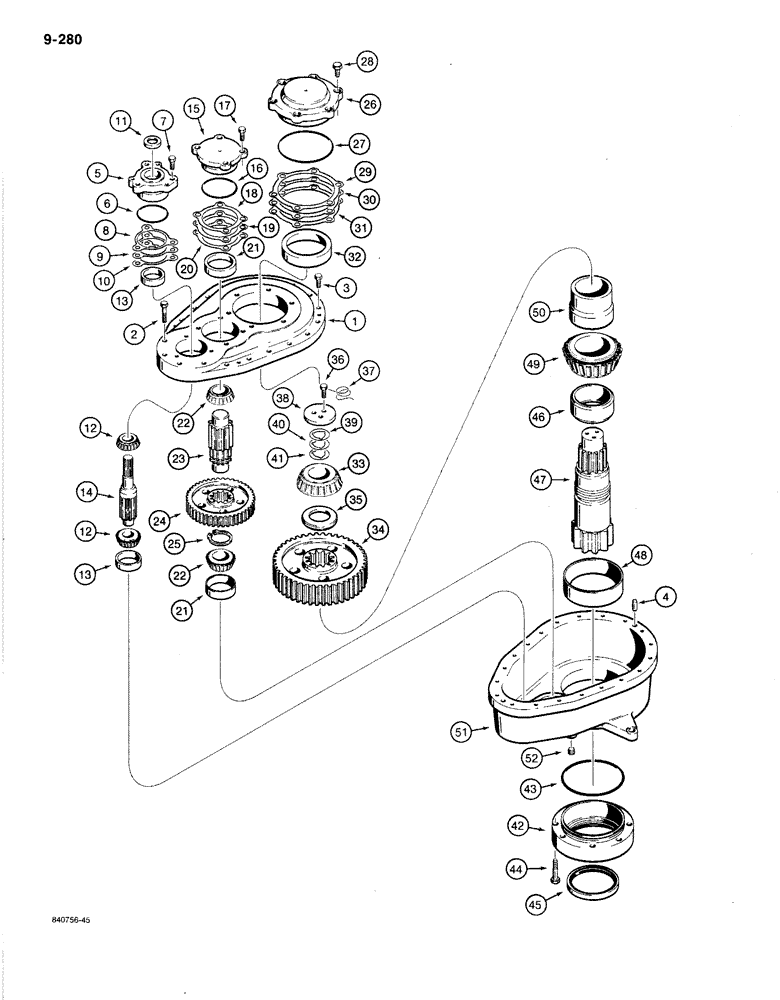

Запчасти Case 1080B (9-280) - SWING GEARBOX (09) - CHASSIS

S618296

REDUCER

GEARBOX ASSEMBLY - swing, prior to P.I.N. to JAK0031501

1шт.

S619235

GEARBOX ASSY

GEARBOX ASSEMBLY - swing, P.I.N. and after, Includes: Refs. 1-53, Start Serial: JAK0031501

1шт.

1

S-956557

COVER - gearbox housing

1шт.

Must use B17423 LOCTITE

1шт.

2

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

- hex head, 12 mm - 1.75 x 60 mm (8.8), plated

4шт.

3

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 40 mm, plated

16шт.

4

S65037

DOWEL

PIN - dowel, cover to housing, Includes: Refs. 5-34

2шт.

5

S515593

COVER

- bearing, input shaft

1шт.

6

A30389

O-RING,3.359" ID x 3.637" OD x 0.139"

- bearing cover

1шт.

7

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 40 mm, plated

3шт.

8

S240687

SHIM,.127mm Thk

Input shaft bearing cover (.005") .127mm Thk

1шт.

8

S240688

SHIM,.177mm Thk

Input shaft bearing cover (.007") .177mm Thk

1шт.

10

S240689

SHIM,.508mm Thk

Input shaft bearing cover (.020") .508mm Thk

1шт.

11

F53634

SEAL

- oil, imput shaft

1шт.

12

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

BEARING - tapped roller, input shaft

2шт.

13

A30580

BEARING CUP

CUP - bearing, input shaft

2шт.

14

S616978

SHAFT

- input

1шт.

15

S242044

COVER

- bearing, intermediate shaft

1шт.

16

S6108

O-RING,4.359" ID x 4.637" OD x 0.139"

- bearing cover

1шт.

17

813-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

4шт.

18

S240546

SHIM,.127mm Thk

Intermediate shaft bearing cover (.005") .127mm Thk

1шт.

19

S240547

SHIM,.177mm Thk

Intermediate shaft bearing cover (.007") .177mm Thk

1шт.

20

S240548

SHIM,.508mm Thk

Intermediate shaft bearing cover (.020") .508mm Thk

1шт.

21

A26678

BEARING CUP,3.6718" OD x 0.9375"

CUP - bearing, intermediate shaft

2шт.

22

A27301

ROLLER BEARING,2" ID x 1.193"

BEARING - tapered roller, intermediate shaft

2шт.

23

S617089

SHAFT

- intermediate gear

1шт.

24

S616857

GEAR

- drive, intermediate

1шт.

25

A31227

SNAP RING,#275, Ext

RING, Snap, , drive gear #275, Ext

1шт.

26

S516758

COVER

- bearing, output shaft, drive end

1шт.

27

A40052

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

- bearing cover

1шт.

28

813-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

6шт.

29

S240540

SHIM,.127mm Thk

Output shaft bearing cover (.005") .127mm Thk

1шт.

30

S240541

SHIM,.177mm Thk

Output shaft bearing cover (.007") .177mm Thk

1шт.

31

S240542

SHIM,.508mm Thk

Output shaft bearing cover (.020"), UAR .508mm Thk

32шт.

32

S118456

BEARING CUP,146.05 mm OD x 31.75 mm

CUP - bearing, output shaft, drive end

1шт.

33

S118455

ROLLER BEARING,69.85 mm ID x 41.275 mm

BEARING - tapered roller, output shaft, drive end

1шт.

34

S618295

GEAR

- drive, output shaft

1шт.

B17423

LOCTITE

- red, 10 cc bottle, used on Refs. 1, 45, 46, and both 51s

1шт.

35

S120017

SPACER

- drive gear, upper, Includes: Refs. 36-53

1шт.

36

S120018

BOLT

GEAR - hex head, 12 mm - 1.75 x 25 mm, class 10.9, special

3шт.

37

391-629

ELECTRICAL WIRE

WIRE - locking, retainer plate bolt, No. 16 x 24" long, replaces a No. 13 (gauge) x 24" long wire used on some models in production

1шт.

38

S242427

PLATE

- retainer

1шт.

39

S120020

SHIM,.127mm Thk

Retainer to bearing (.005") .127mm Thk

1шт.

40

S120021

SHIM,.177mm Thk

Retainer to bearing (.007") .177mm Thk

1шт.

41

S120022

SHIM,.508mm Thk

Retainer to bearing (.020") .508mm Thk

1шт.

42

S618290

COVER

- bearing, output shaft, driven end

1шт.

43

S6355

O-RING,7.734" ID x 8.012" OD x 0.139"

- bearing cover

1шт.

44

826-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

8шт.

45

S242103

OIL SEAL

- oil, shaft collar

1шт.

Must use B17423 LOCTITE

1шт.

46

S242014

COLLAR

- output shaft

1шт.

Must use B17423 LOCTITE

1шт.

47

S618289

SHAFT

- pinion, output

1шт.

48

S403146

BEARING, CUP

CUP - bearing, output shaft, driven end

1шт.

49

S403192

ROLLER BEARING

BEARING - tapered roller, output shaft, driven end

1шт.

50

S242425

SPACER

SHAFT - drive gear, lower

1шт.

51

S956556

HOUSING

- swing gearbox, prior to P.I.N., Serial Range: -JAK0031501

1шт.

Must use B17423 LOCTITE

1шт.

51

S957007

HOUSING

- swing gearbox, P.I.N. and after, Start Serial: JAK0031501

1шт.

BOLT TO MOUNT NO. 51 TO THE SWING GEAR BOX IS 826-20055 ON FIGURE 9-286.

1шт.

Must use B17423 LOCTITE

1шт.

52

221-659

DRAIN PLUG,Hex Soc, 3/4" NPT

PLUG - pipe, magnetic, hex socket head, 3/4" NPT

1шт.

53

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, hex socket head, 3/4" NPT, not shown

1шт.

B17423

LOCTITE

- red, 10 cc bottle, Includes: Ref. 1, 45, 46, and both 51s

1шт.
