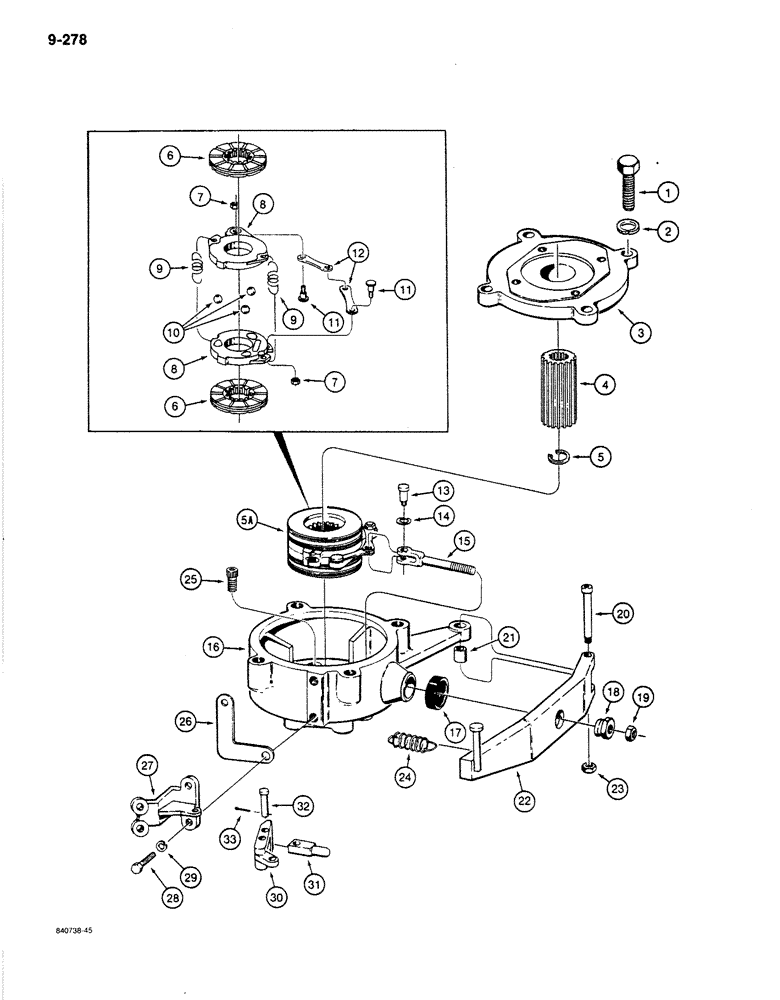

Запчасти Case 1080B (9-278) - SWING BRAKE (09) - CHASSIS

1

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

2

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

3

S507605

COVER

- brake housing

1шт.

4

S510271

SHAFT

COUPLING - splined, drive, Serial Range: motor-gearbox

1шт.

5

R16289

SNAP RING,1.06", Int, #106

Ring, Snap, , coupling 1.06", Int, #106

1шт.

S517185

BRAKE

ASSEMBLY - disc, Includes: Refs. 6-12

1шт.

6

S300368

DISC

- brake

2шт.

S216242

CLUTCH DISC

ACTUATOR ASSEMBLY - brake, Includes: Refs. 7-12

1шт.

7

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

8

S68704

DISC

ACTUATOR - brake

2шт.

9

S68705

SPRING

- actuator

2шт.

10

S68703

BALL

- actuator, 3/4" diameter

3шт.

11

S105785

STUD

-, Serial Range: link-actuator

2шт.

12

S68707

LINK

- brake actuator

2шт.

13

S66646

BOLT,5/16" x 3/4"

- brake, Serial Range: rod-link

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

S64912

YOKE

CLEVIS AND ROD - brake actuator

1шт.

16

S609335

HOUSING

- brake

1шт.

17

S64913

BOOT

- dust, housing

1шт.

18

S64911

NUT

- special, ball seat

1шт.

19

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8" - 24 NF, plated

1шт.

20

S64920

BOLT,5/16" x 2"

- brake, Serial Range: housing-lever

1шт.

21

S64921

BUSHING

- brake, Serial Range: housing-lever

1шт.

22

S203304

LEVER

- brake actuator

1шт.

23

131-205

LOCK NUT,5/16"-18

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

24

S202938

SPRING

- lever return

1шт.

25

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - hex socket head, 3/8" - 16 NC x 1-1/4", grade 8

3шт.

Used with B17422 LOCTITE, see below

1шт.

26

S230205

BRACKET

- lever return spring

1шт.

27

S510472

BRACKET

- mounting, cable

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

S230202

LEVER

-, Serial Range: cable-plunger

1шт.

31

S64910

PLUNGER

- brake actuator lever

1шт.

32

S10717

PIN

- clevis, 1/4" x 1", plated

2шт.

33

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

B17422

LOCTITE

- 242 Blue, 50 cc bottle, use with Ref. 25 bolt

1шт.
