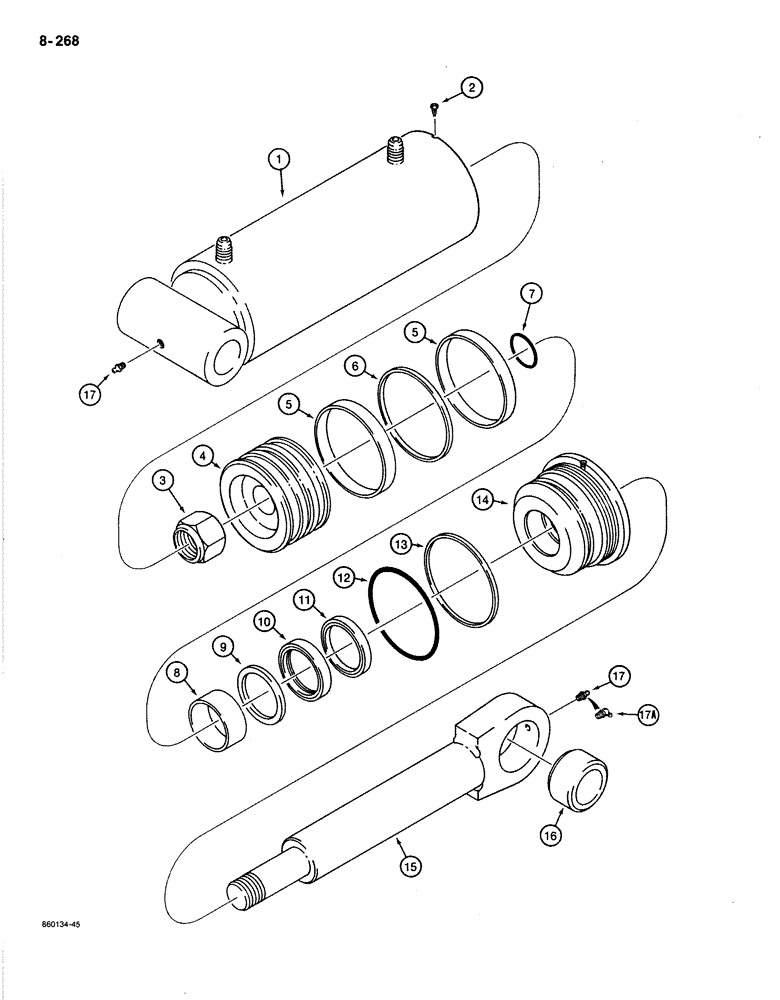

Запчасти Case 1080B (8-268) - WRIST-O-TWIST CYLINDER - S618639 (08) - HYDRAULICS

S618639

CYLINDER

ASSEMBLY - 4" (102 mm) ID x 6-1/2" (164 mm) stroke, wrist-o-twist, Includes: Refs. 1-17

1шт.

1

S516775

CYLINDER,14.22, 2.465" L

TUBE - cylinder

1шт.

2

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No.8 - 32 NC x 3/8", plated

1шт.

3

131-490

LOCK NUT,1 1/4"-12

NUT - hex, self-tapping, 1-1/4" -12 NF, special height

1шт.

4

S516773

PISTON

- cylinder

1шт.

5

S120057

RING

- wear, piston

2шт.

6

S120045

SEAL

- piston

1шт.

7

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- piston to rod seat

1шт.

8

S120058

BEARING LINER

BUSHING - gland (replaces G120058)

1шт.

9

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

10

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- piston rod, wide

1шт.

11

S40025

WIPER SEAL

WIPER - piston rod, outer

1шт.

12

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

- gland

1шт.

13

A41165

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

- backup, gland o-ring

1шт.

14

S516774

GLAND

- cylinder

1шт.

15

S206996

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref. 16

1шт.

16

S202071

BUSHING

- piston rod

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT, see Ref. 17A

1-2шт.

17a

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, special short, 1/8" NPT, use in place of Ref. 17 in rod eye only

1шт.
