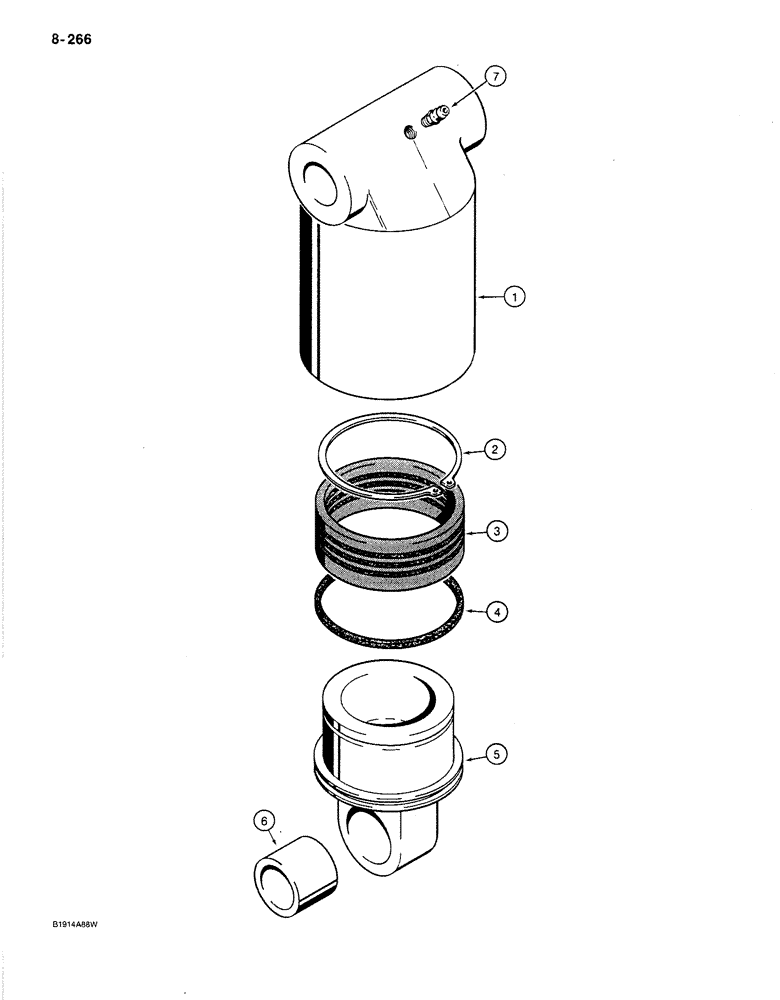

Запчасти Case 1080B (8-266) - LEVELER CYLINDER (08) - HYDRAULICS

S56810

CYLINDER

ASSEMBLY - leveler, Includes: Refs. 1-6

2шт.

1

S211166

TUBE,9.75" L

- cylinder

1шт.

2

H756064

SNAP RING,#500, 4.692", Ext

RING - retaining, piston packing

1шт.

3

S209061

SEAL ASSY.

PACKING ASSEMBLY - piston

1шт.

4

S118540

SEAL

WIPER - piston

1шт.

5

S211136

PISTON ASSY.

PISTON AND ROD ASSEMBLY - cylinder, Includes: Ref. 6

1шт.

6

S202130

THREADED BUSHING

BUSHING - piston rod

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.
