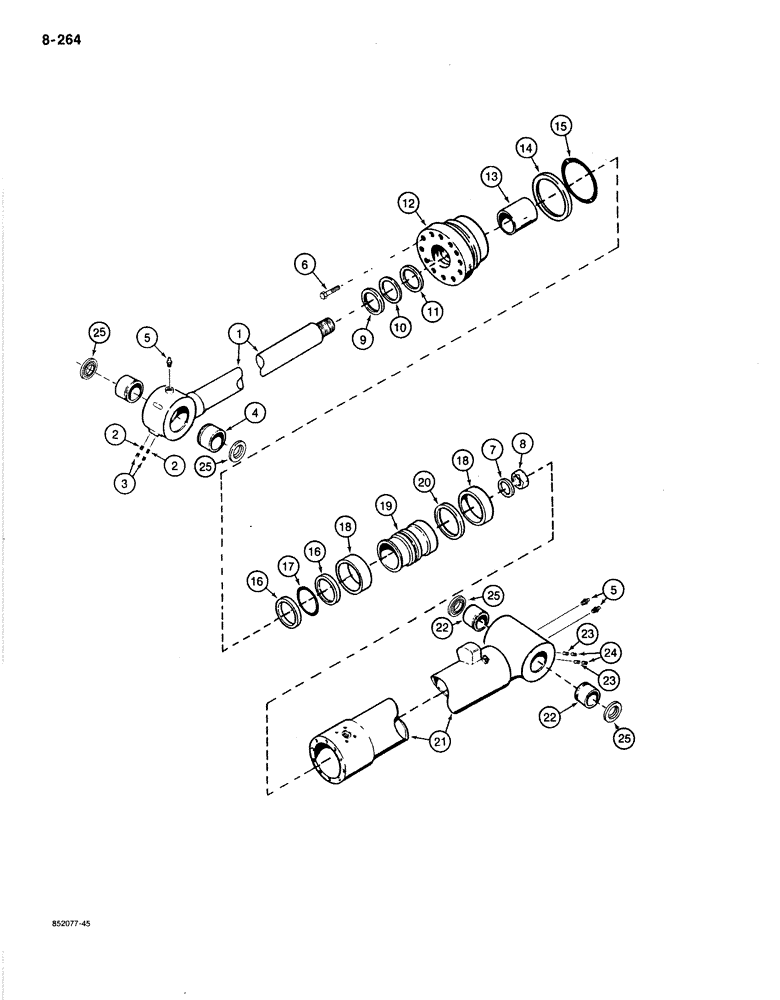

Запчасти Case 1080B (8-264) - TOOL CYLINDER (08) - HYDRAULICS

S956691

CYLINDER

ASSEMBLY - 5-1/2" (140 mm) ID x 37-3/4" (960 mm) stroke, tool, Includes: Refs. 1-25

1шт.

1

S516124

ROD ASSY.

ROD - piston, 3-1/2" (89 mm) diameter, Includes: Refs. 2,-4

1шт.

2

178-56

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set, hex socket, 3/8" -16 NC x 5/8", cone point, inner

2шт.

3

83-610

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set, hex socket, 3/8" -16 NC x 5/8", cup point, outer

2шт.

4

S241666

BUSHING

- piston rod

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

3шт.

6

28-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 8

- hex head, 5/8" -18 NF x 2-1/4", grade 8

10шт.

7

G32653

WASHER

- special

1шт.

8

131-76

LOCK NUT,2"-12

NUT - hex, self-locking, 2" -12 NF, plated

1шт.

G107594

GLAND

ASSEMBLY - cylinder, Includes: Refs. 9-15

1шт.

9

G107598

SCRAPER RING

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G109249

1шт.

10

G109055

SEAL,88.95mm ID x 101.73mm OD x 10.69mm Thk

- U-cup, piston rod, wide

1шт.

Part of Seal Kit, P/N G109249

1шт.

11

G109030

SEAL,88.32mm ID x 104.44mm OD x 4.9mm Thk

- piston rod, narrow

1шт.

Part of Seal Kit, P/N G109249

1шт.

12

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

13

S111813

SLEEVE ASSY

BUSHING - center

1шт.

Part of Seal Kit, P/N G109249

1шт.

14

G109034

BACK-UP RING,135.94mm ID x 145.08mm OD x 1.93mm Thk

BACKUP-RING - Gland O-ring

1шт.

Part of Seal Kit, P/N G109249

1шт.

15

G105183

O-RING,0.188" Thk x 5.375" ID, -356, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G109249

1шт.

16

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, piston, inner O-ring

2шт.

Part of Seal Kit, P/N G109249

1шт.

17

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- piston, inner

1шт.

Part of Seal Kit, P/N G109249

1шт.

18

S108947

RING

- wear, piston

2шт.

Part of Seal Kit, P/N G109249

1шт.

19

S511750

PISTON

- cylinder

1шт.

20

S228606

SEAL

SEAL - piston

1шт.

Part of Seal Kit, P/N G109249

1шт.

21

S617932

TUBE ASSY.,53.03" L

TUBE - cylinder, Includes: Refs. 22-24

1шт.

22

S241666

BUSHING

- tube

2шт.

23

178-56

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set, hex socket, 3/8" -16 NC x 5/8", cone point, inner

2шт.

24

83-610

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set, hex socket, 3/8" -16 NC x 5/8", cup point, outer

2шт.

25

S241665

SEAL

- grease

4шт.

G109249

KIT

- seal, includes Refs. 9, 10, 11, 13, 14, 15, 16, 17, 18 and 20

1шт.
